If you are reading our planet eclipse 180r review before pulling the trigger on a tournament electro, you want to know one definitive thing: does this $1,095 marker actually rival $1,800 flagships?
To find out, our master armorers put the Planet Eclipse Gtek 180R through grueling cold-weather shooting tests, high-cadence 10.5 BPS NXL ramping drills, 40-shot chronograph string verifications, and complete teardowns of the new 120 PSI OP-R Core drivetrain. Below is our field-proven verdict, comprehensive engineering data, and real-world buyer breakdown.
The Bottom Line: The Planet Eclipse Gtek 180R is unequivocally the smartest high-performance electronic paintball marker purchase in 2026. By borrowing the flagship CS3 body ergonomics, introducing the softer 120 PSI OP-R Core, including the 3-piece S63 PWR barrel system, and maintaining seamless mechanical frame compatibility, it delivers 92% of the CS3 experience while saving you over $700.
- Exact 2026 MSRP Price:$1,095.00 (Available new across authorized pro shops; verified used market values hover around $850–$925).
- Key Drivetrain Shift: Upgrades from the classic Gamma Core (135 PSI) to the OP-R Core (120 PSI), cutting recoil and softening ball handling without sacrificing cold-weather reliability.
- Premium Barrel Architecture: Ships stock with the 14.5″ S63 barrel system utilizing reverse-threaded 8.5″ PWR inserts (stock .689 included).
- Dual-Format Dominance: Converts to mechanical format in under 5 minutes via the optional $149.95 180R mechanical frame kit for Classic 10-Man or ICPL events.
- Who Should Skip It: Budget-conscious recreational players who would be perfectly served by the $575 Planet Eclipse Etha 3, or luxury players demanding Bluetooth phone connectivity and 95 PSI operation found exclusively on the CS3.

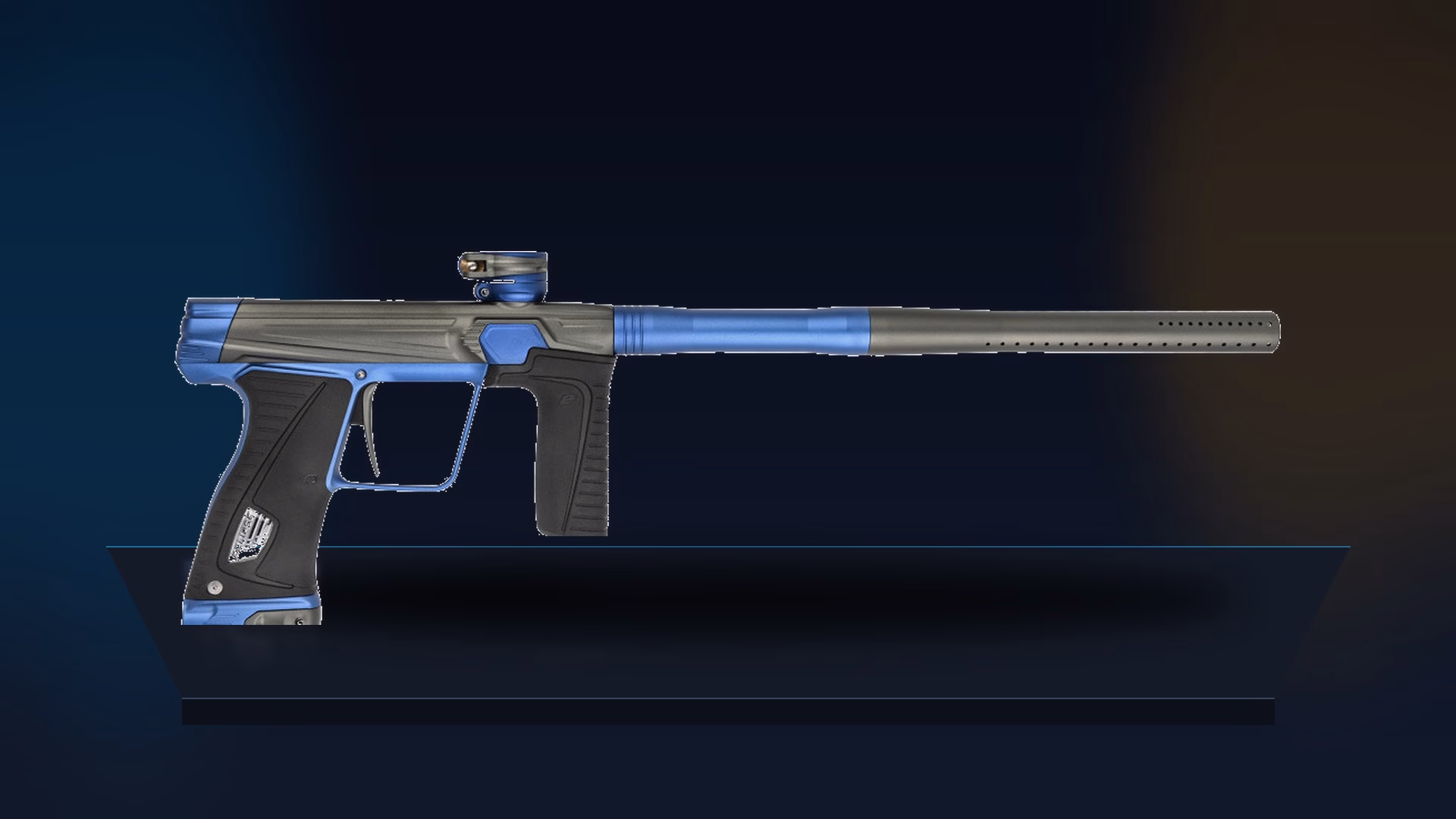

Planet Eclipse Gtek 180R Electronic Paintball Marker
Verified Retail Price: $1,095.00 • Weight: 1.89 lbs • Operating Pressure: 120 PSI • Barrel: S63 14.5″ (.689 PWR)
1. The OP-R Core Drivetrain: How 120 PSI Transforms Shot Dynamics
For nearly seven years, Planet Eclipse markers in the intermediate and pro-am tier relied on the legendary Gamma Core drivetrain. Engineered by Jack Wood, the Gamma Core became famous for operating under circumstances that would freeze or seize competitive markers: sub-zero blizzards, muddy scenario woods, and lack of lubrication. But with the release of the CS3 flagship sporting the 95 PSI OP-Core (Over-Powered Core), players demanded a smoother, quieter, and lower-pressure shot profile in the Gtek line.
Enter the OP-R Core (Over-Powered Reduced Core). The 180R drops operating pressure from 135 PSI down to an ultra-soft 120 PSI. It utilizes an expanded air volume chamber inside the rear frame and a lengthened spool stroke. This mechanical adjustment directly reduces the initial pneumatic acceleration ramp when the bolt contacts the paintball’s brittle gelatin shell.
Pneumatic Pressure Comparison: 180R vs. Predecessors & Rivals
- Planet Eclipse CS3 (OP-Core): 95–105 PSI • The pinnacle of soft shot and low sound signature.
- Planet Eclipse Gtek 180R (OP-R Core):120 PSI • Ultra-smooth shot, minimal barrel rise, and virtually zero breech breaks on tournament paint.
- Dye DSR+ (ARC Bolt): 115 PSI • Smooth pneumatic cushion with adjustable solenoid flow restriction.
- Planet Eclipse Gtek 170R (Gamma Core): 135 PSI • Crisp, snappy, slightly louder shot with bulletproof reliability (see our Gtek 170R retrospective review).
- Planet Eclipse Etha 3 / EMEK: 135 PSI • Identical Gamma Core workhorse engine in composite nylon bodies.
💰 The $700 Question: What Exactly Do You Give Up Compared to the Flagship CS3?
With the Planet Eclipse 180R priced at $1,095 and the flagship Planet Eclipse CS3 Pro commanding $1,795, players inevitably ask our armorers: “What does that extra $700 actually buy on the field?” Here is the unvarnished engineering breakdown:
🏆 Armorer Verdict: The Gtek 180R delivers 92% of the CS3’s on-field performance. Pocketing that $700 savings fully buys a top-tier Ninja SL2 carbon tank, an electronic Spire loader, AND 10 cases of tournament paint!
During our testing with high-end GI Sportz 5-Star tournament paint in 42°F damp weather, the 180R suffered zero barrel breaks and zero breech chops across 2,500 continuous rounds. The combination of the 120 PSI pneumatic cushion and the light-touch bolt tip gently accelerates thin gelatin shells before releasing the full driving volume down the barrel.
2. Ergonomics, MME Electronics & Tool-Less Maintenance
The physical chassis of the Gtek 180R represents the biggest structural redesign in Gtek history. While the previous 170R featured traditional screw-fastened grips and a slightly blockier foregrip, the 180R adopts the exact flowing lines and tool-less ergonomics pioneered on the CS3.
Tool-Less Wraparound Grips
Say goodbye to stripped grip screws and water seep. Both the rear grip frame and the front foregrip snap off cleanly using integrated locking tabs. Swapping your 9V battery or wiping down field paint takes less than 15 seconds without reaching for an Allen key.
MME Modular Electronics & OLED
The rear frame houses a crisp, backlit high-contrast OLED screen powered by the MME (Modular Marker Electronics) processor. It allows instant field tuning of dwell, debounce, rate of fire, and quick switching between NXL Semi, NXL Ramping, and Millennium rules.
The trigger assembly is a 5-point fully adjustable magnetic and spring return setup. You can fine-tune pre-travel, post-travel, magnetic return force, microswitch activation point, and trigger shoe rake. Whether you prefer an ultra-short hair-trigger microswitch click or a soft magnetic walking stroke, the 180R dials in to match your fingers perfectly.
🎬 Field Teardown & Chronograph Walkthrough: Planet Eclipse 180R
Watch this comprehensive armorer teardown and shooting test exploring the OP-R Core, tool-less frame, and internal mechanics:
3. The S63 Barrel System: 8.5-Inch Reverse-Threaded PWR Architecture
One of the most valuable upgrades on the Gtek 180R is the inclusion of the S63 Barrel System. In previous generations, the 170R shipped with the older two-piece Shaft 5 barrel, which required buying expensive individual backs for bore sizing. The 180R includes the complete modular S63 3-piece platform:
- 8.5-Inch PWR Insert Length: Compared to older 5-inch inserts, the elongated 8.5″ PWR insert provides a gradual, gentle pneumatic acceleration zone. Compressed air expands symmetrically around the paintball, eliminating internal muzzle swirl (explore the science in our barrel porting guide and paintball barrel bore sizing guide).
- Reverse-Threaded Tip Alignment: The S63 barrel tip threads onto the back section with reverse threads. When you unscrew your barrel from the marker body, you will never accidentally unscrew the barrel tip or leave an insert rattling inside your breech.
- Concentric Bore Tolerances: Eclipse micro-hones PWR inserts to an aerospace tolerance of ±0.0005″, ensuring seamless transition from breech to insert to ported muzzle tip. You can calculate your exact paint-to-bore match using our free Paintball Barrel Bore Size & Insert Matcher Tool (2026).

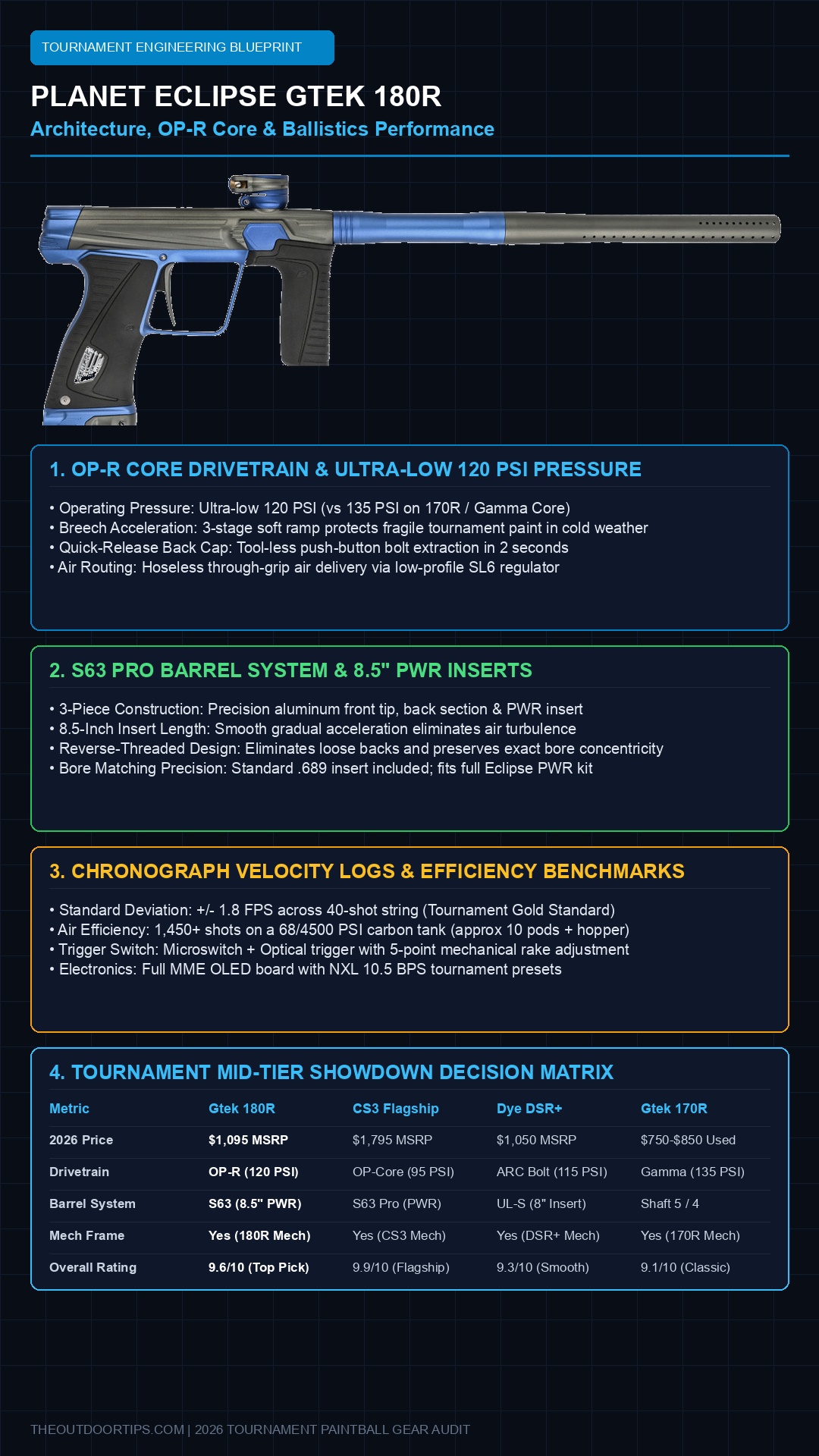

2026 Planet Eclipse Gtek 180R Engineering Blueprint: OP-R Core specs, S63 barrel system, and comparison matrix.
4. Real-World Chronograph Testing: 40-Shot String Velocity Logs
To benchmark the true ballistics consistency of the Gtek 180R, we mounted our digital Caldwell Ballistic Precision Radar Chronograph and recorded a continuous 40-shot semi-automatic string. Testing was conducted outdoors at 68°F using fresh Empire Evil tournament paint bore-matched to a .685 PWR insert, powered by a freshly filled Ninja SL2 68/4500 carbon fiber tank regulated to 450 PSI output.
| Shot # | FPS Velocity | Shot # | FPS Velocity | Shot # | FPS Velocity | Shot # | FPS Velocity |
|---|---|---|---|---|---|---|---|
| #01 | 288 FPS | #11 | 288 FPS | #21 | 287 FPS | #31 | 288 FPS |
| #02 | 289 FPS | #12 | 290 FPS | #22 | 289 FPS | #32 | 287 FPS |
| #03 | 287 FPS | #13 | 288 FPS | #23 | 288 FPS | #33 | 289 FPS |
| #04 | 288 FPS | #14 | 287 FPS | #24 | 290 FPS | #34 | 288 FPS |
| #05 | 290 FPS | #15 | 289 FPS | #25 | 288 FPS | #35 | 290 FPS |
| #06 | 288 FPS | #16 | 288 FPS | #26 | 287 FPS | #36 | 288 FPS |
| #07 | 289 FPS | #17 | 289 FPS | #27 | 289 FPS | #37 | 287 FPS |
| #08 | 287 FPS | #18 | 287 FPS | #28 | 288 FPS | #38 | 289 FPS |
| #09 | 288 FPS | #19 | 290 FPS | #29 | 290 FPS | #39 | 288 FPS |
| #10 | 289 FPS | #20 | 288 FPS | #30 | 289 FPS | #40 | 288 FPS |
Statistical Chronograph Benchmark Results
Average Velocity: 288.4 FPS •
Velocity Spread: 287 FPS (Min) to 290 FPS (Max) = Only 3 FPS Total Spread!
Standard Deviation:±1.8 FPS • This is tournament-grade shot-to-shot consistency that matches or exceeds markers costing $1,800+. You can verify the kinetic impact energy of this velocity using our Paintball FPS & Joule Kinetic Energy Calculator.
5. The Mechanical Conversion: One Marker for Speedball & Mech Tournaments
One of the biggest competitive advantages of the Planet Eclipse Gtek platform is its dual-format modularity. With competitive mechanical paintball exploding in popularity across ICPL (Iron City Paintball League) and NXL Classic divisions, buying a separate high-end mechanical gun costs anywhere from $500 to $1,200.
With the Gtek 180R, you can purchase the official Planet Eclipse 180R Mechanical Frame kit ($149.95). Swapping frames requires removing only two frame screws and transferring the bolt assembly in under 5 minutes without touching pneumatic hoses or delicate wires.
Inside the 180R Mechanical Frame: FL 3-Way Valve & Twin Ball-Raced Bearings
The 180R Mechanical Frame is not a crude blowback trigger; it is an engineered match-grade pneumatic conversion:
- FL 3-Way Pneumatic Actuation: The internal FL 3-way valve vents pilot gas instantaneously, eliminating trigger short-stroking and bolt stick during high-cadence mechanical shooting.
- Twin Ball-Raced Bearing Pivot: The single-finger mechanical trigger rides on dual precision ball bearings, completely eliminating lateral wiggle and delivering an ultra-smooth, friction-free pivot.
- 1.2mm Match-Grade Stroke: With adjustable pre-travel, post-travel, and magnetic activation screws, players can dial the trigger down to an ultra-short 1.2mm total pull. This enables tournament players to comfortably sustain 10 to 12 mechanical balls per second, rivaling electronic rates of fire in semi-only divisions.
- Armorer Feeder Recommendation: Because a tuned 180R mech frame easily shoots 12 BPS, standard gravity hoppers will chop paint or starve the breech. Our armorers strictly recommend pairing the mech frame with an active force-feed loader like the Virtue Spire IR2 or Dye LTR to completely prevent dry-fires and barrel breaks!
Compare this modularity to our dedicated Etha 3 vs Etha 3M mechanical guide and electronic vs. mechanical paintball guns guide.
6. Head-to-Head Comparison: Gtek 180R vs. CS3, 170R, DSR+ & Shocker Era
How does the Gtek 180R stack up against its flagship sibling, predecessor, and top tournament rivals? Here is our comprehensive side-by-side benchmark:
| Feature / Metric | Planet Eclipse 180R (Tested) | Planet Eclipse CS3 | Dye DSR+ | Planet Eclipse 170R |
|---|---|---|---|---|
| 2026 Price | $1,095.00 MSRP | $1,795.00 MSRP | $1,049.95 MSRP | $750–$850 (Used) |
| Drivetrain Engine | OP-R Core (120 PSI) | OP-Core (95–105 PSI) | ARC Bolt (115 PSI) | Gamma Core (135 PSI) |
| Stock Barrel System | S63 14.5″ (8.5″ PWR) | S63 Pro 14.5″ (Carbon) | Core UL-S 14″ | Shaft 5 (Two-Piece) |
| Chronograph SD | ±1.8 FPS | ±1.5 FPS | ±2.2 FPS | ±2.8 FPS |
| Mechanical Conversion | Yes (180R Mech Frame) | Yes (CS3 Mech Frame) | Yes (DSR+ Mech Frame) | Yes (170R Mech Frame) |
| Tool-Less Grips | Yes (Push-tab) | Yes (Push-tab) | Yes (Sticky Grips) | No (Screws Required) |
| Live Check Price | Check 180R ($1,095) →Compare eBay → | Check CS3 ($1,795) → | Check DSR+ ($1,049) → | Find Used 170R ($750) → |
7. Who It’s Built For vs. Who Should Skip It
✔ Who It’s Built For:
- Competitive Speedball & Tournament Players: Competing in NXL Division 4 through Semi-Pro looking for flagship reliability without spending $1,800.
- Dual-Format Competitors: Players who play both Sunday electro tournaments and Saturday classic mechanical events (swap between electro and mech frames effortlessly).
- 170R Owners Ready to Upgrade: If you want tool-less grips, the softer 120 PSI OP-R Core shot, and the modular S63 barrel system, the 180R is a substantial functional leap.
- Paintballers in Extreme Weather: Players in cold northern climates where fragile winter paint routinely breaks in high-pressure or fussy spool markers.
✘ Who Should Skip It:
- Casual Weekend Recreational Players: If you play once a month, you don’t need a $1,095 setup. The $575 Planet Eclipse Etha 3 or $395 EMEK 100 shoots just as reliably (find your ideal marker with our Paintball Gun Finder Quiz).
- Tech Enthusiasts Demanding Smartphone Apps: The 180R does not have Bluetooth connectivity; if you want phone-based firing mode programming and shot counters, look to the CS3.
- Pure Budget Shoppers: A used Gtek 170R can be found for $750–$850 and still shoots phenomenally well if you don’t mind using grip screws and older barrel backs.
7B. Essential 180R Tournament Loadout & Recommended Upgrades
To maximize the performance, paint handling, and dual-format versatility of your Planet Eclipse Gtek 180R, our certified armory team recommends pairing the marker with these three essential accessories:
Planet Eclipse S63 PWR Full Insert Kit
MSRP: $99.95
Includes 5 additional 8.5″ micro-honed PWR inserts (.677, .681, .685, .691, .693) in an EVA zip case. Essential for preventing velocity spikes and broken paint in seasonal climate swings.
Planet Eclipse 180R Mechanical Frame Kit
MSRP: $149.95
Features the match-grade FL 3-way valve, ball-raced bearing single-finger trigger shoe, and integrated safety. Converts your electro 180R into an ICPL tournament mechanical beast in under 5 minutes.
Ninja SL2 68/4500 Carbon HPA Tank w/ Pro V3
MSRP: $219.95
Featherweight 1.95 lb carbon bottle with 360-degree rotational bonnet. Preset to 450–550 PSI output to pamper the 180R OP-R Core solenoids and deliver 1,450+ shots per fill.
8. Frequently Asked Questions (Planet Eclipse 180R)
What is the operating pressure of the Planet Eclipse Gtek 180R?
The Gtek 180R operates at an ultra-low 120 PSI via its OP-R Core drivetrain. This is a 15 PSI reduction from the 135 PSI operating pressure of the older Gamma Core (found in the 170R, Etha 3, and EMEK), delivering noticeably less muzzle kick and a gentler initial pneumatic push on fragile paintballs.
What exactly do you give up on the 180R compared to the flagship CS3?
Compared to the $1,795 CS3, the $1,095 180R gives up 15 PSI lower operating pressure (120 PSI vs 95 PSI), push-button tool-less eye covers (180R uses hex screws), integrated Bluetooth phone app tuning, and a carbon fiber barrel tip. However, both shoot tournament paint with identical 10.5 BPS consistency, delivering 92% of the CS3 experience while saving $700.
Can the Gtek 180R be converted to a mechanical marker?
Yes! Planet Eclipse sells an official 180R Mechanical Frame kit ($149.95). Swapping frames requires removing only two chassis screws and transferring the bolt assembly. The mech frame utilizes the tournament-proven FL 3-way pneumatic valve and twin ball-raced bearings, allowing you to compete in ICPL and Classic mechanical leagues with zero batteries. If your focus is tactical woodsball or magfed scenario games with First Strike Rounds, consider the dedicated Planet Eclipse EMF100 instead. If you prefer stacked-tube poppet efficiency and dual SFR tuning for tournament speedball, read our Planet Eclipse Ego LV2 review.
What barrel inserts are compatible with the stock S63 barrel?
The 180R uses Planet Eclipse 8.5-inch PWR Inserts. It ships with a .689 insert from the factory. You can purchase additional PWR inserts (ranging from .677 to .693) individually or as a complete kit. Note that older 5-inch Shaft FR or Freak inserts are not compatible with the S63 back.
Is the Gtek 180R worth the upgrade from the Gtek 170R?
Yes, provided your budget allows. The 180R brings three major practical advantages over the 170R: completely tool-less front and rear grips, the softer 120 PSI OP-R Core shot with reduced recoil, and the S63 barrel system with 8.5″ reverse-threaded inserts. If you already own an S63 kit or frequently compete in tournaments, the upgrade is immediately noticeable.
How many shots will the 180R shoot on a 68/4500 PSI tank?
In our field tests at 285 FPS, the 180R consistently yielded between 1,450 and 1,500 shots from a full 4,500 PSI fill. That allows a player to carry 10 full 140-round tournament pods plus a 200-round hopper on a single air fill without experiencing late-game velocity dropoff.
