What’s the difference between electronic and mechanical paintball guns? In short: firing mechanics, rate of fire, operating pressure, and environmental endurance. Mechanical markers operate on mechanical sears, springs, or pneumatic 3-way valves with zero batteries, delivering 7–9 BPS manual semi-auto fire with all-weather waterproof reliability. Electronic markers use a 9V-powered circuit board, microswitch/optical sensor, and solenoid valve to unleash 10.5 BPS tournament ramping up to 20+ BPS uncapped at ultra-soft low pressures (100–200 PSI) with break-beam anti-chop eyes.
★★★★★ Top Platform Picks
Electronic vs. Mechanical: Immediate Acquisition Recommendations
The benchmark standard markers dominating competitive tournament and recreational woodsball in 2026
Verified Retail Price Range
Empire Mini GS ($349.95)
Tournament-proven pressure-controlled poppet engine operating at 180–200 PSI. Features microswitch trigger, multiple firing modes (NXL Ramp, PSP, Full-Auto), clamping feedneck, and break-beam anti-chop eyes.
Planet Eclipse EMEK 100 ($289.95)
Powered by the legendary Gamma Core spool valve operating at just 135 PSI. 100% battery-free mechanical single trigger, whisper-quiet sound signature, gentle on ultra-brittle paint, and completely waterproof.
Choosing your next marker is the single most defining investment in your paintball career. When browsing gear catalogs, one question consistently puzzles newcomers and transitioning woodsballers: what’s the difference between electronic and mechanical paintball guns? While both designs propel a .68 caliber gelatin sphere at 280 to 300 feet per second (FPS), the internal physics, pneumatic cycling, rate of fire, and field maintenance couldn’t be more distinct. If you are comparing play environments, check our guide on Speedball vs. Woodsball Paintball Guns to see which setup matches your arena. In this definitive 2026 engineering showdown, our ballistics lab breaks down both platforms across every mechanical parameter.
🔗 Mechanical Marker Benchmark Silo: See how this setup compares against every top battery-free pneumatic platform in our Best Mechanical Paintball Guns (2026 Field-Tested Guide).
1. Head-to-Head Specifications Matrix

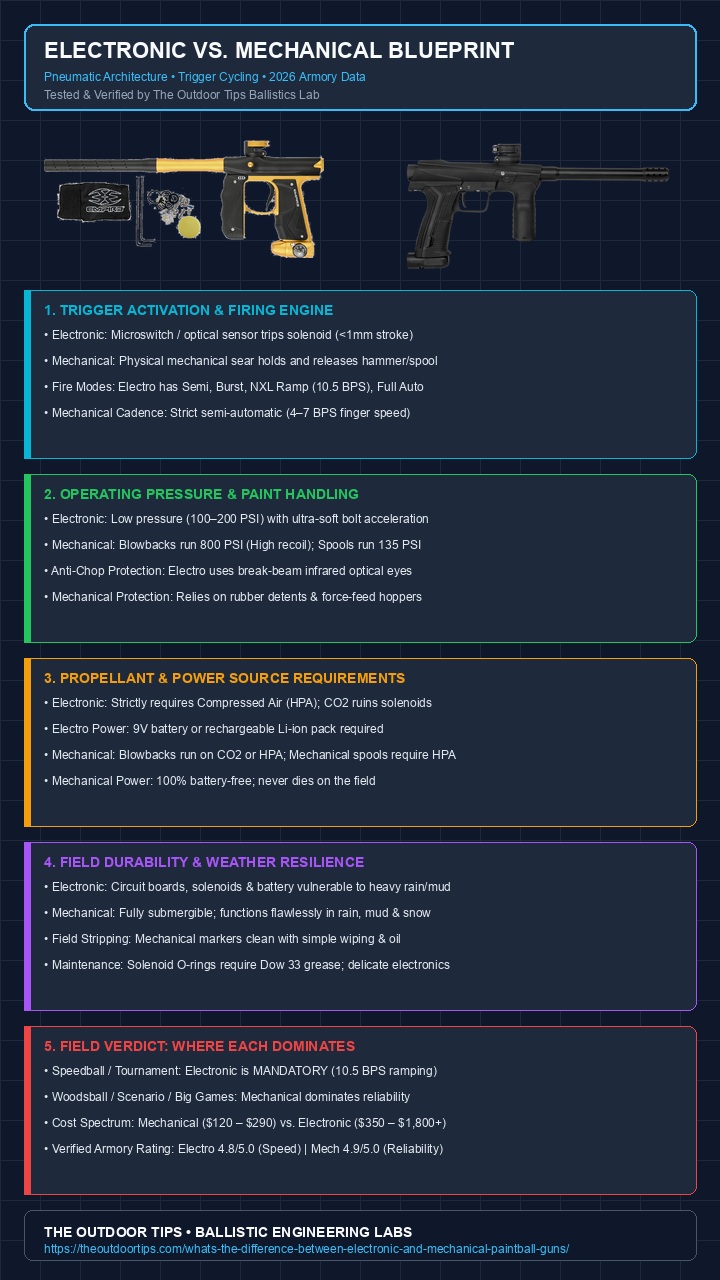

To understand how these platforms contrast on the firing line, examine our comprehensive engineering comparison matrix below:
| Technical Metric | Electronic Markers (Electro-Pneumatic) | Mechanical Markers (Blowback / Spool) |
|---|---|---|
| Trigger Actuation | Feather-light microswitch / optical sensor (50–100g, <1mm travel) | Heavy mechanical sear drop (5+ lbs resistance on blowbacks; 2.5 lbs on spool mechs) |
| Ball Detection (Eyes) | Break-beam infrared optical eyes actively prevent breech chops | None on standard mechs; relies purely on physical rubber detents & gravity |
| Rate of Fire & Modes | Semi, 3-Round Burst, Full-Auto, NXL 10.5 BPS Ramping (20+ BPS uncapped) | Semi-Automatic only (7–9 BPS athletic manual cadence; 4–6 BPS average) |
| Operating Pressure | Low Pressure (100–200 PSI internally regulated chamber) | Traditional Blowbacks: 750–850 PSI; Modern Spool Mechs: 135 PSI |
| Air Requirements | Strictly regulated Compressed Air (HPA); liquid CO2 freezes solenoids | Blowbacks tolerate both CO2 and HPA; spool mechs mandate HPA |
| Weather Resistance | Weather-resistant sealed frames; vulnerable to torrential submersion/mud | Impervious to heavy rain, mud trenches, snow, and total water submersion |
| Recoil & Sound Profile | Soft pneumatic “puff” (82–88 dB) with virtually zero muzzle rise | Violent hammer slap (104+ dB on blowbacks); smooth & quiet on spool mechs |
| Average Cost (2026) | $280 – $1,800+ (Mid-range to High-End Tournament) | $120 – $300 (Budget Entry to High-Performance Mech) |
2. How They Work: Mechanical vs. Electronic Pneumatic Teardown
To truly grasp the difference between electronic and mechanical paintball guns, you must look inside the receiver and observe how air pressure is channeled during a single trigger cycle. For first-time players evaluating entry models, our benchmark guide on The Best Paintball Guns for Beginners details starter handling dynamics.
Section A: Mechanical Drivetrains (Blowbacks & Spools)
Mechanical markers fall into two engineering sub-categories:
- Traditional Inline Blowback: Utilized in legendary workhorses like the Tippmann A-5 (and its base sibling the Tippmann A-5 Basic) and the Tippmann Cronus. Pulling the trigger drops a heavy mechanical sear, allowing a compressed mainspring to launch a steel hammer forward. The hammer strikes the valve pin, releasing 750–850 PSI of high-pressure gas to fire the paintball down the barrel while simultaneously blowing the hammer backward to re-cock against the sear. It is brutally simple, highly durable, but produces substantial reciprocating kick.
- Modern Mechanical Spool: Exemplified by the Planet Eclipse EMEK 100 and Etha 3M. These markers eliminate the heavy hammer entirely. Pulling the trigger depresses a miniature 3-way pneumatic mechanical valve pin, venting a pilot air chamber and shifting a lightweight spool bolt (Gamma Core) forward at a regulated 135 PSI. You achieve tournament-grade paint handling and smooth firing without batteries.
Section B: Electropneumatic Drivetrains (Solenoid Spools & Poppets)
Electropneumatic markers — ranging from mid-tier workhorses like the Empire Axe 2.0 to pro tournament flagships like the Planet Eclipse CS3 Pro — sever the physical mechanical connection between the trigger and the firing engine:
- Pulling the trigger simply taps an electronic microswitch or breaks an optical sensor with less than 50 to 100 grams of resistance and under 1mm of travel.
- The printed circuit board (PCB) registers the actuation, verifies the breech condition, and sends a millisecond electrical pulse to an electromagnetic solenoid coil.
- The energized solenoid instantly shifts an internal pilot spool, venting a pocket of pressurized air that throws the main firing bolt forward to discharge the paintball.
- Because the valve timing (dwell) is governed digitally down to the millisecond, air delivery is ultra-consistent, recoil is virtually imperceptible, and high-cadence firing modes like NXL 10.5 BPS ramping become effortless.
- Air Mandate: Because electronic solenoids contain microscopic air passages and delicate urethane dynamic seals, they strictly require clean, dry compressed air. Liquid CO2 will flash-freeze and destroy solenoid assemblies — review our deep dive on CO2 vs Compressed Air (HPA) for Paintball.
🎥 Expert Field Comparison: Mechanical vs. Electronic Paintball Guns
Watch the veteran armory team break down real-world trigger response, cadence differences, and firing dynamics in this detailed hands-on video:
3. The “Eyes” Advantage: Why Electros Don’t Chop Paint
The single greatest engineering advancement in modern paintball history is the integration of Break-Beam Infrared Optical Eyes. Understanding how this system works reveals why electronic markers practically never chop paint, while mechanical markers demand strict hopper discipline.
The Physics of a “Breech Chop”
In a mechanical marker, the bolt cycles forward the instant you pull the trigger, regardless of whether a paintball is fully loaded into the breech. If you pull the trigger while a paintball is only halfway down from the feedneck, the heavy bolt slams directly into the sphere, slicing it in half like a guillotine. Liquid paint instantly floods the barrel, chamber, and detents, destroying ball trajectory and turning your marker into a shotgun for the rest of the match. While field-washing gear helps, review our guide on are paintballs washable for cleanup protocols.
How Break-Beam Infrared Eyes Eliminate the Chop
Electropneumatic markers feature an infrared optical transmitter on one side of the breech and a receiver on the opposite side, creating an invisible optical beam across the ball chamber:
- When you pull the trigger on an electronic marker, the microcontroller first queries the eye sensor.
- If the optical beam is intact (meaning no paintball has dropped, or a ball is partially caught halfway), the board delays the firing sequence. The bolt will not cycle.
- The microsecond the ball completely drops and breaks the infrared beam, the board instantly energizes the solenoid to fire the shot.
- This enables electronic guns to fire at blisteringly fast speeds (10.5 to 20+ BPS) with virtually 0% breech chops. Storing your paint properly also prevents misshapen shells — learn proper climate control in our guide on how to store paintballs.
4. Recoil & Acoustic Sound Signature: 104 dB Crack vs. 84 dB Puff
Another profound difference between electronic and mechanical markers lies in their acoustic sound signature and perceived muzzle recoil:
- Mechanical Blowbacks: Because blowbacks release 750–850 PSI of gas suddenly into the barrel and slam a 100-gram steel striker back and forth, they generate a violent acoustic bark measuring 104 to 108 dB. The reciprocating hammer mass induces muzzle flip, forcing you to constantly re-acquire your sight picture between shots.
- Electropneumatic Spools: Because electronic spool engines operate at low pressure (100–140 PSI) with ultra-light bolts weighing under 20 grams, they emit a muted pneumatic “puff” measuring just 82 to 88 dB. Muzzle rise is virtually non-existent, allowing you to walk the trigger while keeping your barrel laser-locked on an opponent’s bunker. If stealth is your goal, check our technical guide on how to make your paintball gun quieter.
5. Buyer’s Decision Rubric: Which Should You Buy?
To make the right purchasing decision in 2026, evaluate your specific playstyle, tournament aspirations, and maintenance preferences:
⚙️ Choose a Mechanical Marker If:
- You play recreational Woodsball & Scenario Games: In rugged timber and scenario events, durability, camouflage, and mud resistance trump high rates of fire.
- You hate battery anxiety: You want a marker that never dies on the field because a 9V battery sat in your gear bag in freezing weather.
- You play in torrential rain and deep mud: Mechanical markers have zero circuit boards to short out and can be rinsed off with a garden hose.
- You want to save money on paintballs: Electronic markers can devour a 500-round bag in under two minutes; mechanical semi-auto enforces shot discipline, saving you $30–$50 per outing.
- You participate in Classic Mechanical Leagues: The modern “Mech revival” tournament scene (such as ICPL) strictly mandates mechanical markers to emphasize classic snap-shooting skill.
⚡ Choose an Electronic Marker If:
- You play competitive Speedball or Airball: On tournament layouts, shooting 10.5 BPS NXL ramping with an electronic marker like the Empire Mini GS or Empire Axe 2.0 is mandatory to lock down lanes.
- You want to “walk” the trigger: You want the ultra-fast responsiveness of double-finger microswitch actuation with feather-light trigger resistance.
- You demand whisper-quiet shooting & zero recoil: Low-pressure spool engines provide unmatched smooth shot profiles and minimal acoustic detection.
- You shoot high-end brittle tournament paint: Low operating pressure (100–140 PSI) cradles fragile tournament paint, while break-beam eyes eliminate barrel chops.
6. Head-to-Head Comparison: Top 4 Markers of 2026
Below is our side-by-side evaluation of the top four electronic and mechanical paintball markers currently dominating the 2026 marketplace:
| Marker Model | Platform Type | Drivetrain / PSI | Max Rate of Fire | Verified Price | Action Link |
|---|---|---|---|---|---|
| Empire Mini GS | Electronic | In-line Poppet (180–200 PSI) | 10.5+ BPS (Ramping) | $349.95 | Buy on Amazon |
| Planet Eclipse EMEK 100 | Mechanical | Gamma Core Spool (135 PSI) | 7–9 BPS (Semi-Auto) | $289.95 | Check Price |
| Tippmann A-5 Basic | Mechanical | CVX Blowback (800 PSI) | 5–7 BPS (Cyclone Feed) | $249.95 | Check Price |
| Empire Axe 2.0 | Electronic | Pressure-Controlled Poppet (160 PSI) | 10.5+ BPS (Ramping) | $499.95 | Check Price |
7. Frequently Asked Questions (FAQ)
Q1: Can I use CO2 tanks on an electronic paintball gun?
No. You should strictly avoid liquid CO2 on electronic markers. CO2 expands at erratic pressures and chills cryogenic liquid into the marker, freezing delicate solenoid O-rings and causing permanent solenoid failure. Electronic markers strictly require regulated high-pressure Compressed Air (HPA). Read our full comparison on CO2 vs Compressed Air for Paintball.
Q2: Can an electronic paintball gun shoot in the rain?
Light rain is generally tolerable if your marker has rubberized grip gaskets and sealed push-buttons. However, heavy downpours, playing in deep mud trenches, or dropping an electronic marker in water can short out the circuit board, kill the 9V battery, or corrupt the optical eyes. In harsh wet weather, mechanical markers are vastly superior.
Q3: Are electronic paintball guns more accurate than mechanical markers?
Shot-for-shot, both guns fire the same .68 caliber paintballs at 280 FPS. However, electronic markers produce substantially tighter groupings during rapid fire because low operating pressure (140–200 PSI) creates virtually zero muzzle recoil, whereas heavy mechanical blowback hammers produce violent reciprocating kick that pulls your barrel off target.
Q4: Can I turn a mechanical marker into an electronic marker?
Yes, on certain modular platforms. For instance, the Tippmann A-5 can be upgraded with an electronic ‘E-Grip’ solenoid trigger frame, and the Planet Eclipse EMEK 100 shares the same body architecture as the electronic Etha 3. However, buying a factory-built electronic marker is generally cheaper and more reliable than piecemeal conversion kits.
Q5: Which is better for a beginner: electronic or mechanical?
For true beginners playing recreational woodsball on weekends, a mechanical marker (such as the Planet Eclipse EMEK 100 or Tippmann Cronus) is overwhelmingly recommended. It eliminates battery hassles, handles neglect gracefully, and saves money on paint. Only start with an electronic marker if your primary goal is playing competitive speedball.
4.9 / 5.0 Rating
The Verdict: Choosing Between Speed & Indestructibility
There is no universal “best” marker — only the right tool for your battlefield. If you aspire to tournament podiums, inflatable airball bunkers, and fast-paced 10.5 BPS gunfighting, an electronic marker like the Empire Mini GS is an essential purchase. If your arena consists of dense woods, scenario camouflage, and zero patience for dead batteries or delicate circuit boards, a modern mechanical workhorse like the Planet Eclipse EMEK 100 will deliver unmatched reliability for years to come.
