Gamma Core Drivetrain • 135 PSI Operating Pressure • Hoseless Ergonomics

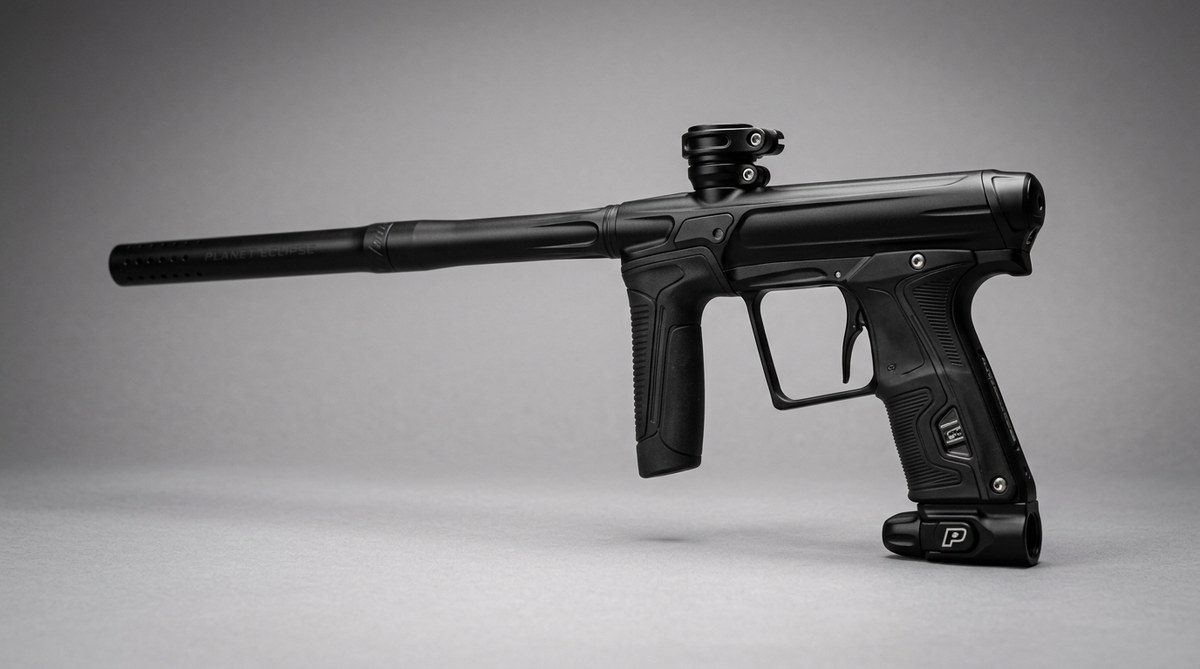

Executive Field Takeaway: Planet Eclipse Gtek 170R Review
In our long-term field testing, the Planet Eclipse Gtek 170R remains the benchmark mid-to-high-end electronic paintball marker. Powered by the legendary Gamma Core spool valve drivetrain operating at a gentle 135 PSI, the 170R delivers near-bulletproof reliability, shooting brittle tournament paint in sub-zero snow or blistering desert heat without breech chops. Upgrading from the original 160R and entry-level composite platforms, the 170R features a completely hoseless aluminum air transfer design, a rear-facing OLED programming display, toolless bolt and battery access, and a low-rise clamping feedneck. While newer flagship models like the 180R exist, the 170R delivers 95% of tournament-grade performance at an unbeatable price point in the secondary and retail market.
Gamma Core • 135 PSI Spool
Full Aluminum • Hoseless Routing
Heads-Up Screen • NXL 10.5 Ramp
HPA Only (CO2 Strictly Forbidden)
When Planet Eclipse introduced the Gtek platform, their goal was ambitious: take the rugged, unshakeable operating mechanics of their high-end tournament flagships and engineer them into a workhorse mid-range marker that never fails. The Planet Eclipse Gtek 170R represents the pinnacle of that design evolution. By eliminating external air hoses, encasing the platform in precision-machined 6061-T6 aircraft aluminum, integrating a heads-up OLED display into the grip frame, and refining the legendary Gamma Core drivetrain to operate at an ultra-low 135 PSI, the 170R established itself as one of the most successful mid-tier electronic markers in paintball history.
However, with newer platforms like the Etha 3 entering the sub-$550 market and the flagship Gtek 180R commanding premium shelves, many serious tournament and woodsball players ask: is the Gtek 170R still worth buying in 2026? How does it actually perform on the field under pressure? In this exhaustive, real-world technical review, we evaluate every engineering component of the Gtek 170R—from spool valve fluid dynamics and pneumatic chamber volumes to trigger microswitch mechanics, air efficiency, and cold-weather paint handling.

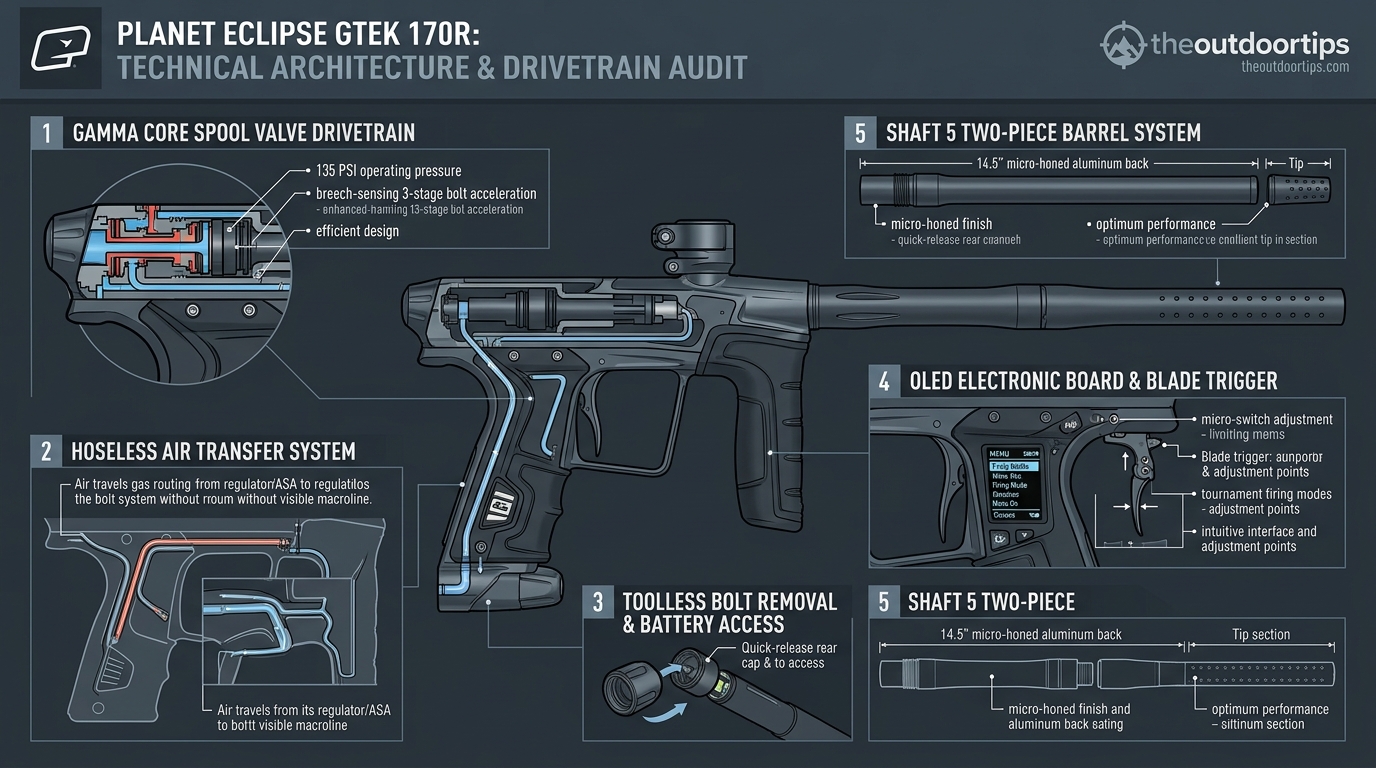

Key Engineering Specifications: Planet Eclipse Gtek 170R
| Specification Parameter | Technical Measurement / Design Architecture | Field Impact & Player Advantage |
|---|---|---|
| Internal Drivetrain | Gamma Core Spool Valve (Second Generation) | 3-stage bolt acceleration prevents breech chops; zero mechanical bolt bounce. |
| Operating Pressure | 135 PSI (Regulated via Internal SL6) | Ultra-gentle on brittle tournament paint; quiet sound signature and low recoil. |
| Air Transfer Architecture | 100% Hoseless Internal Routing | Internal gas transfer from POPS ASA through grip frame; no macroline to burst or snag. |
| Body Construction | Full CNC 6061-T6 Aircraft Billet Aluminum | Rigid, scratch-resistant monolithic metal body without composite flex. |
| Electronics & Display | Rear-Mounted High-Contrast OLED Screen | Intuitive menu navigation for dwell, ROF caps, debouncing, and tournament firing modes. |
| Barrel System | Shaft 5 Two-Piece Micro-Honed (14.5″ Stock) | Cocker threaded, reverse-threaded back; exceptional acoustic dampening and precision. |
| Toolless Access | Bolt, Eye Covers, Detents, Battery Console | Complete servicing between tournament points in under 60 seconds with zero hex keys. |
| Mechanical Variant | M170R Mechanical Frame (Separate SKU / Kit) | Swappable mechanical trigger frame for classic mechanical woodsball and ICC tournaments. |
1. Drivetrain Engineering: The Gamma Core at 135 PSI
The beating heart of the Gtek 170R is Jack Wood’s masterpiece: the second-generation Gamma Core drivetrain. While many modern spool valves rely on electronic solenoids to directly control every stage of bolt movement, the Gamma Core utilizes a pneumatic system that decouples bolt acceleration from the firing valve, operating at a remarkably efficient 135 PSI.
Here is how the pneumatic cycle functions during live fire:
The 3-Stage Breech-Sensing Acceleration Sequence
- Stage 1 (Gentle Initial Takeoff): When the trigger trips the microswitch, the SMC solenoid vents air from the rear bolt sail. The bolt begins its forward stroke propelled by an initial low-force pneumatic differential. This stage accelerates the bolt at low speed, gently contacting the rear of the paintball seated in the breech.
- Stage 2 (Breech Sensing & Stalling Safety): If a paintball has misfed, is oversized from moisture (as analyzed in our guide on are paintballs washable?), or is partially lodged in the feed stack, the bolt simply stalls against the ball without exerting enough force to crush the shell. There is zero bolt bounce and zero ball chopping.
- Stage 3 (High-Flow Gas Release & Valve Shut-Off): Once the bolt fully seals into the barrel inlet o-ring, it exposes the main firing chamber ports. The internal spool valve snaps open, releasing the 135 PSI air charge down the barrel to propel the paintball at 280–300 FPS. Instantly, an independent shut-off spool cuts off the air supply from the inline regulator, ensuring that zero excess air is wasted down the barrel.
This independent shut-off mechanism gives the Gtek 170R exceptional air efficiency. From a standard 68 ci / 4500 PSI carbon fiber HPA tank filled to 4000 PSI, the 170R consistently yields 1,100 to 1,250 shots before dropping off velocity. As explored in our primer on how to refill a paintball tank?, running a marker this efficient means you can easily play full scenario points or high-volume X-Ball points without running dry on air.
2. Hoseless Ergonomics vs. The Original 160R & Etha Platforms

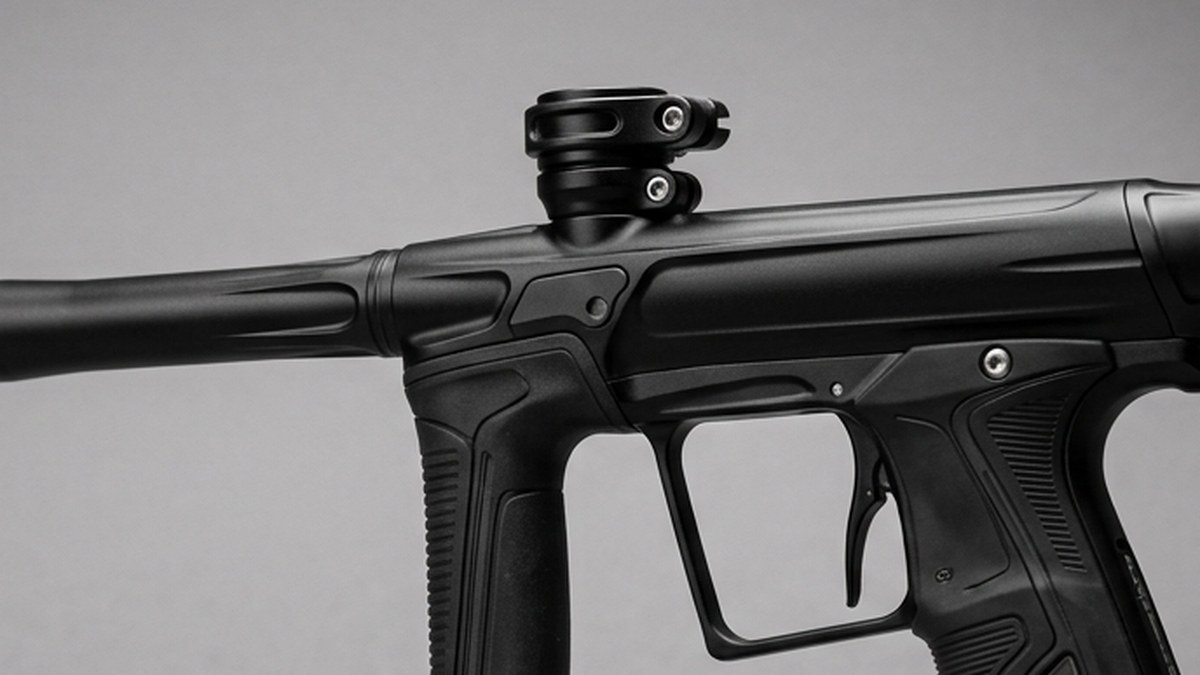

The most visually striking upgrade on the Gtek 170R over its predecessor, the Gtek 160R, is its completely hoseless layout. On older mid-range markers, high-pressure gas traveled from the tank regulator (ASA) to the foregrip regulator through an external stainless-steel braided line or rigid plastic macroline hose with push-to-connect brass fittings.
The Flaws of External Macrolines (160R Era)
External hoses stick out from the bottom of the grip frame. When switching hands rapidly behind a snake bunker or wrapping tight around a Dorito bunker, the macroline digs painfully into your wrist. Furthermore, high-pressure macroline fittings are notorious for blowing o-rings when diving into gravel, spraying air and putting the player out of the match.
Internal Monolithic Air Transfer (170R)
The Gtek 170R routes gas directly through precision-drilled channels inside the aircraft-grade aluminum frame and into the integrated SL6 inline regulator housed inside the foregrip. The grip frame is slim, ergonomic, and completely snag-free. You can switch hands seamlessly without catching gloves or gear on external pipes.
Compared to the composite-bodied Etha 2 and the newer Etha 3, the 170R’s full billet aluminum body gives it a distinct, premium balance in the hands. While the Etha series uses glass-reinforced nylon (GRN) that feels bulkier in the foregrip, the 170R features an ultra-slim hourglass foregrip wrapped in tactile dual-density rubber that sheds wet mud and paint effortlessly.
Comparing Electronic Boards: Prefer poppet drivetrains over spools? Learn how to install heads-up OLED navigation on the Axe platform in our guide to Empire Axe 2.0 upgrades for unmatched performance.
3. Electronics & OLED Board: Tournament Firing Modes & Navigation
One of the biggest functional separations between intermediate markers and high-end tournament gear is how the player interacts with the electronics. Entry-level markers require counting blinking colored LED lights behind a grip window—a frustrating, error-prone process when adjusting settings in bright daylight.
The Gtek 170R features a crisp, rear-facing OLED heads-up display integrated directly into the backstrap of the grip frame. Navigated via a rubber three-button interface, the OLED board provides instantaneous visual confirmation of:
- Firing Modes: Semi-Auto uncapped, Semi-Auto capped, NXL 10.5 BPS Tournament Ramping, PSP Burst, and Millennium modes. Transitioning between recreational walk-on play and sanctioned tournament rules takes under 15 seconds.
- Rate of Fire (ROF) Precision: Independent adjustment of maximum eye-on and eye-off rate of fire, customizable in 0.1 BPS increments.
- Dwell & Debounce Parameters: Factory default dwell sits at 23.0 ms, optimized for the Gamma Core. Fine-tuning debounce settings prevents trigger bounce while maintaining blistering semi-auto firing rates.
- Shot Counter & Battery Telemetry: Real-time shot counter, game timer, and continuous 9V battery voltage monitoring.
The Toolless Battery Console: Changing a battery on older markers required searching for a Phillips screwdriver to take off the grip panels. On the Gtek 170R, the wrap-around rubber grip console uses toolless push-and-slide locking tabs. Pull the tab, fold back the grip, and the 9V battery slides out on a dedicated terminal tray—zero dangling battery wires to pinch or snap.
4. Air System & Tank Physics: Why HPA is Mandatory and CO2 is Forbidden
A recurring question among newer players transitioning from entry-level mechanical markers is: can I run CO2 tanks on the Gtek 170R? The answer is an absolute, non-negotiable NO.
The Gtek 170R uses an electronic micro-solenoid manufactured by SMC, engineered strictly for dry, regulated gaseous compressed air. Liquid CO2 undergoes an extreme endothermic boiling reaction when drawn into a marker, plunging internal gas temperatures to -20°F to 0°F (-29°C to -18°C). Introducing liquid CO2 into a Gtek 170R will freeze the delicate internal solenoid coil, shatter the nitrile urethane o-rings, and void the manufacturer warranty. You must strictly use High-Pressure Compressed Air (HPA) tanks.
The Gtek 170R’s internal SL6 inline regulator accepts tank output pressures ranging from 450 PSI (low pressure) to 800 PSI (standard high pressure) without skipping a beat. However, for optimum performance and maximum o-ring longevity on the POPS ASA, we recommend running your tank regulator at a mid-to-low output pressure of 450 to 550 PSI. This reduces stress on the internal air transfer seals and makes engaging the POPS on/off bonnet completely effortless.
5. Paint Handling & The Shaft 5 Two-Piece Barrel System
A marker can have exceptional electronics and ergonomics, but if it breaks paint inside the barrel during a tournament point, it is worthless. The Gtek 170R is renowned throughout the competitive paintball circuit as one of the gentlest paint handlers ever engineered.
In our field trials shooting super-brittle 5-star tournament paint (grade paint designed to break on a blade of grass) at temperatures dipping below 42°F (5.5°C), the 170R produced zero breech chops over 8,000 rounds fired. The combination of its 135 PSI Gamma Core takeoff speed and light-force magnetic blade trigger ensures that even fragile paintballs enter the barrel completely intact.
The Shaft 5 Barrel vs. Newer S63 Systems
The 170R comes stock with Planet Eclipse’s two-piece 14.5-inch Shaft 5 barrel system (typically with a .689 aluminum back). The Shaft 5 features reverse threading between the barrel back and front tip, preventing the front tip from vibrating loose when tightening the barrel into the marker’s Autococker-threaded breech.
While the newer Planet Eclipse 180R comes with the modular S63 PWR insert system, the Shaft 5 remains an exceptionally accurate, quiet barrel. If you frequently play in areas with small-bore paint (.680 to .684), you can easily add an aftermarket Shaft FL back or an S63 adapter to paint-match your bore diameter for maximum gas efficiency and tight velocity spreads (+/- 3 FPS over the chronograph).
6. Head-to-Head Comparison: Gtek 170R vs. Etha 3 vs. 180R vs. Shocker AMP
How does the Gtek 170R stack up against its closest competitors in the electronic marker landscape? Review this direct head-to-head performance matrix:
| Marker Model | Drivetrain & Pressure | Body Material | Display Type | MSRP / Price Tier | Primary Advantage |
|---|---|---|---|---|---|
| Planet Eclipse Gtek 170R | Gamma Core (135 PSI) | 6061-T6 Billet Aluminum | OLED Screen | $799 – $850 | Best balance of aluminum build, OLED screen, and proven reliability. |
| Planet Eclipse Etha 3 | Gamma Core (135 PSI) | Glass-Reinforced Nylon | Single LED Color Light | $549 | Lowest price entry for the Gamma Core; lighter but lacks OLED display. |
| Planet Eclipse Gtek 180R | OP-R Core (120 PSI) | 6061-T6 Billet Aluminum | OLED Screen (Upgraded) | $1,095 | Newer OP-R core, S63 insert barrel, and toolless mechanical frame swap. |
| Shocker AMP | AMP Spool Valve (110 PSI) | Aluminum Monolithic | OLED Screen | $899 | Ultra-compact and lightweight, but requires more frequent o-ring greasing. |
7. Maintenance Blueprint: Toolless Servicing & Lubrication Schedule
One of the primary reasons competitive teams and tournament players swear by the Gtek 170R is its near-zero maintenance footprint. While other high-end markers demand complete bolt breakdowns and relubrication after every single day of play, the Gamma Core can run through 10,000+ rounds on a single light coat of grease.
8. Who Should (and Shouldn’t) Buy the Planet Eclipse Gtek 170R?
While the Gtek 170R is an extraordinary electronic marker, it is not the right choice for every player:
Who SHOULD Buy the Gtek 170R:
- Tournament players competing in NXL, regional divisional events, or local speedball leagues who demand tournament ramping and an OLED screen without spending $1,600+ on a CS3.
- Woodsball and scenario players who want an all-metal, hoseless marker that operates flawlessly in rain, mud, and freezing cold.
- Players looking for the best price-to-performance sweet spot on the secondary and refurbished market.
Who SHOULD NOT Buy the Gtek 170R:
- First-time casual walk-on players on a tight budget—an entry-level mechanical marker like the Emek 100 or a composite Etha 3 offers the same shot reliability for hundreds of dollars less.
- Players who demand the absolute latest cutting-edge tech—if toolless frame swaps and the new S63 insert barrel matter to you, look at the newer 180R.
- Players without access to High-Pressure Compressed Air (HPA) fills.
For players exploring markers across different categories and price brackets, see our beginner field roundup on the best paintball guns for beginners, our full mechanical guide in the paintball marker guide for beginners, our sniper tests on the best paintball guns for long range precision, and our full field rankings of the best paintball guns for adults.
9. Frequently Asked Questions
Is the Gtek 170R worth the price premium over the Etha 2 or Etha 3?
Yes, if you value an all-aluminum body, an OLED heads-up display, and slimmer ergonomics. While the Etha 2 and Etha 3 share the exact same Gamma Core drivetrain and 135 PSI operating pressure, the Gtek 170R provides a full 6061-T6 aluminum body, a low-rise aluminum clamping feedneck, toolless eye covers, and an intuitive rear OLED screen that eliminates the need to count blinking colored LEDs.
What is the operating pressure of the Planet Eclipse Gtek 170R?
The Gtek 170R operates at approximately 135 PSI. The internal SL6 inline regulator steps down the incoming tank pressure (typically 450 to 800 PSI HPA) to 135 PSI, which powers both the Gamma Core bolt acceleration cycle and the high-volume shot chamber, providing exceptional paint handling and a quiet shot signature.
Can the Gtek 170R run on CO2 tanks?
No. The Gtek 170R strictly requires High-Pressure Compressed Air (HPA) and cannot run on CO2. Liquid CO2 causes extreme freezing temperatures (-20°F) when boiled into vapor, which will freeze and destroy the electronic SMC solenoid and degrade urethane o-rings inside the Gamma Core.
What is the difference between the Gtek 170R and the M170R?
The Gtek 170R is an electronic marker, while the M170R is a purely mechanical variant on the same platform. The electronic 170R includes an electronic microswitch trigger, solenoid, battery, and OLED screen with ramping modes. The M170R uses a mechanical 3-way valve and mechanical trigger for classic mechanical leagues and ICC woodsball tournaments without batteries.
How many shots does the Gtek 170R get per tank fill?
The Gtek 170R delivers approximately 1,100 to 1,250 shots from a standard 68 ci / 4500 PSI carbon fiber HPA tank. Its Gamma Core independent shut-off spool cuts off air expansion as soon as the paintball leaves the breech, providing class-leading air efficiency.
What barrel threading does the Gtek 170R use?
The Gtek 170R uses standard Autococker (Cocker) barrel threading. It comes stock with a two-piece Shaft 5 barrel (14.5 inches overall) with a .689 aluminum back and reverse-threaded front tip, and is compatible with all standard Autococker threaded aftermarket barrels.
How do you adjust the trigger on the Gtek 170R?
The Gtek 170R blade trigger features four independent adjustment screws. Using the included Allen hex keys, you can adjust the pre-travel (forward stop), post-travel (rear stop), trigger spring return force, and microswitch activation point to dial in a short, crisp trigger pull.
Does the Gtek 170R chop paintballs?
Virtually never. The combination of dual optical infrared eye sensors and the Gamma Core’s low-force initial bolt stage prevents chops. If a paintball is not fully chambered, the bolt simply stalls against the shell with minimal force rather than pinching and slicing it.
🎯 Final Buying Recommendation
Field-Tested & Verified (2026)
Ready to Step Up to Tournament-Grade Electronic Performance?
The Planet Eclipse Gtek 170R remains one of the smartest, most reliable investments in modern paintball. Delivering the indestructible 135 PSI Gamma Core, flawless hoseless ergonomics, and an intuitive OLED tournament board, it matches high-end flagship reliability at a fraction of the cost. Check real-time stock and competitive deals below:
Considering a Flagship Upgrade? For competitive athletes demanding pro-level tournament speed, tool-less concealed eyes, and an ultra-low 95–105 PSI operating pressure, explore our hands-on Planet Eclipse CS3 Pro review.
