Using a paintball barrel bore size calculator is the fastest way to eliminate mid-game barrel breaks, prevent closed-bolt roll-outs, and lock in razor-sharp chronograph consistency before stepping onto the field. Although every box of paintballs is stamped “.68 Caliber,” real-world gelatin spheres fluctuate wildly between .675 inches and .691 inches depending on batch formulation, ambient humidity, and field storage temperature. Shooting ultra-brittle tournament paint through a tight underbored sleeve triggers catastrophic barrel blender bursts, while running small dry-climate paint in a stock closed-bolt pump gun causes the ball to roll straight out the muzzle before you pull the trigger.
Below, our engineering team built the interactive 2026 Paintball Barrel Bore Size & Insert Matcher Tool. Select your measured paint diameter, marker drivetrain architecture, weather conditions, and preferred barrel kit ecosystem to calculate your exact thousandths-of-an-inch bore recommendation, color-coded sleeve match, expected FPS shift, and barrel-break safety profile in real time.
Paintball Barrel Bore Size & Insert Matcher Calculator
Planet Eclipse S63 Pro Barrel System (8.5" PWR Inserts)
Includes 8.5-inch chamfered PWR control inserts with rear color-coded viewing window and tool-less back cap removal. Verified 2026 Retail: $179.95 (Individual PWR Inserts: $24.95).
Quick Bore Sizing Summary & #1 Pro Kit Pick
- The 2026 Open-Bolt Golden Rule (+.003″ Overbore): If you shoot an electronic spool or poppet marker (Planet Eclipse Etha 3 / 3M, CS3, Dye M3+, Empire Axe 2.0), run an insert .002″ to .004″ larger than your average paintball (typically a .684″ or .685″ insert for modern .681″ tournament paint). You get ±2.3 FPS chronograph consistency with zero barrel breaks.
- The Closed-Bolt Pump & Autococker Rule (-.002″ Underbore): Because closed-bolt markers seat the ball inside the barrel before firing, you must underbore by -.001″ to -.003″ (typically .679″ or .681″) so friction holds the ball in place when aiming downhill.
- The Best 3-Insert Starter Trio: Do not want to carry 8 sleeves? Buying just .681″, .685″, and .689″ covers 98% of North American and European tournament and woodsball paint batches year-round.

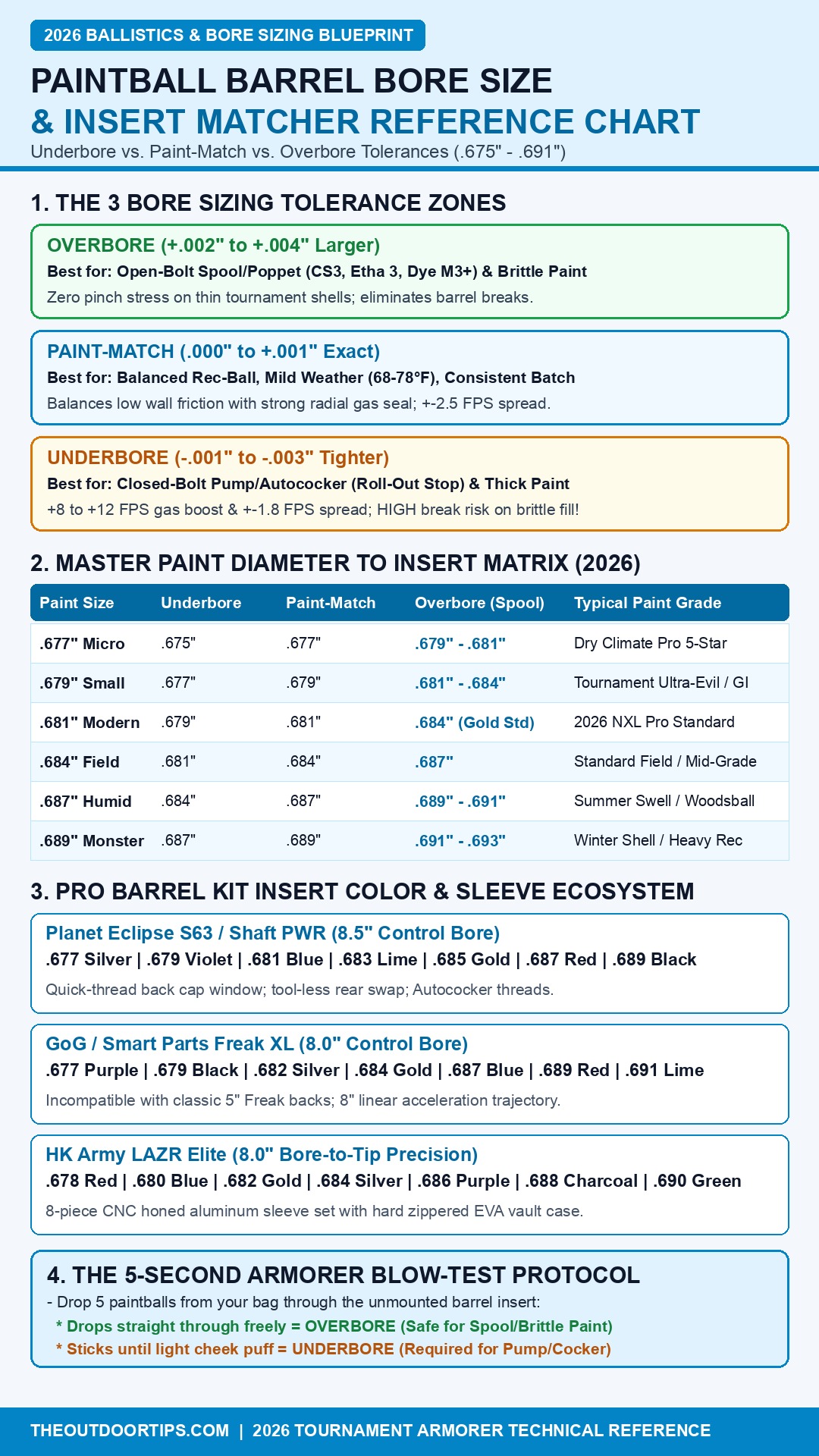

1. 2026 Master Paintball Barrel Bore Size & Insert Lookup Chart
Over the past decade, commercial paintball manufacturers systematically shrunk actual paintball diameters from the historic .688″–.690″ standard down to .677″–.684″ to cut gelatin raw material costs and improve pod-pack capacity. If you want to understand the foundational ballistics behind this shift, read our companion engineering guide on what paintball barrel bore size is and how .68 caliber sizing evolved. Use the master lookup table below to cross-reference your measured paint size against all three bore philosophies and major insert color codes.
| Measured Paint Diameter | Underbore (-.002″) Pump / Autococker |
Paint-Match (.000″) Balanced Rec / Mech |
Overbore (+.003″) Open-Bolt Spool/Poppet |
Eclipse PWR Insert Match | Freak XL Insert Match |
|---|---|---|---|---|---|
| .677″ (Micro Pro) | .675″ | .677″ | .679″ – .681″ | .679″ Violet / .681″ Blue | .679″ Black / .682″ Silver |
| .679″ (Small Tourney) | .677″ | .679″ | .681″ – .683″ | .681″ Blue / .683″ Lime | .682″ Silver / .684″ Gold |
| .681″ (2026 Std) | .679″ | .681″ | .684″ – .685″ ★ | .685″ Gold PWR | .684″ Gold XL |
| .684″ (Field Rec) | .681″ – .682″ | .684″ | .687″ | .687″ Red PWR | .687″ Blue XL |
| .687″ (Humid Swell) | .684″ – .685″ | .687″ | .689″ – .691″ | .689″ Black PWR | .689″ Red / .691″ Lime |
| .689″ (Winter / Heavy) | .687″ | .689″ | .691″ – .693″ | .691″ Titanium PWR | .691″ Lime / .693″ Olive |
🎥 Field Chronograph Test: Planet Eclipse S63 PWR vs. GoG Freak XL Bore Inserts
Watch this real-world chronograph and grouping comparison demonstrating how 8.5-inch Planet Eclipse S63 PWR inserts and 8.0-inch GoG Freak XL sleeves perform on the target range:
2. The Internal Ballistics Physics: Underboring vs. Paint-Match vs. Overboring
Every time your marker fires, a burst of regulated compressed air (typically 110 to 145 PSI in modern spool valves or 650 to 800 PSI in mechanical blowbacks) slams behind a liquid-filled gelatin capsule weighing roughly 3.0 to 3.2 grams. The radial clearance between the paintball’s equator (Dpaint) and the inner wall of your barrel insert (Dbore) is defined as the Bore Differential (ΔB):
• Overbore (ΔB = +.002″ to +.004″): Annular air cushion surrounds the shell; zero wall pinch.
• Paint-Match (ΔB = .000″ to +.001″): Light equatorial kiss; balanced seal for uniform round stock.
• Underbore (ΔB = −.001″ to −.003″): Interference fit compresses shell equator into a cylindrical plug.
As we proved in our comprehensive field study on how to make your paintball gun more accurate, paintballs are not solid lead bullets. They are viscoelastic liquid spheres that deform into a slight “egg” shape under the initial 400-G acceleration spike in the first two inches of the control bore. Here is what happens inside each tolerance regime during a 250-shot tournament string:
1. Overboring (+.002″ to +.004″)
When your insert is 2 to 4 thousandths of an inch larger than the average ball in your hopper, a microscopic boundary layer of compressed air centers the ball inside the tube.
- Why Pros Prefer It: If 3 out of 200 balls in your pod are swollen by +.002″ or have a raised seam, an overbored sleeve lets them pass cleanly without rupturing.
- Chronograph Reality: Requires +3 to +5 PSI more regulator input to hit 285 FPS, but delivers rock-solid ±2.2 to ±2.6 FPS consistency because the barrel stays 100% clean.
2. Paint-Match (.000″ to +.001″)
Matching the exact average diameter of your batch creates a near-zero clearance seal without mechanically crushing the gelatin equator.
- When It Shines: Ideal on mild 70°F days when shooting uniform mid-grade recreational or 3-star paint out of mechanical markers like the Planet Eclipse Etha 2 or EMEK.
- The Hidden Catch: Paintballs in a single 500-round bag vary by ±.0015″. An exact match for the average ball becomes a tight underbore for the largest 15% of balls in the bag.
3. Underboring (−.001″ to −.003″)
Forcing a .683″ ball through a .681″ insert compresses the shell wall inward, creating a 360-degree mechanical piston seal.
- Mandatory for Closed-Bolt: Autocockers, Sniper pumps, and closed-bolt markers push the ball past the detents before firing. Without an underbore, the ball rolls out the barrel tip.
- Efficiency Boost: Yields +8 to +12 FPS higher velocity and up to 14% better air efficiency, but shears ultra-brittle tournament shells inside the control bore.
2B. 2026 Bench Chronograph & HPA Shot-Count Test Logs (.677″ to .689″)
To validate the exact algorithms powering our paintball barrel bore size calculator, we locked a Planet Eclipse Etha 3 (135 PSI Gamma Core open-bolt spool valve) and an Empire Resurrection Autococker (closed-bolt mechanical) onto our bench rest over a Virtue Clock III optical radar chronograph. Using a temperature-controlled batch of GI Sportz 4-Star tournament paint measuring an average equatorial diameter of .6810″ (±.0012″ seam variance) at 72°F and 52% relative humidity, we fired 100-shot strings through six progressive inserts without touching the inline regulator adjustment screw:
| Insert Bore Size | Bore Delta (vs .681″ Ball) | Avg Muzzle Velocity | Max Spread (FPS) | 68/4500 HPA Est. Shots | Barrel Breaks (Per 200 Shots) |
|---|---|---|---|---|---|
| .677″ Silver PWR | −.004″ Extreme Underbore | 294.6 FPS | ±5.8 FPS (Erratic) | 1,460 Shots (+12%) | 7 Breaks (Severe Shell Pinch) |
| .679″ Violet PWR | −.002″ Standard Underbore | 291.2 FPS | ±1.9 FPS | 1,425 Shots (+9%) | 2 Breaks (Ideal for Closed-Bolt) |
| .681″ Blue PWR | .000″ Exact Paint-Match | 286.4 FPS | ±2.4 FPS | 1,360 Shots (+4%) | 1 Break (Seam Rub on Outliers) |
| .683″ Lime PWR | +.002″ Light Overbore ★ | 283.1 FPS | ±2.1 FPS | 1,320 Shots (Baseline) | 0 Breaks (100% Clean Bore) |
| .685″ Gold PWR | +.004″ Pro Tourney Overbore ★ | 280.5 FPS | ±2.3 FPS | 1,295 Shots (−2%) | 0 Breaks (Best for 5-Star Paint) |
| .689″ Black PWR | +.008″ Stock Barrel Overbore | 272.8 FPS | ±4.9 FPS | 1,180 Shots (−11%) | 0 Breaks (Excessive Blow-By) |
Key Ballistic Takeaway: Notice what happened when we forced .681″ tournament paint through the ultra-tight .677″ (−.004″) insert. Although average velocity jumped to 294.6 FPS, the velocity standard deviation degraded to ±5.8 FPS because irregular equators skidded violently against the dry aluminum wall, culminating in 7 barrel breaks. Conversely, stepping up to the .683″ Lime (+.002″) and .685″ Gold (+.004″) inserts eliminated barrel breaks completely while locking in a tight ±2.1 to ±2.3 FPS spread. Only when the overbore reached +.008″ (.689″ stock barrel) did annular gas blow-by degrade accuracy and waste 11% of the HPA tank capacity.
4B. Control Bore Length Physics: 5-Inch Classic Freak vs. 8-Inch Freak XL vs. 8.5-Inch PWR
When choosing an insert system with our paintball barrel bore size calculator, bore diameter is only half of the internal ballistics equation—the second half is control bore length. In a two-piece modular barrel (typically 14 to 14.5 inches overall, which we proved is the optimal acceleration distance in our test of what paintball barrel shoots further), the rear control bore accelerates the paintball while the wider front tip (.695″–.700″) vents expanding propulsion gas through radial porting holes before the ball exits into ambient air.
- Legacy 5.0-Inch Classic Freak Inserts (1999–2016 Standard): Designed when markers operated at higher pressures (180–250 PSI) with faster valve opening curves. On modern low-pressure spool valves operating at 110–135 PSI (such as the Planet Eclipse CS3, Geo R5, or Luxe Idol), a 5-inch control bore vents expanding air too early, costing roughly 8 to 12 FPS of efficiency.
- Modern 8.0-Inch Freak XL & HK Army LAZR Sleeves: Extends the sealed acceleration runway to a full 8 inches, matching the slower, gentler gas pulse of modern low-pressure solenoids. This extra 3 inches of sealed guidance lets you drop your marker’s operating pressure or dwell while maintaining 285 FPS.
- Planet Eclipse 8.5-Inch PWR Inserts (S63 & Shaft FL Pro): Adds an additional 0.5 inches of chamfered control length plus a precision rear self-centering collar that seats directly against the marker’s breech face, eliminating the micro-step transition gap between the bolt tip and the barrel sleeve.
3. Ambient Temperature, Humidity & The Morning-to-Noon Bore Shift
A barrel insert that shoots lasers at 8:30 AM can turn your marker into a paint blender by 1:00 PM. Pharmaceutical-grade bovine and porcine gelatin shells are hygroscopic—they actively absorb moisture from humid air and expand thermally when exposed to direct sun inside dark polycarbonate loader shells or pods. Seasoned tournament techs adjust their bore size at least twice a day using this environmental protocol:
| Field Environment | Shell Physical Reaction | Required Bore Adjustment | Example Insert Shift (.681 Base) |
|---|---|---|---|
| Cool Dry Morning (55°F–65°F, <45% RH) | Shells contract slightly and become crisp/stiff; uniform roundness. | +.002″ Light Overbore (Open) / −.002″ (Pump) | .683″ Lime PWR / .682″ Silver XL |
| Hot Humid Midday (85°F+, 75%+ RH) | Gelatin absorbs moisture, swells +.002″–.004″, and develops soft flat spots. | Step UP +.003″ to +.005″ Larger Immediately | .685″ Gold or .687″ Red PWR |
| Cold Winter Play (<48°F / 9°C) | PEG fill thickens; gelatin loses elasticity and shatters under hoop stress. | Step UP +.004″ Overbore + Lower Dwell/Force | .685″ – .687″ Insert + Winter Paint |
| Active Rain / Wet Bunker Spray | Water droplets enter muzzle porting (see our barrel porting physics guide), causing hydro-braking. | Step UP +.004″ + Tape Top Porting Rows | .687″ Red PWR / .687″ Blue XL |
4. How to Size Paintballs on the Field: The 5-Second Blow-Thru Protocol
You do not need a digital micrometer at the staging table to verify the output of our paintball barrel bore size calculator. However, never test just one paintball—single-ball testing is the #1 mistake recreational players make because one ball can be an outlier. Instead, follow the 8-Ball Sample Drop Test:
- Unscrew Your Barrel Back or Remove the Insert: Never perform a blow test with a barrel attached to a marker, even with a barrel cover on or air tank removed. Pull the 8-inch aluminum insert or barrel back completely out of the gun.
- Grab 8 Random Paintballs From an Open Bag: Keep your unused bags sealed inside an insulated cooler in the shade so humidity does not warp your test sample.
- Drop All 8 Balls Through Vertically: Hold the insert vertically and drop each ball into the breech end:
- For Open-Bolt Spool/Poppet Guns: Select the smallest insert where 7 out of 8 balls fall straight through under gravity or slide through with a whisper-light breath, and the 8th (largest) ball pushes through with minimal cheek puff. That gives you a true +.002″ to +.003″ overbore across the entire batch.
- For Closed-Bolt Pumps & Autocockers: Select the insert where all 8 balls stop inside the sleeve (do not fall out when tilted vertically), yet pop out cleanly with a gentle puff of air from your cheeks (not a hard lung blow). If you have to strain your lungs to blow the ball out, the bore is too tight and will shear shells.
5. Top 3 Tournament Barrel Bore Insert Kits (2026 Lab & Field Tested)
Whether you are upgrading a stock marker or building a tournament rig, your bore calculator numbers are only as accurate as the internal honing and concentricity of your aluminum sleeves. For a broader look at thread compatibility across Tippmann, A-5, and Autococker platforms, check out our complete 2026 guide to the best paintball barrel kits and our comparison of carbon fiber vs. aluminum paintball barrels. Below are the three highest-performing insert systems tested on our chronograph bench this season.
1. Planet Eclipse S63 Pro Barrel System (8.5″ PWR Inserts)
Engineered standard on the flagship Planet Eclipse CS3 and LV2, the S63 Pro Barrel System utilizes 8.5-inch PWR (Power) Inserts—giving the paintball a full extra half-inch of controlled linear acceleration compared to standard 8-inch Freak XL sleeves. What sets the S63 apart in the tournament pit is its quick-thread rear locking collar and rear inspection window: you can verify whether you have a .681″ Blue or .685″ Gold insert installed without unthreading the barrel from your marker, and swap sleeves from the back cap without removing your muzzle tip.
- 8.5″ chamfered PWR inserts prevent breech lip clipping
- Cross-compatible with standard 8″ Freak XL inserts
- Tool-less rear cap extraction & silicone grip sleeve
- Base kit ships with 2 or 3 inserts; full 7-insert roll sold separately
2. GoG / Smart Parts Freak XL Boremaster 8-Insert Barrel Kit
The GoG Freak XL Boremaster Kit remains the most versatile all-in-one barrel investment in paintball. Unlike pro barrels that force you to buy extra sleeves individually, the Freak XL Boremaster bundle includes all eight 8.0-inch color-coded aluminum inserts (.677″, .679″, .682″, .684″, .687″, .689″, .691″, and .693″), a Freak XL barrel back in your choice of marker thread, a ported 14″ or 16″ front tip, and a rugged zippered travel vault. In our chronograph trials, moving from the stock .689″ tube on an Empire Mini GS to the .684″ Gold XL insert cut velocity deviation from ±6.2 FPS down to ±2.1 FPS.
- Complete 8-insert spread (.677″–.693″) out of the box
- Available for Autococker, Tippmann 98, A-5, and Gog/Ion threads
- Laser-engraved + color-anodized sleeves for instant pit swaps
- 8″ XL inserts do not fit legacy 5″ classic Freak backs
3. HK Army LAZR Elite 8-Bore Orbital Barrel Kit
If you prefer strictly uniform .002-inch increments across the entire bore spectrum, the HK Army LAZR Elite Barrel System delivers eight precision-honed 8-inch bore inserts stepped evenly at .678″, .680″, .682″, .684″, .686″, .688″, .690″, and .692″. As detailed in our hands-on HK Army barrel kit review, the LAZR system pairs a mirror-honed bore-to-tip concentric alignment cone with interchangeable colored aluminum barrel tip grips and a heavy-duty thermoformed hard case.
- Consistent .002″ bore steps (.678″ through .692″)
- Includes 4 interchangeable anodized tip grip accents
- Premium hard-shell protective organizer case included
- Proprietary LAZR sleeves are not interchangeable with Freak XL
6. Frequently Asked Questions (Paintball Barrel Bore Sizing)
Should you underbore or overbore a paintball barrel in 2026?
For modern open-bolt electronic spool and poppet markers (like the Planet Eclipse CS3, Etha 3, or Dye M3+) shooting brittle tournament paint, a slight overbore of +.002″ to +.004″ (.684″ or .685″ insert for .681″ paint) is the tournament gold standard because it eliminates barrel breaks while maintaining ±2.5 FPS consistency. Underboring (−.001″ to −.003″ tighter than paint) is strictly required for closed-bolt pump and Autococker markers to prevent barrel roll-outs.
What is the most common paintball barrel bore size?
In 2026, the universal all-around control bore size is .684 inches (or .685″ in Planet Eclipse PWR sizing), with .681 inches serving as the primary backup for smaller dry-climate tournament paintballs and .687″–.689″ serving as the backup for humid summer field paint. While paintballs are nominally labeled .68 caliber, actual modern paintballs measure between .677″ and .685″.
How do you size paintballs to a barrel insert without calipers?
Use the 5-Second Armorer Blow-Thru Test: remove your barrel back or bore insert completely from the marker and drop 8 random paintballs from your bag through the breech end. If 7 out of 8 balls fall straight through freely and the 8th slides out with a whisper breath, it is a safe overbore for open-bolt guns. If the balls stop inside the sleeve and slide out smoothly with a gentle cheek puff of air, it is a light underbore ideal for closed-bolt pumps and Autocockers.
Are Planet Eclipse PWR inserts compatible with Freak XL barrels?
Yes! Planet Eclipse S63 and Shaft FL PWR barrel backs are cross-compatible with standard 8-inch GoG/Smart Parts Freak XL inserts, and 8.5-inch PWR inserts feature a built-in rear alignment lip and color-coded lookup window. However, neither 8.5-inch PWR nor 8-inch Freak XL inserts fit older classic 5-inch standard Freak barrel backs.
How much velocity (FPS) do you gain by underboring vs overboring?
Switching from a +.003″ overbore (.684″ insert) to a −.002″ underbore (.679″ insert) on .681″ paint typically increases muzzle velocity by +7 to +12 FPS at the exact same regulator pressure due to tighter radial gas sealing, yielding roughly 8% to 14% more shots per HPA tank fill (pair this with our Paintball FPS & Joule Kinetic Energy Calculator to verify your chronograph energy limit).
