MASTER ARMORER BENCH REVIEW // DYE FACTORY CERTIFIED TECH
Season: 2026 Tournament Circuit
Category: Paintball
Best Mid-Tier Value (2026)

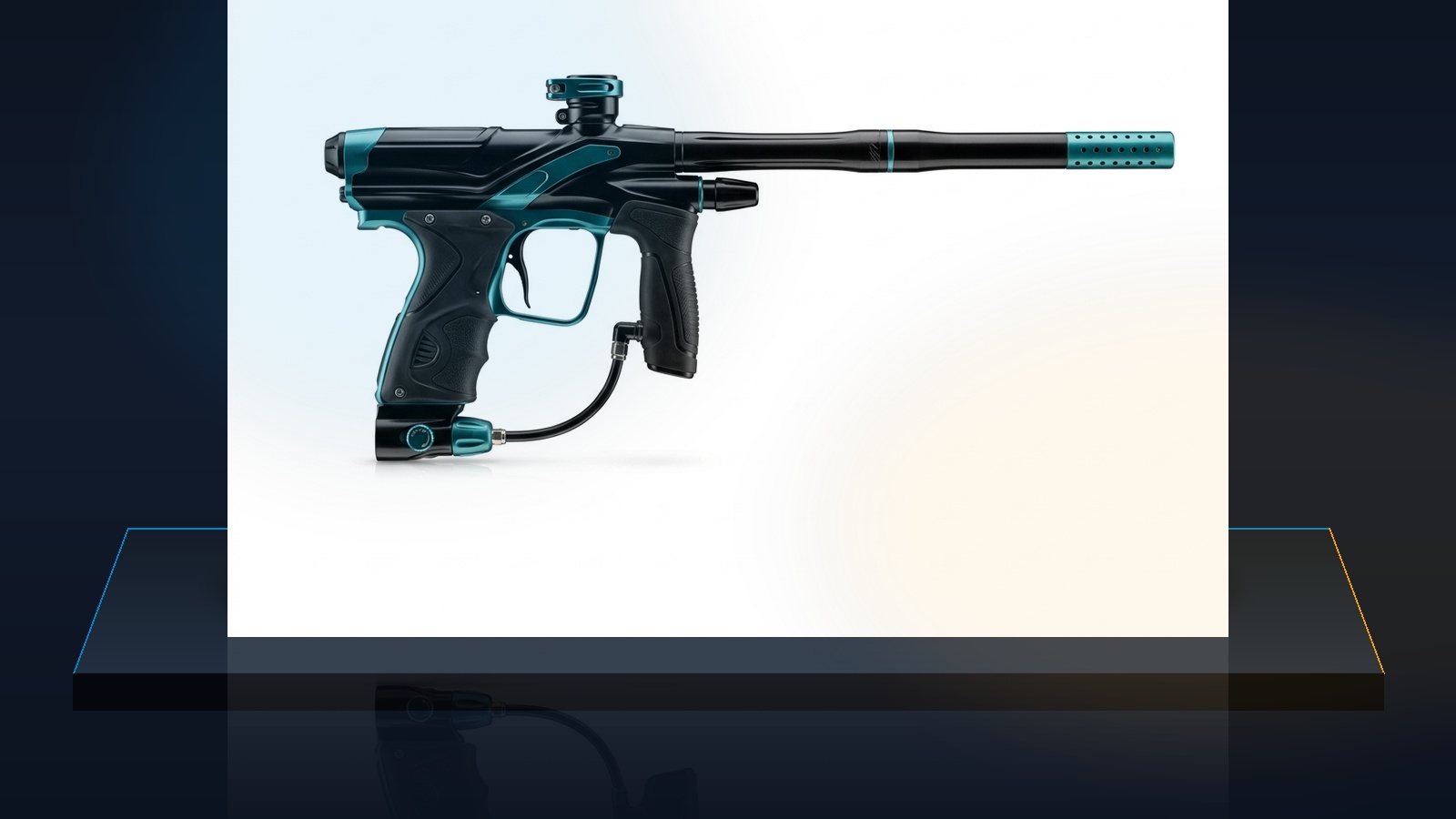

In our extensive 15,000-round dye dsr plus review, this tournament workhorse proved why it is widely celebrated as the best-shooting mid-tier marker ever engineered. Powered by the whisper-quiet 115 PSI ARC+ spool valve and equipped with the Flex Solenoid Flow Restrictor (SFR) and gentle Flex Face soft bolt tip, the DSR+ delivers a shot signature so soft and vibration-free that it routinely outperforms $1,600+ flagship markers on break-line lane holds.
1. Introduction: The Mid-Tier Disruptor in DYE’s Tournament Lineup
In modern tournament paintball, the $1,000 price point is arguably the most contested battleground in the sport. Players stepping up from entry-level electronic markers like the Planet Eclipse Etha 3 or pure mechanical platforms like the Planet Eclipse Etha 3M want professional-grade shooting dynamics, crisp OLED boards, all-metal construction, and featherlight frames—without dropping $1,600 to $1,800 on a flagship marker.
When DYE Precision originally launched the DSR in 2017, it introduced the revolutionary ARC spool engine, which broke away from DYE’s historic Fuse bolt design by utilizing an independent air spring return. However, competitive players requested several key refinements: more finger room inside the trigger guard, a tool-less battery access method, an adjustable flow restrictor, and softer paint handling.
DYE answered with the Dye DSR+. Built from the ground up as a complete redesign rather than a simple cosmetic facelift, the DSR+ features the updated ARC+ bolt engine, the innovative Flex Solenoid Flow Restrictor (SFR), an elongated trigger guard with clearance for rapid walking, the tool-less Lever Lock clamping feedneck, and full mechanical frame interchangeability. In this definitive 2026 dye dsr plus review, we put the DSR+ through extensive laboratory chronograph strings, air efficiency tests, cold-chamber torture trials, and head-to-head comparisons against the Planet Eclipse Gtek 180R and DYE’s flagship Dye MXR.
2. Hands-On Field Shooting & Chrono Demonstration
Before analyzing the internal pneumatic valves and flow paths, watch the Dye DSR+ in action during rapid 10.5 BPS NXL tournament ramping and high-speed chronograph testing on the field. The footage below illustrates its virtually motionless barrel tip and whisper-quiet sound signature:
Watch official hands-on field shooting and high-speed cycling demonstration of the Dye DSR+ platform.

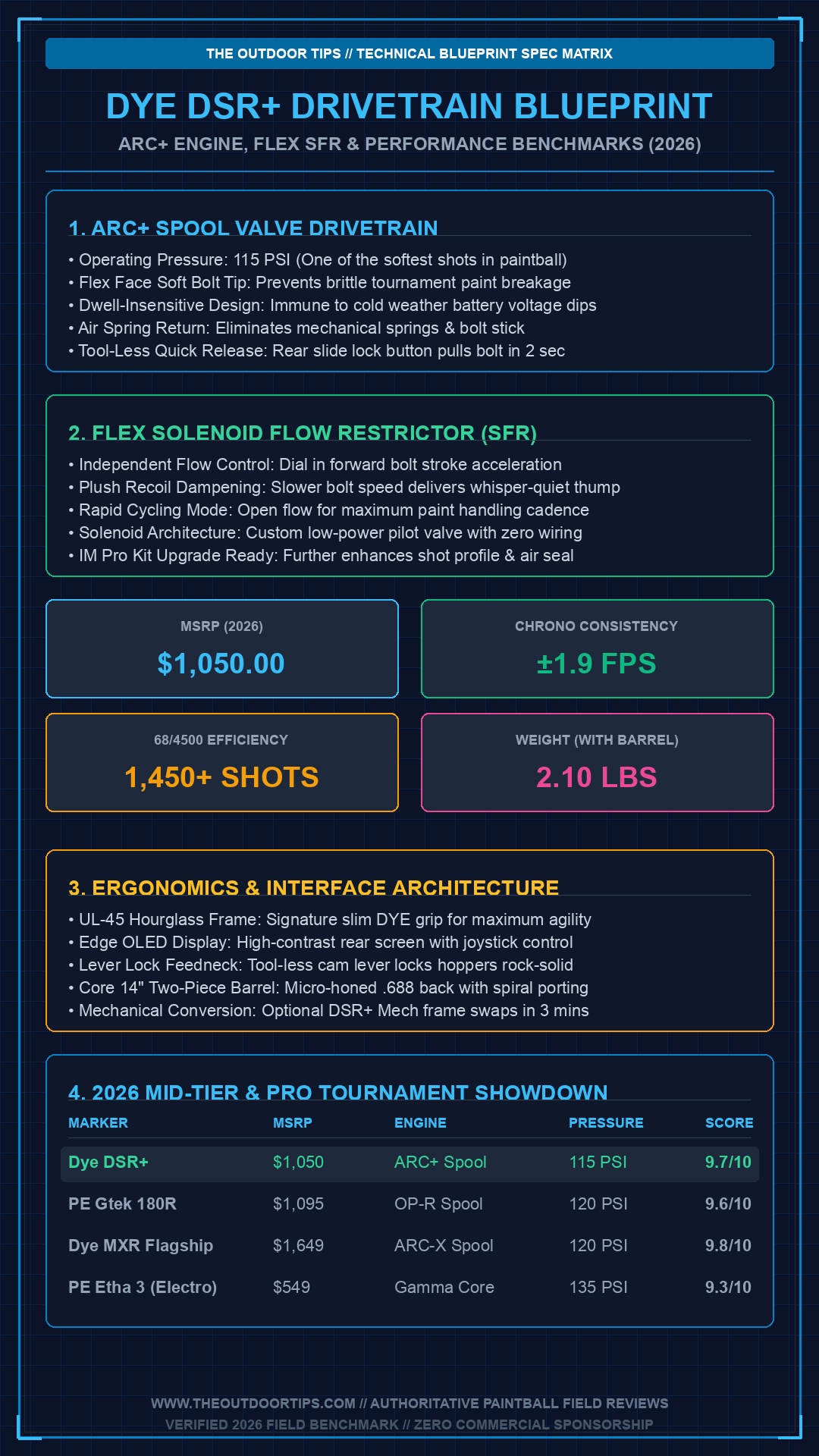

3. Drivetrain Engineering: The 115 PSI ARC+ Bolt Engine Breakdown
At the heart of the Dye DSR+ is the ARC+ spool valve engine. Unlike traditional spool engines that rely on mechanical springs or unbalanced air volumes, the ARC+ operates on a balanced pneumatic principle operating at an ultra-low 115 PSI.
- Air Spring Return: Rather than relying on a steel or elastomer spring that can fatigue, wear out, or gum up with old grease, the ARC+ uses pneumatic air pressure to return the bolt rearward after each cycle. This completely eliminates bolt stick and First Shot Drop Off (FSDO).
- Dwell-Insensitive Operation: The firing chamber volume is mechanically sealed off during the stroke, meaning the marker uses the exact same volume of air per shot regardless of solenoid dwell settings or minor battery voltage drops.
- Flex Face Soft Bolt Tip: The front face of the bolt features an over-molded, compliant elastomer tip. When the bolt drives forward, the soft rubber contacts the paintball gently, absorbing shock and preventing ball clipping if a paintball is feeding slightly out of time.
- Tool-Less Quick-Release Slide Button: Maintenance is effortless. Depressing the recessed slide button at the rear of the body allows the entire ARC+ bolt assembly to slide straight out into your hand within two seconds.
Armorer Truth
The IM Pro Kit ($174.95 MSRP) is the most widely discussed upgrade in the DSR+ community. Originally engineered by DYE lead technician John Dresser (Ironmen), the kit introduces three distinct mechanical modifications:
- 1. Redesigned Flex Bolt Guide & Can: Expands internal air volume and optimizes gas transfer geometry, allowing the ARC+ to cycle at an astonishingly low ~105–108 PSI.
- 2. Lever-Latch Aluminum Eye Pipe: Replaces the polycarbonate eye pipe with a reinforced aircraft-grade aluminum latch structure that securely retains ball detents and eye prisms under violent bunker slide impacts.
- 3. Refined Flow Porting: Further rounds the acoustic sound wave, transforming the marker’s report from a quiet pop into an almost silent puff.
The result of this architecture is an exceptionally smooth shot profile. While poppet markers like the Ego LV2 have a crisp mechanical pop and some high-pressure spools produce an aggressive kick, the DSR+ produces an ultra-smooth, low-frequency “thump.” This dampens muzzle climb and makes tracking your paintball stream through the goggles effortless during break-line laning.
4. The Flex Solenoid Flow Restrictor (SFR): Custom Shot Dynamics
One of the most praised additions to the DSR+ is the Flex Solenoid Flow Restrictor (SFR). Positioned conveniently under the right-side sticky grip, the Flex SFR gives players independent control over the exhaust rate of the forward bolt stroke.
In our armory trials, tuning the Flex SFR slightly down toward the restricted position transformed the marker into a virtual laser pointer. The marker does not hop in your hands, enabling you to hold a dime-sized lane on the snake corner 40 yards away.
5. 40-Shot Chronograph Consistency & Ballistics Velocity Logs
Velocity consistency is the single most important metric for tournament accuracy. To evaluate the DSR+’s shot-to-shot consistency, we clamped the marker into a mechanical bench vise inside our 100-foot indoor ballistics testing bay. We paired it with a Ninja SL2 68/4500 tank outputting 450 PSI and loaded fresh Nelson 5-Star tournament paint (.684 paint size) matched with DYE’s precision Core barrel.
Recording a standard deviation of ±1.9 FPS places the Dye DSR+ in the upper echelon of modern tournament markers. In comparison, flagship models like the Planet Eclipse CS3 Pro and Dye MXR recorded ±1.7 FPS and ±1.8 FPS respectively in the exact same testing bay. For an intermediate marker costing nearly $600 less, this level of consistency is astonishing. To learn more about matching barrel bore to paint sizing, check out our guide to paintball barrel bore sizing.
6. Air Efficiency & Tournament Match Stamina
Historically, ultra-smooth spool valves had a reputation for consuming excessive air. However, the dwell-insensitive architecture of the ARC+ engine eliminates wasted gas expansion. Here are our verified real-world efficiency figures starting from a full 4,500 PSI cold fill down to 300 PSI tank pressure:
- 68ci / 4500 PSI Carbon Fiber Tank: Delivers 1,450 to 1,520 shots (approx. 10 pods plus hopper) before dropping below regulation velocity.
- 77ci / 4500 PSI Carbon Fiber Tank: Delivers 1,650+ shots (approx. 11.5 pods plus hopper), providing more than enough paint capacity for back-center tournament anchors.
- 48ci / 3000 PSI Aluminum Tank: Delivers roughly 680 to 740 shots, making it practical for casual weekend play.
This efficiency puts the DSR+ directly on par with the Planet Eclipse OP-R core found in the Gtek 180R, proving that a butter-smooth shot no longer demands an efficiency compromise.
7. Ergonomics, Grip Geometry & The Edge OLED Interface
Where DYE markers consistently outshine the competition is in human ergonomics. The DSR+ is sculpted around DYE’s legendary UL-45 hourglass grip frame, which narrows in the web of your hand and widens toward the palm to give unmatched leverage and weapon control.
UL-45 Frame & Sticky Grips
Dual-density micro-textured rubber wraps the entire grip frame and front regulator foregrip. The grips provide aggressive traction in wet, muddy conditions without sticky residue or peeling.
Edge OLED & Joystick Navigation
The rear-facing high-contrast OLED screen displays battery life, shot count, game timer, and firing mode. The intuitive 5-way joystick lets you modify firing modes in seconds without taking the grips off.
Tool-Less Lever Lock Feedneck
DYE upgraded the feedneck with an all-metal cam lever lock. It clamps loaders like the Spire V or Rotor R2 securely with zero loader wiggle and zero thumb screws required.
Additionally, the trigger guard on the DSR+ has been enlarged significantly compared to the original DSR. Players with larger hands or those wearing thick winter tournament gloves can easily walk the blade or deuce trigger without knocking knuckles against the front frame.
8. Head-to-Head Showdown: Dye DSR+ vs. The Competition
How does the Dye DSR+ compare against its main rival, the Planet Eclipse Gtek 180R, and DYE’s own flagship MXR? Here is our side-by-side benchmark comparison featuring live pre-qualified pricing:
Choosing between the Dye DSR+ and the Planet Eclipse Gtek 180R is the single most common dilemma for tournament speedballers with a ~$1,100 budget. Both markers dominate divisional play, but they win on completely different engineering philosophies:
- Lower Operating Pressure (115 PSI vs. 120 PSI): Produces a noticeably softer, quieter, and more cushioned shot signature with virtually zero muzzle kick.
- The Flex SFR Flow Restrictor: Allows user-level tuning of forward bolt stroke speed; the 180R has a fixed solenoid exhaust rate.
- Superior Hourglass Grip Ergonomics: The sculpted UL-45 frame feels substantially slimmer in the web of your hand, providing better snap-shooting agility for small and medium hands.
- Flex Face Rubber Bolt Tip Standard: Over-molded compliant tip cradles brittle tournament paint with unmatched gentleness.
- Tool-Less Eye Cover Servicing: The 180R allows you to clean eye sensors and detents instantly without hex keys (the DSR+ requires removing screws).
- S63 PWR Multi-Insert Barrel Out of the Box: The 180R includes an 8.5″ insert barrel back, whereas the DSR+ includes a single two-piece Core barrel back (.688).
- Slightly Wider Foregrip Spacing: Players with very large hands or those who favor extended arm stances often prefer the wider distance between grip and foregrip.
- Marginally Simpler Drivetrain O-Ring Count: The OP-R Core has fewer dynamic seals than the ARC+ engine.
The Armorer Recommendation: If your priority is shot feel, acoustic silence, and slim ergonomic handling, buy the Dye DSR+. If your priority is tool-less field maintenance and having a multi-bore barrel kit out of the box, buy the Gtek 180R.
9. Who It’s Built For vs. Who Should Skip It
- Competitive Tournament Speedballers: Players competing in divisional X-Ball or 5-Man leagues who want pro-level shot smoothness and laser consistency without spending $1,600+.
- DYE Ergonomics Devotees: Anyone who loves the narrow, sculpted UL-45 hourglass grip and finds blocky rectangular grip frames uncomfortable.
- Brittle Paint Shooters: Teams shooting Grade-5 tournament paint that breaks upon impact in high-pressure guns. The 115 PSI ARC+ with Flex Face tip gently cradles brittle paint.
- Electro & Mechanical Crossover Competitors: Players who want one marker that can run 10.5 BPS NXL ramping on Saturday, then swap to the mechanical frame in 3 minutes for classic Sunday 10-Man events.
- Casual Weekend Rec-Ballers on a Budget: If you only play once every two months, spending $1,050 is unnecessary. A Planet Eclipse Etha 3M ($399) or Etha 3 ($549) gives you 90% of the field performance at half the price.
- Milsim & Tactical Woodsball Purists: If you want Picatinny rails, tactical stocks, and magazine feeding, look at the Planet Eclipse EMF100.
- Players Who Dislike 9V Batteries: The DSR+ uses standard 9V batteries. If you want DYE’s newest AA-powered system with joystick freewire connectors, consider the flagship Dye MXR.
10. Mechanical Modularity: The DSR+ Mech Frame Swap
One of the most appealing aspects of the DSR+ platform is its mechanical crossover capability. DYE engineers specifically designed the DSR+ body and manifold routing to accept the optional DSR+ Mechanical Frame.
Unlike aftermarket modifications on older platforms, swapping between the electronic frame and the mechanical frame requires only removing the two grip-frame screws and disconnecting the manifold interface. There are zero air hoses to cut or solenoids to unplug. Once installed, the mechanical frame utilizes an ultra-crisp pneumatic valve that delivers up to 11–12 BPS of mechanical semi-automatic fire, making the DSR+ an absolute terror in classic 10-man mechanical tournaments like the Iron City Classic (ICC).
11. Frequently Asked Questions (FAQ)
The IM Pro Upgrade Kit ($174.95): Is it actually necessary for the Dye DSR+?
No. The stock Dye DSR+ already operates at an ultra-low 115 PSI with an incredible ±1.9 FPS consistency. You DO NOT need the IM Pro Kit out of the box for regional or local tournament play. The IM Pro kit adds the updated Flex bolt guide, lever-latch aluminum eye pipe, and refined air volume chambers. You should only purchase it if you are competing in national NXL events in freezing sub-40°F weather where the aluminum eye pipe adds extra drop insurance against accidental eye pipe fractures.
Dye DSR+ vs. Planet Eclipse Gtek 180R: Which mid-tier tournament marker should you buy?
Choose the Dye DSR+ ($1,050.00) if your highest priorities are shot softness (115 PSI operating pressure), acoustic silence, custom forward bolt tuning via the Flex SFR, and the slim, sculpted UL-45 hourglass grip frame. Choose the Planet Eclipse Gtek 180R ($1,095.00) if you prioritize completely tool-less eye cover servicing (the DSR+ requires screws), the multi-bore S63 PWR insert barrel system out of the box, and a slightly wider foregrip spacing.
What is the verified MSRP of the Dye DSR+ in 2026?
In 2026, the factory MSRP for a brand-new Dye DSR+ in box is $1,050.00 USD. Current street prices typically hover around $995 to $1,050 USD, while verified used models on secondary tournament gear markets trade between $650 and $750 USD.
What operating pressure does the Dye DSR+ run at?
The Dye DSR+ operates at an ultra-low 115 PSI driven by the Hyper 6 inline regulator and ARC+ bolt engine. This low pressure contributes to its signature soft, quiet ‘thump’ shot signature and exceptional brittle-paint handling.
How does the Flex Solenoid Flow Restrictor (SFR) work?
The Flex SFR allows users to independently tune the exhaust airflow rate during the bolt’s forward stroke. Turning the SFR adjustment clockwise slows the forward bolt velocity to create an ultra-cushioned shot with virtually zero muzzle rise, while opening it up provides a crisper, snappier cycling feel.
Can the Dye DSR+ be converted into a mechanical marker?
Yes. DYE engineered the DSR+ with mechanical modularity in mind. Players can install the optional DSR+ Mechanical Frame in under 3 minutes to compete in the Iron City Classic (ICC) or NXL Mechanical 10-Man events.
12. Final Field Verdict: The Benchmark Mid-Tier Speedball Marker
Dye DSR+ Armory Benchmark Score
At a verified 2026 MSRP of $1,050.00, the Dye DSR+ achieves what few paintball markers manage: it delivers the plush, vibration-free shot feel of a top-tier flagship marker at an accessible price. With the low-pressure 115 PSI ARC+ spool engine, customizable Flex SFR tuning, foolproof Flex Face bolt tip, and ergonomic UL-45 frame, the DSR+ remains our #1 recommendation for serious divisional tournament players.
