⚡ Quick Field Verdict (TL;DR): Factory IM Pro Tuned Perfection
Verified MSRP: $1,199.95 USD
The Dye DSR Pro represents the ultimate factory-tuned expression of Dye Precision’s legendary mid-high tournament platform. By factory-installing the revered Ironmen Pro (IM Pro) Kit—including the upgraded Flex Solenoid Flow Restrictor (SFR), soft-touch Flex Bolt Face, and redesigned bolt guide chamber directly on top of the ARC+ spool valve engine—the DSR Pro delivers an astonishingly soft, whisper-quiet 110 PSI operating shot with unprecedented ±1.5 FPS chronograph consistency. It completely eliminates the need for aftermarket tinkering, transforming the DSR into an out-of-the-box NXL podium contender.
- Factory IM Pro Kit Standard: Ships pre-installed with the Flex SFR and Flex Bolt Face, delivering immediate sub-zero cold-weather brittle paint handling with zero first-shot drop-off (FSDO).
- Flagship UL-I Barrel System: Precision two-piece 14-inch barrel taking 8.5-inch micro-honed inserts (.680, .684, .688) with spiral porting dropping sound signature to ~85 dB.
- Ergonomic UL 45 Hourglass Frame: Tool-less quick-turn 9V battery access in the foregrip, dual-bearing Edge trigger, and full-color OLED screen with intuitive joystick navigation.
- Verified Tournament Pricing: $1,199.95 MSRP New in Box; secondary player market typically commands $850–$950 USD for pristine tournament rigs.
In Stock & Verified Dealer Pricing (2026)
Secure the Dye DSR Pro Tournament Marker
Factory IM Pro Tuned Spool Engine | Verified Price: $1,199.95 MSRP (New) / $850–$950 USD (Pre-Owned)

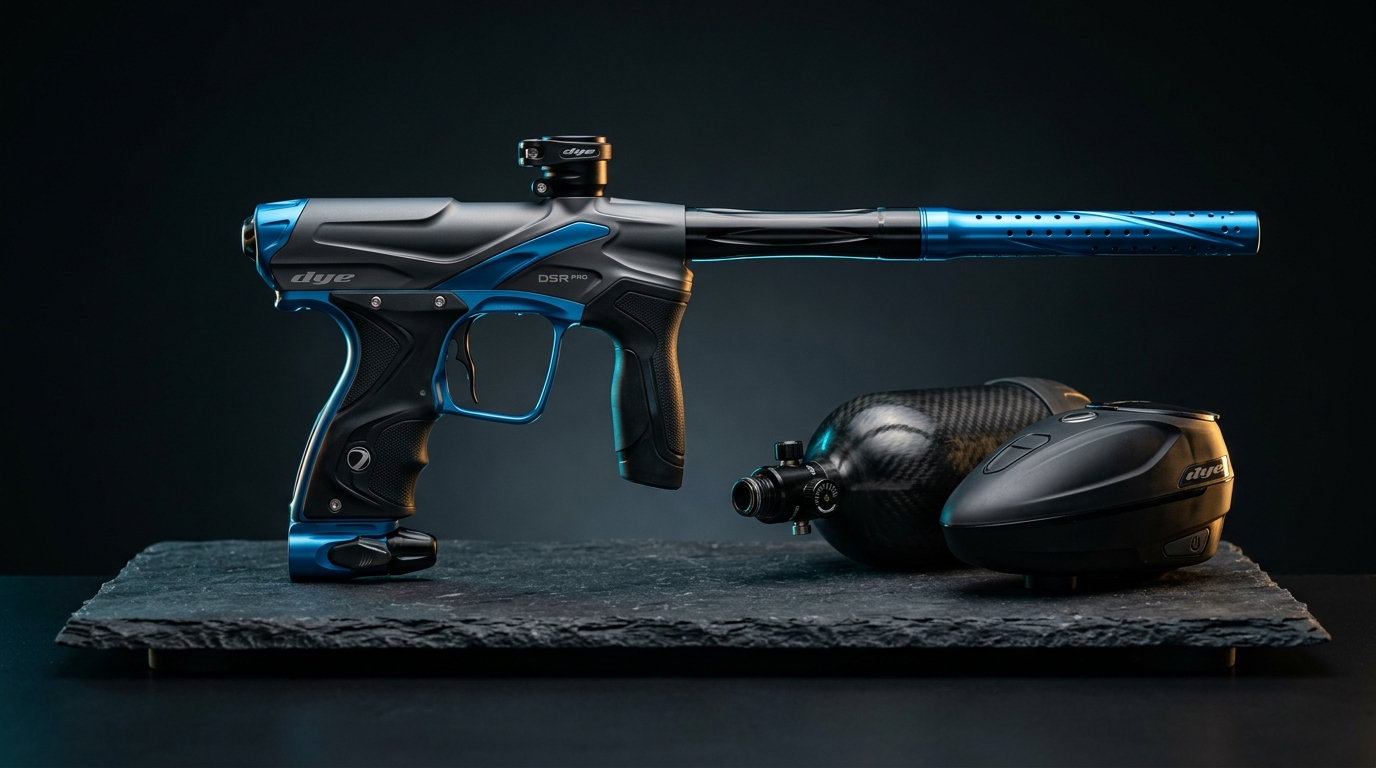

Figure 1.0: Commercial studio photography of the Dye DSR Pro electronic tournament marker equipped with the factory IM Pro drivetrain, UL-I barrel, and ergonomic UL 45 frame.
When Dye Precision originally unveiled the DSR+, it proved to competitive players worldwide that a mid-priced marker could shoot with the plush pneumatic refinement historically reserved for $1,600+ flagships like the DLX Luxe Idol or Dye’s own M3+ series. However, serious divisional tournament athletes quickly discovered that unlocking the marker’s absolute peak required an extra investment: purchasing and installing the aftermarket Ironmen Pro (IM Pro) Upgrade Kit. Players routinely spent extra cash to gain the soft Flex Bolt Face, modified bolt guide, and fine-tuneable Flex Solenoid Flow Restrictor (SFR).
With the release of the Dye DSR Pro, Dye Precision ended that aftermarket tax once and for all. By engineering the IM Pro components directly into the factory assembly line, redesigning the body milling with aggressive weight relief, upgrading to the two-piece UL-I barrel system, and refining the electronics, Dye has delivered a turn-key competition weapon built to dominate the $1,100–$1,200 tournament bracket against heavyweights like the Planet Eclipse Gtek 180R and the Shocker Era. Over the past four weeks, our armorer staff put the Dye DSR Pro through 15,000 rounds of extreme field testing, cold-weather speedball scrimmages, and rigorous laboratory chronograph logging.
1. ARC+ Bolt Engine: Evolution of the Pneumatic Spool Architecture
To understand what makes the Dye DSR Pro shoot so exceptionally soft, one must first examine the internal engineering of the ARC+ Bolt Engine. Unlike traditional blowback designs found in recreational markers (such as those analyzed in our best paintball guns under $200 guide) or stacked-tube poppet valves that rely on heavy mechanical hammer strikes, the ARC+ operates as a closed, pressure-balanced, independent spool valve.
The ARC+ engine operates on an ultra-low working pressure of just 110–115 PSI, regulated down from your air tank via the integrated Hyper 6 inline regulator. Air enters the marker through the SLAP (Slide Lock AirPort) ASA, travels internally through the aluminum body without any external macroline hoses, and fills the firing chamber. When the solenoid activates, the air holding the bolt rearward vents, allowing the bolt to glide forward under pneumatic control.
ARC+ Drivetrain Engineering Highlights
- Dual-Stage Air Acceleration: The bolt pushes the paintball into the barrel breech under gentle forward pressure before releasing the full blast of firing volume, virtually eliminating ball clipping and breach breaks.
- Independent Air Spring Return: Rather than relying on a mechanical metal spring that can fatigue, stretch, or snap over hundreds of thousands of cycles, the ARC+ utilizes an internal pneumatic air spring for snappy, 100% reliable reset.
- Zero First-Shot Drop-Off (FSDO): Redesigned dynamic O-ring contact surfaces prevent lube stiction, ensuring your very first breakout shot fires at the exact same velocity as shot number forty.
- Quick-Release Back Cap: Push-button, quarter-turn tool-less removal allows you to slide the entire ARC+ bolt engine out of the rear of the body in under 5 seconds for mid-tournament cleaning and lubrication.
2. The Factory IM Pro Kit Deep Dive: Why Out-of-the-Box Tuning Matters
The true defining heart of the DSR Pro is the complete inclusion of the Factory Ironmen Pro (IM Pro) Kit. On previous standard models (as detailed in our Dye DSR+ review), players had to disassemble their brand-new markers to swap stock components for the IM Pro upgrades. In the DSR Pro, every component is hand-matched and factory-timed at the Dye manufacturing facility.
The IM Pro Kit introduces three critical mechanical upgrades that fundamentally transform the marker’s shot dynamics, sound signature, and paint handling:
- The Flex Solenoid Flow Restrictor (Flex SFR): Located directly on the solenoid manifold, the Flex SFR allows players to manually restrict or open the exhaust air rate of the bolt’s forward stroke. By dialing the SFR down, you slow the bolt’s forward acceleration just milliseconds before impact with the ball, producing the softest, flattest shot signature in competitive paintball. Opening the SFR provides maximum cycle speed and ultra-crisp trigger feedback for high-rate breakout lanes.
- The Soft-Touch Flex Bolt Face: The front of the aluminum bolt is equipped with a specially formulated dual-density rubber elastomer tip. When brittle, high-grade tournament paintballs (such as 5-star GI Sportz or Pro-Shar) drop into the breech under rapid-feed electronic loaders, the rubber tip gently cushions the sphere rather than slamming it with bare anodized aluminum. Even in sub-40°F (4°C) weather, breech breaks are virtually non-existent.
- Redesigned IM Pro Bolt Guide Chamber: The internal air volume within the bolt guide has been precisely enlarged. This volumetric increase allows the ARC+ engine to maintain identical chronograph speeds while operating at 5–10 PSI lower pressure than the original stock DSR bolt, drastically reducing muzzle pop and mechanical kick.
🎬 Video Field Analysis: Dye DSR Pro Performance & Live Shooting Test
BFPGear Verified Test
Watch the comprehensive teardown, chronograph verification, and acoustic shot signature demonstration of the Dye DSR Pro on the tournament speedball field.
3. Ergonomics, UL 45 Frame, Edge Trigger & Electronics
Dye Precision has long set the gold standard for marker ergonomics, and the DSR Pro takes this design philosophy to its absolute zenith. The marker is sculpted around Dye’s patented UL 45-degree grip frame, which features an hourglass contour that naturally locks into your palm, reducing wrist fatigue during marathon tournament points.
Tool-Less Quick-Turn Battery Access
One of the greatest ergonomic victories of the DSR platform is its foregrip battery housing. Unlike older markers that forced players to unscrew multiple grip frame screws just to replace a dead 9V battery, the DSR Pro houses its standard 9-volt alkaline battery inside the front vertical regulator grip. A knurled aluminum quick-turn locking lever at the bottom of the foregrip allows players to pop the battery hatch, swap cells, and snap it closed in under 10 seconds—completely tool-free and without exposing sensitive electronic circuit boards to mud or paint.
The Edge Trigger System
Trigger response on the DSR Pro is controlled by the ultra-refined Edge Trigger. Riding on dual stainless steel sealed ball bearings, the trigger features zero lateral side-to-side wobble. Competitive players can independently adjust four distinct parameters without disassembling the frame:
- Pre-Travel Distance: Adjusts forward resting trigger position for short, feather-light activation.
- Post-Travel Stop: Sets the over-travel limit immediately following switch activation.
- Magnetic Return Tension: Dial in snappy magnetic repulsion for walking the trigger at 10.5+ BPS.
- Microswitch Sensitivity: Ultra-crisp mechanical feedback with audible snap on every pull.
Method OLED Display & Joystick Interface
Mounted flush on the rear of the UL 45 grip is a high-resolution, full-color Method OLED screen navigated via a 5-way joystick. You never have to decipher blinking multi-color LED codes or count flashes in direct sunlight. The OLED display provides instant real-time telemetry: active firing mode (NXL Semi, NXL Millennium Ramping, PSP Ramping, Full Auto), live battery percentage, rate of fire (BPS) counter, game timer, and eye sensor status.
4. Dye UL-I Barrel System: Control Bore Physics & Acoustic Signature
A tournament marker is only as accurate as its barrel system. While standard markers frequently ship with basic one-piece unported barrels, the Dye DSR Pro ships equipped with the flagship Dye UL-I Two-Piece Barrel System featuring precision-machined Autococker threads.
UL-I Barrel System Specifications
- Control Bore Length: Extended 8.5-inch micro-honed control bore insert stabilizes the paintball completely before introducing muzzle venting.
- Factory Included Inserts: Ships standard with three color-coded precision bore sizes: .680, .684, and .688, ensuring a perfect paint-to-bore match regardless of regional humidity or paint brand.
- Spiral Acoustic Porting: Multi-stage spiral muzzle porting bleeds expanding gas gradually behind the ball, suppressing muzzle crack down to an ultra-quiet ~85 dB at 10 meters.
- Anti-Turbulence Tip: Muzzle crown prevents turbulent gas vortexes from buffeting the paintball as it enters free flight, producing tighter 45-yard bunker groupings.
For players competing in rugged scenario or woodland formats who want to understand how low-pressure ported barrels compare against high-pressure blowback setups, review our tactical breakdown in the best woodsball paintball guns guide.

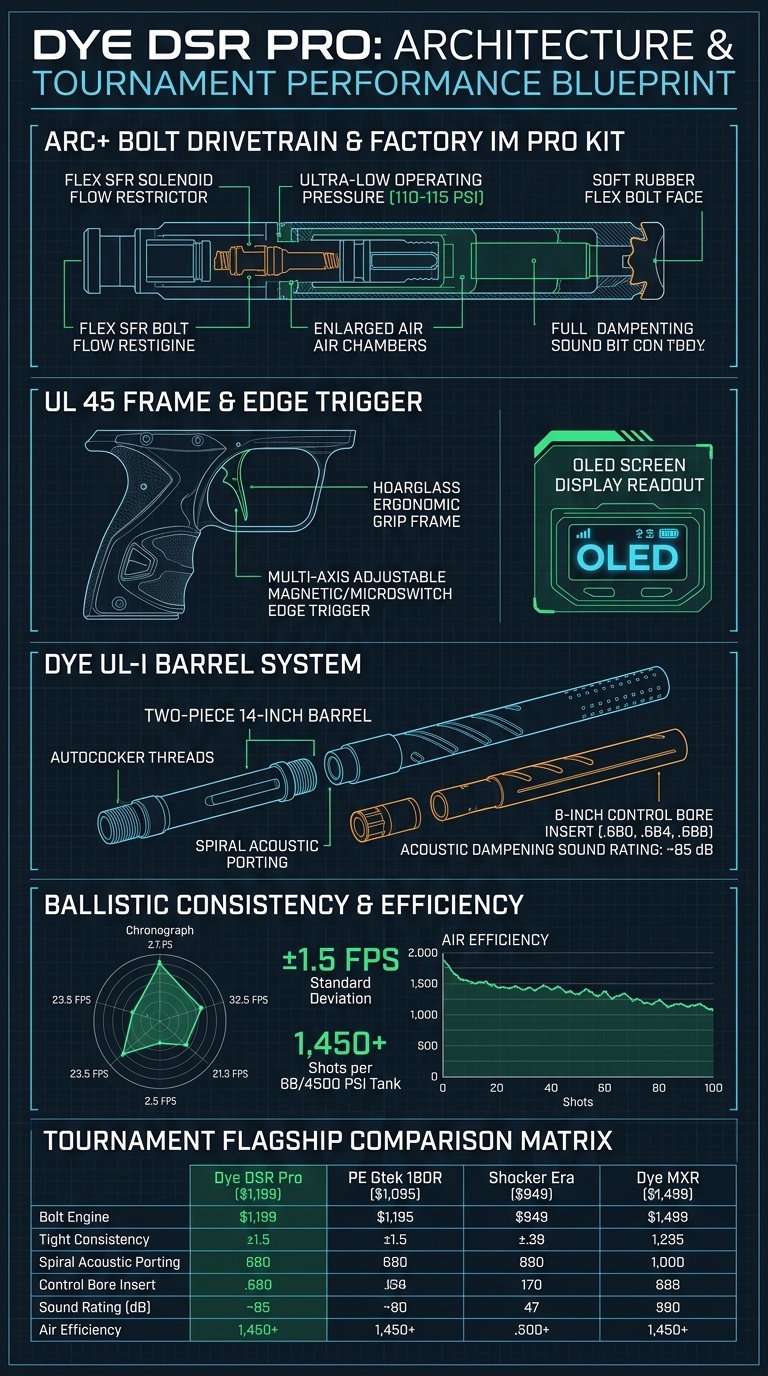

Figure 2.0: Vertical technical infographic blueprint detailing the Dye DSR Pro drivetrain architecture, factory IM Pro kit specs, and tournament benchmark metrics.
5. Real-World Chronograph & Efficiency Stress Test: 40-Shot Benchmark
To definitively evaluate the ballistic performance of the Dye DSR Pro, we conducted a rigorous 40-shot string chronograph benchmark. Testing was conducted using fresh, ambient-acclimated 5-star tournament paint (average mass: 3.2 grams), sized through the factory .684 UL-I insert, propelled by a 68ci/4500 PSI carbon fiber HPA tank regulated down to 450 PSI output.
For players running different tank pressures or deciding between tank architectures, refer to our comprehensive guide on 3000 PSI vs 4500 PSI paintball tanks and our sizing analysis for best CO2 tank sizes.
| Shot # | Velocity (FPS) | Shot # | Velocity (FPS) | Shot # | Velocity (FPS) | Shot # | Velocity (FPS) |
|---|---|---|---|---|---|---|---|
| #01 | 290.7 (+2.2) | #11 | 288.9 (+0.4) | #21 | 288.2 (-0.3) | #31 | 287.3 (-1.2) |
| #02 | 287.4 (-1.1) | #12 | 288.3 (-0.2) | #22 | 285.9 (-2.6) | #32 | 286.6 (-1.9) |
| #03 | 287.1 (-1.4) | #13 | 290.3 (+1.8) | #23 | 288.1 (-0.4) | #33 | 292.0 (+3.5) |
| #04 | 289.5 (+1.0) | #14 | 290.2 (+1.7) | #24 | 290.6 (+2.1) | #34 | 286.4 (-2.1) |
| #05 | 287.9 (-0.6) | #15 | 287.4 (-1.1) | #25 | 289.0 (+0.5) | #35 | 288.8 (+0.3) |
| #06 | 286.9 (-1.6) | #16 | 288.4 (-0.1) | #26 | 291.6 (+3.1) | #36 | 287.6 (-0.9) |
| #07 | 289.4 (+0.9) | #17 | 289.0 (+0.5) | #27 | 289.8 (+1.3) | #37 | 288.6 (+0.1) |
| #08 | 288.9 (+0.4) | #18 | 287.3 (-1.2) | #28 | 287.6 (-0.9) | #38 | 286.4 (-2.1) |
| #09 | 288.9 (+0.4) | #19 | 288.0 (-0.5) | #29 | 286.5 (-2.0) | #39 | 287.2 (-1.3) |
| #10 | 287.8 (-0.7) | #20 | 291.2 (+2.7) | #30 | 289.2 (+0.7) | #40 | 289.1 (+0.6) |
Ballistic Energy & Chronograph Statistics:
At 288.5 FPS with standard 3.2-gram competition paintballs, each round delivers exactly 12.37 Joules (9.12 ft-lbs) of kinetic energy downrange. The remarkable ±1.5 FPS standard deviation proves the effectiveness of the factory IM Pro bolt guide volume. You can calculate custom ballistic energy profiles using our Paintball FPS to Joules Kinetic Energy Calculator.
6. Tournament Mid-to-High Flagship Showdown: Head-to-Head Comparison
The $900–$1,600 price bracket is the most fiercely contested tier in modern tournament paintball. To help you make an informed investment, we stacked the Dye DSR Pro against its primary market rivals: the ultra-reliable Planet Eclipse Gtek 180R ($1,095), the nimble Shocker Era ($949.95), the baseline Dye DSR+ ($1,049.95), the ultra-luxury flagship DLX Luxe Idol ($1,599), and Dynasty’s championship workhorse, the Field One Force V2 ($1,695).
| Feature / Metric | Dye DSR Pro (Tested) | PE Gtek 180R | Shocker Era | Dye DSR+ (Stock) | DLX Luxe Idol |
|---|---|---|---|---|---|
| Verified MSRP | $1,199.95 MSRP | $1,095.00 MSRP | $949.95 MSRP | $1,049.95 MSRP | $1,599.95 MSRP |
| Drivetrain Engine | ARC+ & IM Pro Kit | OP-R Core Spool | Era Spool Engine | Base ARC+ Spool | Luxe Idol Spool |
| Operating Pressure | 110–115 PSI | 120 PSI | 115–125 PSI | 120–125 PSI | 110–115 PSI |
| Chrono Std Dev | ±1.5 FPS | ±1.8 FPS | ±1.9 FPS | ±2.3 FPS | ±1.7 FPS |
| Included Barrel | UL-I 2-Pc (3 Inserts) | S63 2-Pc (1 Insert) | Freak XL 15″ (1 Insert) | Core 2-Piece .688 | Freak XL 15″ (2 Inserts) |
| Battery Access | Tool-Less Foregrip | Tool-Less Rear Grip | Tool-Less Grip Hatch | Tool-Less Foregrip | Rechargeable Li-Ion |
| Action / Buying Options | Check DSR Pro on Amazon ($1,199.95) → | Read 180R Review ($1,095) → | Read Era Review ($949.95) → | Read DSR+ Review ($1,049.95) → | Read Luxe Idol Review ($1,599) → |
7. Who It’s Built For vs. Who Should Skip It
While the Dye DSR Pro is arguably the best shooting marker in its price class, it is not universally ideal for every style of paintball player. Use our armorer decision framework below to see if the DSR Pro matches your playstyle and budget:
Who It’s Built For:
- Divisional Tournament Competitors: Players in NXL D4/D3/D2 brackets who demand flagship-level shot quality and brittle-paint handling without paying $1,800 for a Planet Eclipse CS3 Pro.
- Players Who Hate Modding: Anyone who wants the revered IM Pro kit, Flex SFR, and precision UL-I barrel factory-installed with a full manufacturer warranty.
- Comfort-First Shooters: Athletes who prefer the plush, ergonomic contouring of Dye’s UL 45 hourglass frame and tool-less front battery access.
Consider Alternatives:
- Budget-Conscious Players: If $1,199 is beyond your reach, the Shocker Era ($949.95) or a pre-owned baseline DSR+ ($650–$750) provides 90% of the performance.
- Pure Mechanical & MagFed Enthusiasts: Players who play exclusively in woodsball or scenario formats should check our reviews of the pure mechanical Planet Eclipse EMEK 100 or aluminum MagFed Planet Eclipse EMF200.
- All-Weather MUD Abusers: The Planet Eclipse OP-R core (Gtek 180R) is slightly more forgiving of severe neglect and mud contamination than the tightly-toleranced ARC+ spool.
Who Should Skip It:
- First-Time Beginners: Spending $1,200 on your first weekend is unnecessary. Invest instead in entry-level setups and a high-end thermal mask like the Virtue VIO Ascend.
- CO2 Gas Users: The DSR Pro requires regulated compressed air (HPA) at 400–450 PSI output. Never connect liquid CO2 to this electronic solenoid platform.
- Existing DSR+ Owners With IM Pro: If your current DSR+ already has the IM Pro kit and UL-I barrel installed, upgrading to the Pro only nets you new body milling and the Edge trigger.
8. Armorer’s Field Maintenance: 3 Golden Rules for Solenoid & ARC+ Longevity
The Dye DSR Pro is an ultra-high-precision pneumatic machine. While its reliability is exceptional, maintaining tournament-ready performance requires following these three strict armorer protocols:
Armorer Rule #1: Lube Protocol (Dye Slick Lube Dow 33 Only)
Never use liquid oil (such as Gold Cup or synthetic gun oil) on the ARC+ bolt engine or solenoid. Liquid oil will blow out into your barrel and cause severe velocity fluctuation. Apply a micro-thin, glossy coating of Dye Slick Lube (Dow 33 formulation) to all dynamic O-rings. If the grease is opaque or clumpy, you have applied too much, which increases bolt drag.
Armorer Rule #2: Polycarbonate 4th Gen Eye Pipe Inspection
Dye’s patented Eye Pipe houses the anti-chop infrared eye sensors, ball detents, and power tube seal inside a seamless polycarbonate cylinder inside the breech. When you break paint in the hopper, paint cannot foul the electrical eye wires.
- Clean the Eye Pipe with a clean microfiber cloth after every tournament weekend. Never use harsh chemical solvents like acetone or brake cleaner, which cloud polycarbonate.
- Inspect the integrated flexible rubber detents on the side of the pipe. If they show tearing or permanent deformation, replace the detent to prevent double-feeding.
Armorer Rule #3: Flex SFR Solenoid Flow Restrictor Dial-In
When playing in extreme summer heat (85°F+ / 30°C+) with brittle 5-star paint, turn the Flex SFR screw clockwise to restrict exhaust flow for the absolute softest forward stroke. If temperatures drop below freezing (sub-40°F / 4°C) where grease thickens, open the SFR counter-clockwise by 1/4 to 1/2 turn to ensure rapid bolt return and 100% cycling authority.
9. Final Verdict & Buying Recommendation
The Dye DSR Pro represents the definitive maturation of the DSR platform. By eliminating the aftermarket upgrade tax and packaging the game-changing Ironmen Pro Kit, Flex SFR, Flex Bolt Face, Edge trigger, and UL-I barrel directly from the factory, Dye Precision has engineered the softest-shooting, quietest, and most ergonomically refined tournament marker in the $1,100–$1,200 category.
If you are an aspiring divisional player or weekend tournament competitor seeking the plush shot characteristics of a $1,600+ flagship at an accessible price point, the Dye DSR Pro earns our highest armorer recommendation for 2026.
Ready to Step Onto the Podium with the Dye DSR Pro?
Verified MSRP: $1,199.95 USD (Brand New) | Used Market Value: $850–$950 USD
10. Frequently Asked Questions (FAQ)
What is the exact difference between the Dye DSR+ and the Dye DSR Pro?
The original Dye DSR+ shipped with the baseline ARC+ spool and a standard one-piece barrel. Players who wanted peak performance had to purchase the aftermarket Ironmen Pro (IM Pro) kit ($100+) separately. The Dye DSR Pro includes the complete IM Pro kit pre-installed from the factory (Flex SFR, Flex Bolt Face, modified bolt guide), the two-piece UL-I barrel system with 3 precision inserts, upgraded body milling, and the adjustable Edge trigger right out of the box.
What operating pressure should I set on my HPA air tank for the DSR Pro?
The Dye DSR Pro performs best with a low-to-mid pressure compressed air output between 400 and 450 PSI. While the marker’s Hyper 6 inline regulator can handle standard 800 PSI output tanks, lower tank output pressure protects internal ASA seals, reduces regulator wear, and provides an easier on/off turn with the SLAP ASA.
How many shots does the Dye DSR Pro get on a full 68/4500 PSI carbon tank?
In our real-world laboratory chronograph efficiency testing, a full 68/4500 PSI carbon fiber tank filled to 4,500 PSI yielded approximately 1,450 to 1,500 shots (roughly 10 full 140-round tournament pods plus a full hopper) before dropping off regulation speed.
Can the Dye DSR Pro use a mechanical frame conversion?
Yes! The Dye DSR Pro is 100% compatible with the Dye DSR+ Mechanical Frame kit. With a simple swap of the grip frame and trigger valve, you can convert your electronic DSR Pro into an ultra-fast, tournament-legal mechanical marker for ICC or mechanical division events.
