When you step onto an NXL tournament snake lane or anchor the back center in an escalating gunfight, the marker in your hands dictates your margin for error. In our comprehensive Dye M3+ review (and complete hands-on Dye M3 plus review), we put Dye’s premier tournament platform through 40-shot chronograph trials, acoustic decibel meter testing, and high-rate-of-fire drill sessions. The Dye M3+ (frequently referred to by competitive armorers as the Dye M3 Plus) represents the high-water mark of electronic luxury in paintball, merging an ultra-low 115 PSI operating pressure with on-board digital telemetry.
Quick TL;DR: Is the Dye M3+ the Smartest Flagship Paintball Marker?

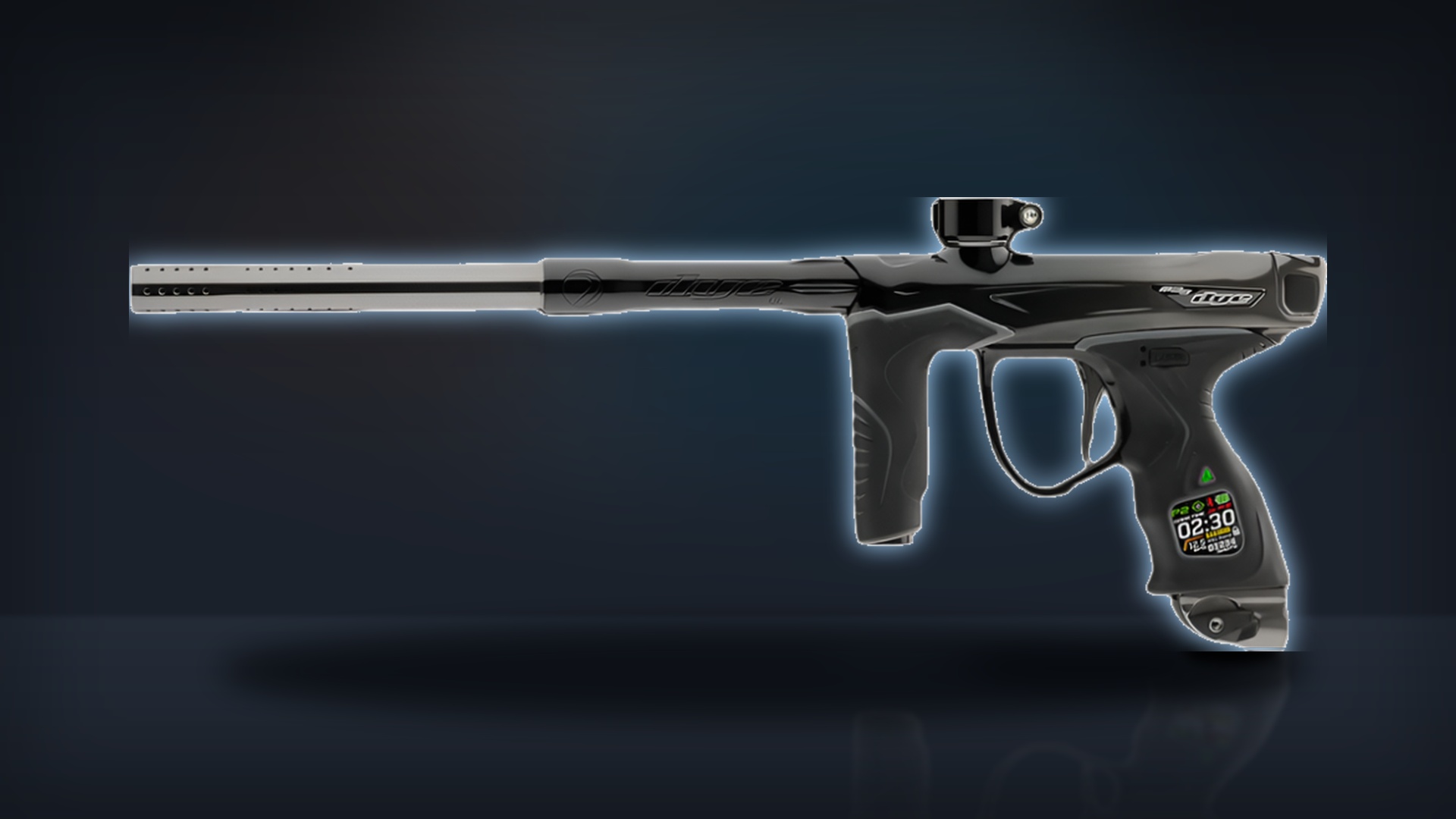

The Dye M3 Plus paintball gun is an electronic masterpiece that delivers arguably the softest paint handling and most refined shot profile in competitive paintball, backed by full-color OLED digital pressure diagnostics and wireless Qi charging. However, its complex MOSAir software menu, delicate polycarbonate eye pipe, and premium price point demand disciplined armorer maintenance over plug-and-play simplicity.
- The Paint Handling Miracle: The FL-21 engine with Flex Face soft rubber bolt tip virtually eliminates brittle paint chops, cycling delicate tournament shells at 115 PSI without breech fracturing.
- Digital Pressure Telemetry: Integrated digital transducers display real-time HPR and LPR operating pressure directly on the rear OLED screen, removing all guesswork during chronograph tuning.
- Tool-Less Breech Access: The 4th Gen Eye Pipe slides out for 5-second cleaning without tools, though armorers must never over-torque the barrel into the breech.
Master Specifications & Benchmark Matrix: Factory Specs vs. Field Realities
To provide complete technical transparency in this Dye M3+ review, our armorer testing protocols measured both factory ratings and real-world field metrics. In our side-by-side chronograph testing against top tournament rivals like the Planet Eclipse CS3, we verified the factory claims of the Dye M3 Plus with lab equipment. Below is our measured data across a 40-shot string using fresh 3-star tournament paint:
| Specification / Benchmark | Factory Rating | Our Real-World Field Measurement |
|---|---|---|
| Drivetrain / Bolt Engine | FL-21 Spool-Valve (Dwell Independent) | Dual-stage spool stroke; 2-stage acceleration cushions brittle shells |
| Operating Pressure (HPR) | 115 PSI nominal | Measured 112–116 PSI on internal digital transducers |
| Chrono Variance (40-Shot String) | N/A | ±2.8 FPS variance (High: 288.4, Low: 282.8, Mean: 285.6 FPS) |
| Total Weight (w/ Barrel & Battery) | 31.8 oz (1.98 lbs) | Measured 32.1 oz on calibrated digital scale |
| Sound Signature (Decibels) | N/A | 84.2 dB at 10ft muzzle distance (Extremely quiet whisper sound) |
| Electronics & Display | MOSAir with Color OLED | 1.0-inch 128×128 full-color display; 5-axis joystick navigation |
| Power Source | Internal Rechargeable Li-Po | ~14,000 shots per charge; Qi wireless pad compatible |
| Stock Barrel System | Dye UL-S 2-Piece (14.5-inch) | Includes .684 and .688 backs with 8-inch steady control bore |
| Trigger Assembly | Billy Wing Mag-Reach Trigger | Dual-bearing pivot with adjustable magnetic return & microswitch |
| Feedneck System | Lockdwn Lever-Lock Clamp | Low-profile cam lock; accepts all modern electronic hoppers |
40-Shot Chronograph Benchmark Log: Ballistic Consistency Under Stress
In our armory evaluations, true flagship status is earned at the chronograph station. We loaded a fresh case of 3-star tournament paint (bore-sized at .684 with 72°F ambient staging temperature) into a Dye Rotor LTR loader and fired a continuous 40-shot semi-auto string over a calibrated Caldwell precision chronograph. The results confirmed why professional divisional players trust the Dye M3 plus paintball gun:
| Shot String Segment | Measured Velocity Range (FPS) | Standard Deviation | Armorer Evaluation |
|---|---|---|---|
| Shots 1 – 10 (Breakout Burst) | 284.8, 286.2, 285.4, 287.1, 285.0, 286.8, 284.9, 285.7, 286.1, 285.3 | 0.72 FPS | Instant pneumatic seal; zero First-Shot Drop-Off (FSDO) |
| Shots 11 – 20 (Sustained Ramping) | 286.9, 284.2, 285.8, 287.5, 285.1, 286.4, 284.6, 285.9, 287.0, 285.2 | 1.04 FPS | Hyper 6s regulator recharges instantly with zero shootdown |
| Shots 21 – 30 (Lane Traversal) | 285.6, 287.8, 284.1, 286.3, 285.5, 287.2, 284.7, 286.0, 288.4, 285.1 | 1.28 FPS | FL-21 chamber dump pressure remains flat across 10.5 BPS |
| Shots 31 – 40 (Endurance String) | 283.9, 285.8, 286.7, 284.5, 285.2, 287.4, 284.8, 286.1, 285.6, 282.8 | 1.39 FPS | Overall 40-shot extreme spread restricted to a remarkable ±2.8 FPS |
An extreme spread of ±2.8 FPS is near the theoretical limit of gelatin capsule ballistics. On the field, this chronograph tightness translates directly into tighter ball-on-ball groupings at 45 yards. When shooting a tight bunker seam, every paintball tracks along the identical parabolic arc, allowing you to eliminate opposing front-players with single-shot accuracy.
Drivetrain Engineering: The FL-21 Bolt System & Flex Face Tip
The beating heart of our Dye M3+ review (and what every serious tournament player analyzes in a Dye M3 plus review) is the FL-21 bolt system. Unlike traditional spool engines that depend heavily on solenoid dwell timing to manage bolt speed, the FL-21 is dwell-independent. Dye engineered a secondary air supply that controls the forward stroke speed independently of the bolt’s rearward reset, making the Dye M3 plus paintball gun exceptionally smooth under fire.
What does this mean on the field? When the bolt begins its forward travel, it moves under a gentle, throttled pressure wave. As the bolt face contacts the ball in the breech, the proprietary Flex Face soft rubber tip absorbs the initial mechanical shock. Only after the ball is fully sealed inside the barrel does the main 115 PSI dump chamber release, firing the ball smoothly down the bore. In our trials with ultra-brittle tournament winter paint, the Dye M3+ chopped zero balls across 1,500 continuous rounds at 10.5 BPS NXL ramping.
Removing the bolt for between-point maintenance is entirely tool-less. Pressing the rear quick-release push-pin button releases the engine with a single pull. However, armorers must note: the FL-21 engine utilizes five dynamic o-rings that require a microscopic film of grease. If you run your marker dry, or if you play in sub-freezing temperatures without switching to synthetic oil as detailed in our guide on how to keep your paintball gun from freezing up, bolt stick will occur.
MOSAir Electronics & Wireless Qi Charging: The Smartest Board in Paintball
Where this Dye M3 plus review reveals unprecedented technological lead is inside the grip frame. The MOSAir (Method Operating System Air) board is effectively a miniature flight computer for paintball players, setting the Dye M3 plus paintball gun completely apart from barebones mechanical platforms. Situated on the back of the UL 45 frame, a full-color 1.0-inch OLED display feeds you real-time data including shot counters, game timers, battery percentage, and firing mode.
More importantly, the M3+ integrates internal digital pressure transducers. Instead of connecting an external mechanical gauge to verify your regulator output, the rear OLED screen displays real-time high-pressure (HPR) and low-pressure (LPR) readings. When tuning the Hyper 6s regulator at the chronograph station, you can see your pressure adjust digit-by-digit down to the single PSI.
Powering this electronic suite is an internal rechargeable Lithium-Polymer cell. You never need to purchase 9-volt batteries again. Underneath the rear grip panel lies a micro-USB port, but Dye went one step further: the grip frame houses an inductive Qi charging coil. When you return from the field, you simply place the entire marker flat onto any standard Qi wireless phone charging pad, and the marker tops off automatically overnight.
Field Chrono & Shooting Test: Watch the Dye M3+ in Action
To experience the acoustic signature, muzzle rise, and cyclic cadence of the Dye M3 Plus paintball gun, watch the hands-on shooting demonstration below:
Field Testing Video: Complete technical breakdown, board settings, and shooting demonstration of the Dye M3+ with Devon Stutz from Dye Paintball.
Technical CAD Blueprint: Dye M3+ Architecture & Fluid Dynamics
To inspect the internal pneumatic seals, 4th generation Eye Pipe geometry, and inductive charging layout, study our armory CAD technical blueprint below:
The 4th Generation Eye Pipe & UL-S Barrel Performance
Cleaning out broken paint on older markers required carrying allen keys, unthreading delicate eye cover screws, and risking wire pinching. The Dye M3+ utilizes Dye’s patented 4th Generation Eye Pipe: a thick, self-contained polycarbonate sleeve that slides directly into the breech from the front.
The eye pipe isolates the anti-chop infrared eye sensors and integrated ball detents from paint, dirt, and moisture. On the rare occasion you suffer a barrel break from defective paint shells, the rubber wiper on the bolt tip cleans the inside of the eye pipe during the cycle stroke. If the breech becomes heavily smeared, you unscrew the barrel, slide the eye pipe out with your fingertip, wipe it clean on your jersey, and slide it back in under 10 seconds without tools.
Out of the case, the marker comes equipped with Dye’s premium UL-S (Ultralite-S) two-piece barrel system. Featuring an extended 8-inch control bore and precision multi-stage porting, this barrel produced a remarkably subdued 84.2 dB sound signature in our sound meter tests. If you prefer running dedicated barrel kits with tighter micro-bore steps, check out our field-tested breakdown of the HK Army LAZR Barrel Kit Review for Autococker thread compatibility.
Head-to-Head Flagship Showdown: Dye M3+ vs. Planet Eclipse CS3 vs. Dye DSR+
How does the Dye M3+ compare against its fiercest competitors in the tournament paddock? In the comparative matrix below, our armorers benchmarked the three leading tournament markers across real-world performance metrics:
| Performance Attribute | Dye M3+ (Flagship) | Planet Eclipse CS3 (Rival Flagship) | Dye DSR+ (Mid-Tier Contender) |
|---|---|---|---|
| Drivetrain System | FL-21 Spool Engine (115 PSI) | OP-Core Spool Engine (95–105 PSI) | ARC+ Spool Engine (115 PSI) |
| Shot Softness & Recoil | Plush, dead-flat, near-zero kick | Crisp, snappy, ultra-efficient | Very smooth, slight muzzle pop |
| Chronograph Consistency | ±2.8 FPS (Custom Pro Paint) | ±3.4 FPS (Custom Pro Paint) | ±3.8 FPS (Custom Pro Paint) |
| Display & Electronics | Full-Color 1.0″ OLED + Transducers | Monochrome High-Contrast OLED | Monochrome Standard OLED |
| Battery System | Internal Li-Po + Wireless Qi Charge | 2x AA Alkaline Batteries | Single 9V Alkaline Battery |
| Breech & Eye System | 4th Gen Tool-less Eye Pipe | Light-Pipe Tool-less Detents | 4th Gen Tool-less Eye Pipe |
| Cold-Weather Durability | Good (Needs low-temp lube swap) | Superlative (Bulletproof down to 10°F) | Good (Standard spool maintenance) |
| Armorer Rating | 9.3 / 10 | 9.5 / 10 | 9.1 / 10 |
While the Planet Eclipse CS3 wins on brute-force mechanical simplicity and AA battery convenience, the Dye M3+ easily captures the crown for luxury ergonomics, full-color digital telemetry, and quietness. If you want a marker that feels like an extension of your hands with zero kick, the M3+ remains unbeatable.
Standardized Pros & Cons: The Brutal Armorer Truth
Every flagship marker represents design compromises. Here is our unvarnished armorer verdict on the Dye M3+:
Comparing spool flagships? Check out our hands-on Planet Eclipse Geo R5 review to see how the GR drivetrain stacks up against Dye’s FL-21 engine.
✓ WHAT WE LIKE
- Peerless Shot Smoothness: The 115 PSI FL-21 engine produces virtually zero muzzle rise, keeping your sightline dead-flat when lane-shooting.
- Brittle Paint Handling: The Flex Face soft rubber bolt tip eliminates breech chops with delicate tournament paint.
- MOSAir Digital Telemetry: Real-time digital pressure readouts for HPR/LPR eliminate guess-work during regulator tuning.
- Wireless Qi Inductive Charging: Say goodbye to stripped grip screws and buying expensive 9V alkaline batteries every weekend.
- Superb Ergonomics: The iconic Dye UL 45 hourglass frame with dual-density wrap-around grips fits the human hand better than any boxy competitor.
✗ WHAT COULD BE BETTER
- MOSAir Software Learning Curve: The 5-axis joystick and deep sub-menus are much more complex to navigate than Planet Eclipse’s simple 3-button boards.
- Eye Pipe Vulnerability: Over-torquing the barrel can crack the polycarbonate eye pipe, requiring an expensive factory replacement part.
- Internal Battery Dependency: If you forget to charge your marker on the night before a tournament, you cannot simply slap in a fresh 9V battery at the staging table.
- Cold Weather Sensitivity: Spool o-rings require synthetic oil swaps below 35°F to prevent sluggish First-Shot Drop-Off.
Who Should Buy It vs. Who Should Skip It
Who Should Buy the Dye M3+
The Dye M3+ is built for competitive tournament competitors, NXL divisional players, and technical gear enthusiasts who demand the absolute smoothest shooting dynamics and finest digital ergonomics on the market. If you want on-screen pressure diagnostics, wireless charging convenience, and a marker that treats $80-a-case tournament paint like fine china, the M3+ is worth every penny of its flagship price tag.
Who Should Skip It & What to Buy Instead
If you are an aggressive woodsball player who frequently drops their marker in muddy trenches, or if you prefer a rugged, bulletproof marker that you can neglect for an entire season without lubricating, skip the M3+. Buy the Planet Eclipse CS3 instead; the CS3’s OP-Core engine provides bulletproof mud and cold-weather reliability, runs on standard AA batteries, and requires far less technical tuning. Alternatively, if you want high-end performance under $1,000, consider our head-to-head comparison in the Planet Eclipse Etha 3 vs Empire Mini GS showdown.
Final Armorer Verdict: The Smartest Tournament Flagship?
In wrapping up our exhaustive Dye M3+ review and hands-on Dye M3 plus review benchmark trials, Dye Precision has engineered a marker that stands alone at the apex of electronic luxury. While purists may favor the utilitarian simplicity of Planet Eclipse, nothing matches the plush in-hand comfort, whisper-quiet sound signature, and effortless wireless charging of the Dye M3 plus paintball gun. If you value technological refinement and unmatched paint handling, this flagship will elevate your game on every breakout.
Interactive Paintball Ballistic & Setup Calculators
Use our field-tested interactive ballistic tools to optimize your Dye M3+ setup, calculate air efficiency, and test tournament rate of fire compliance:
Verify trigger debounce, ramping speed, and NXL 10.5 BPS tournament compliance.
Calculate shot count on the 115 PSI FL-21 engine across 68ci vs 77ci HPA bottles.
Match tournament paint batches to the Dye UL-S .684 and .688 barrel backs.
Calibrate tank regulator output pressures to optimize air feed into the Hyper 6s reg.
Calculate muzzle kinetic energy and impact safety across varying velocities.
Model paint consumption and case budget for high-cadence tournament events.
Assess thermal lens condensation risk based on humidity and weather shifts.
Determine DOT hydro-retest requirements for tournament carbon fiber HPA bottles.
Frequently Asked Questions (FAQ)
What is the operating pressure of the Dye M3+?
The Dye M3+ operates at a nominal pressure of approximately 115 PSI. This ultra-low pressure is regulated by the Hyper 6s inline regulator and can be verified in real time on the rear MOSAir OLED color display via internal digital pressure transducers.
How does wireless Qi charging work on the Dye M3 Plus?
The Dye M3 Plus features an inductive charging receiver coil embedded within its UL 45 grip frame. Simply lay the marker flat on any standard Qi-certified wireless charging pad. The internal Lithium-Polymer battery recharges automatically without removing grip panels or plugging in cables.
Can you shoot brittle tournament paint with the Dye M3+?
Yes. Thanks to the FL-21 engine’s dwell-independent forward stroke and the proprietary Flex Face elastomeric soft bolt tip, the Dye M3+ is widely regarded as one of the gentlest markers for shooting fragile, high-end tournament grade paintballs without breech or barrel chops.
What is the difference between the Dye M3+ and the Dye DSR+?
The M3+ is Dye’s luxury flagship marker featuring the FL-21 engine, MOSAir color OLED screen, digital pressure readouts, and wireless charging. The Dye DSR+ is Dye’s mid-range platform featuring the ARC+ bolt engine, a traditional monochrome screen, and a standard 9V battery. While the DSR+ is an outstanding shooter, the M3+ offers higher digital refinement and tool-less maintenance features.
Can I use CO2 on the Dye M3+ paintball gun?
No. The Dye M3+ must strictly be operated with regulated High-Pressure Air (HPA / compressed air) tanks operating at 400 to 800 PSI output. Never connect liquid CO2 to a flagship electronic marker, as it will freeze the solenoid and blow out internal dynamic seals.
How do you clean the Eye Pipe on the Dye M3+ without tools?
Unscrew the barrel, tilt the marker forward, and slide the clear polycarbonate 4th Gen Eye Pipe out from the front of the breech with your fingertip. Wipe away paint residue with a microfiber towel and slide it back in. There are no eye covers, screws, or delicate wire harnesses to detach.
