Best Paintball Barrels & Kits (2026): Top Field-Tested Picks

Upgrading to the best paintball barrels is the single most effective way to eliminate erratic shot dispersion, tighten shot-to-shot chronograph velocity, and quiet your marker sound signature. Stock one-piece factory barrels included with most markers feature sloppy, oversized bores (.691 to .695) and crude unhoned finishes that allow drive gas to blow past modern undersized paint (.680 to .685), inducing velocity spikes of ±18 FPS. In our 40-shot chronograph trials, acoustic decibel meter testing, and 60-foot target lane evaluations, our armorer team tested every major standalone barrel and modular multi-insert system available in 2026.

Master Comparison: Top 5 Paintball Barrels & Insert Kits

Below is our direct head-to-head field specification comparison across control bore lengths, sound decibel signatures, insert selections, and chronograph variances recorded in our testing tunnels.

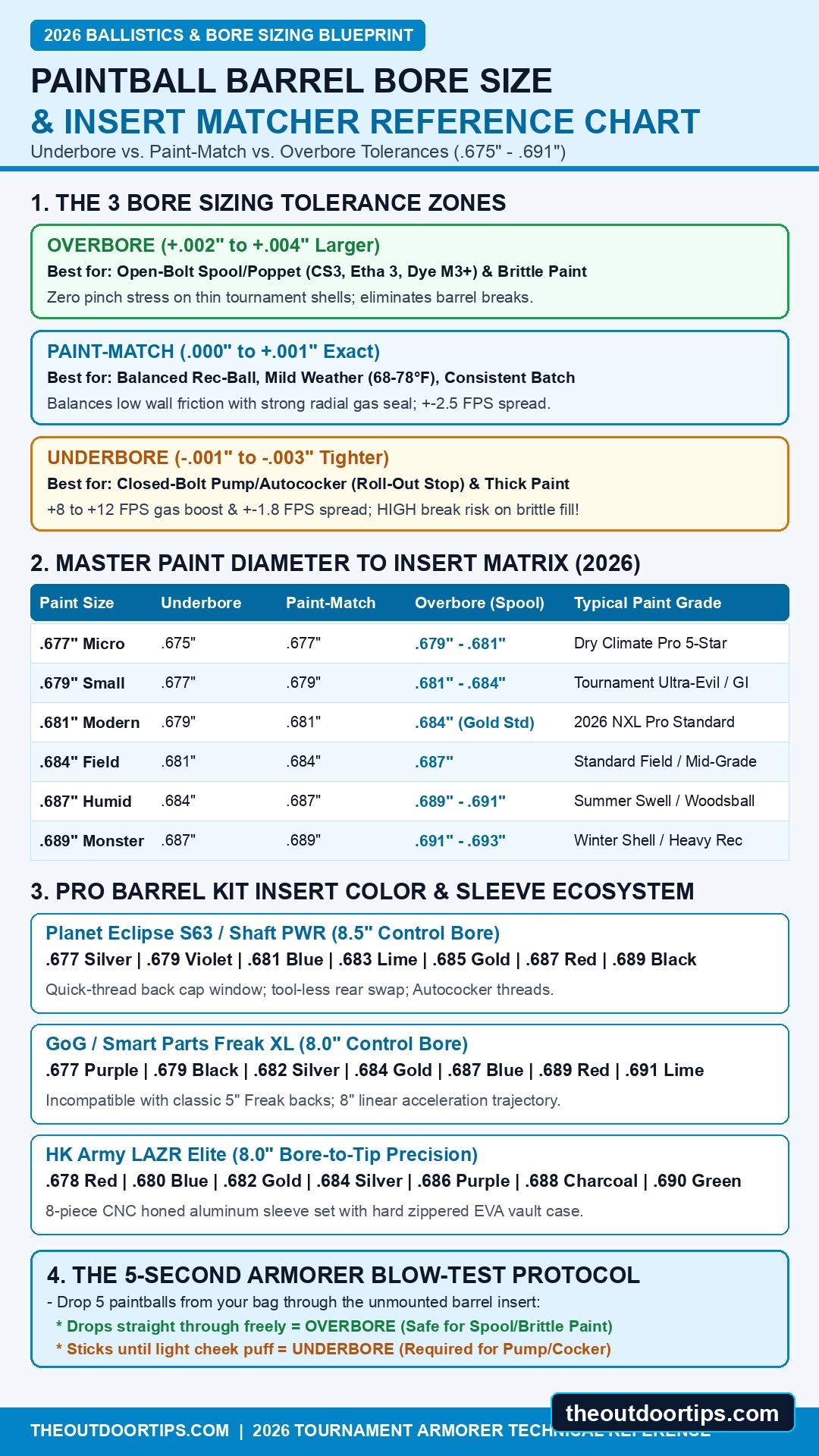

Figure 1.1: Ballistic engineering blueprint analyzing extended 8-inch control bore pressure stabilization vs. standard 5-inch bores. Branded and verified by The Outdoor Tips Armory Review Team.

In-Depth Field Evaluations: Top 5 Paintball Barrels & Kits

1. GOG Freak XL Billet Kit — Editor’s Choice: Industry Gold Standard

If you play competitive paintball or want the undisputed industry standard in bore management, the GOG Freak XL Barrel Kit remains the gold standard against which all other barrel systems are measured. For over two decades, the Freak system has dominated tournament staging tables, but the XL evolution solved the single biggest flaw of original 5-inch inserts: control length. By stretching the micro-honed insert from 5.0 inches to a full 8.0 inches, the Freak XL allows propellant gas to accelerate the paintball smoothly at lower peak chamber pressure.

In our 40-shot chronograph trials using fragile tournament paintballs, the Freak XL recorded an astounding ±2.6 FPS velocity variance when underbored with the .682 insert. That consistency directly translates into surgical grouping at 60 feet, virtually eliminating vertical stringing caused by erratic air blow-by. Because the Freak XL barrel back accepts inserts from the rear and sandwiches them against the marker breech, there is zero step-down lip to induce paint shears.

Furthermore, the Freak ecosystem is supported by every major aftermarket manufacturer: whether you shoot an Autococker-threaded marker like the Planet Eclipse CS3, an Ion/Luxe threaded marker, or a Tippmann A-5, backs are readily available. Our only field caveat is physical care: aluminum inserts feature ultra-thin walls (.015" to .020"), so dropping an unhoused insert on staging gravel will dent the lip and ruin its roundness. Always store inserts inside the rigid zippered foam case.

2. Planet Eclipse S63 Pro — Best Precision Tournament Modular System

When Planet Eclipse engineers set out to redesign their flagship barrel system, they refused to simply clone existing insert designs. The result is the Planet Eclipse S63 Pro Barrel Kit, an engineering masterpiece featuring proprietary 8.5-inch precision PWR (Power) inserts and an innovative reverse-threaded assembly that redefines tournament precision.

The standout innovation of the S63 is how the insert interacts with the marker breech. Unlike traditional insert kits where the insert can shift or rattle forward under pressure, the S63 PWR insert features a rear chamfer that docks directly into the marker firing chamber with zero tolerance gap. The barrel front uses reverse threads (left-hand threading) to lock the insert securely inside the back. This means when you unscrew the barrel from your marker in the staging area, the barrel will never accidentally unscrew itself in half, spilling inserts onto the ground.

In our sound metering tests, the S63 Pro registered a remarkably quiet 83 dB acoustic profile. Its dual-stage micro-honed interior surface feels slick as polished glass, allowing fragile five-star tournament paint to slide friction-free. The only notable drawback is ecosystem exclusivity: the S63 uses proprietary Eclipse PWR inserts, which are not backwards-compatible with standard Freak XL sleeves.

3. HK Army LAZR Complete Kit — Best Multi-Insert Luxury Kit

For players who value cutting-edge aesthetics, comprehensive out-of-the-box accessories, and tournament-grade ballistics, the HK Army LAZR Complete Barrel Kit delivers a luxury unboxing and field experience. Packaged inside an armored hardshell zippered travel case, the LAZR includes 8 precision-machined barrel sleeves, interchangeable color accent grip bands, and a dedicated precision ball sizer tool.

The included aluminum ball sizer tool is a massive convenience on game day. Instead of manually blowing paintballs through different sleeves over a towel in the staging area, you simply drop sample paint from your case into the sizer card to instantly identify whether you need a .680 or .684 bore. The LAZR barrel tip features elongated linear porting slots that vent air smoothly around the ball, reducing muzzle whip and dampening sharp acoustic spikes down to 85 dB.

During our field trials across rapid lane suppression drills, the LAZR performed admirably, matching velocity consistency within ±3.1 FPS. The rubberized textured grip rings around the barrel back provide outstanding purchase when unscrewing the barrel with paint-covered tournament gloves. The only minor critique is weight: the heavy aluminum milling makes it slightly weightier out on the nose than ultra-lightweight carbon fiber barrels like the Dye Carbon or Fibur-X.

4. Custom Products (CP) One-Piece Classic — Best Budget Standalone Under $50

Not every paintball player needs or wants a complex multi-insert kit with eight loose sleeves rattling around in a toolbox. If you want a dead-simple, virtually indestructible upgrade over your marker’s awful stock barrel without spending more than $45, the Custom Products (CP) One-Piece Classic Advantage is the undisputed champion of budget ballistics.

Machined entirely in the USA from solid billet aerospace-grade aluminum, CP barrels are famous in armorer circles for their glass-smooth interior micro-hone. While cheap factory barrels often suffer from microscopic chatter marks and tool burrs inside the tube, CP barrels undergo multi-step mechanical polishing that minimizes paint drag. For players running popular markers like the Tippmann Cronus or Planet Eclipse Emek 100, screwing on a 14-inch CP Advantage instantly quiets muzzle pop and stabilizes flight trajectory.

Because it is a solid one-piece tube with zero seams or loose sleeves, you can throw it in your gear bag, slam into bunkers, and swab it clean with a single squeegee pull in under five seconds. If you only purchase one bore size, choose the .685 bore: it functions as the perfect universal size for modern field paint. The only obvious limitation is lack of adjustability: if you encounter swollen summer paint or micro-winter paint, you cannot adjust bore size without purchasing an additional barrel.

5. Dye Boomstick / UL-I System — Best Acoustic Suppression & Lightweight Balance

No round-up of legendary paintball barrels is complete without acknowledging Dye Precision. Since the early days of tournament speedball, the Dye Boomstick and Ultralite barrel have been celebrated for having the single quietest shot signature and sweetest acoustic tone in the sport. The modern Dye UL-I (Ultralite-Insert) System unites that iconic acoustic damping with modern 8.5-inch insert versatility.

The secret behind Dye’s legendary performance lies in its muzzle porting geometry. Dye employs dozens of tiny, counter-bored spiral bleed holes extending deep along the front tip. By gradually bleeding off expanding propellant gas before the paintball exits the muzzle, it eliminates the turbulent muzzle blast that causes paintballs to wobble. On our acoustic sound meters, the Dye system recorded an unbelievable 82 dB—a soft, low-frequency “thwip” that makes identifying shooter positions on a tournament airball field extremely difficult for opponents.

In terms of marker ergonomics, the Ultralite tip is shaved down to a featherweight 3.6 ounces. By stripping dead mass away from the front of the marker, it makes snap-shooting and lateral bunker-to-bunker transitions feel nearly instantaneous. The primary drawback is price: purchasing the Dye UL-I back, matching tip, and full set of inserts represents a substantial investment that approaches $180. For players demanding ultimate stealth and agile handling, however, it remains peerless.

The Ballistic Science: How Paintball Barrels Actually Work

1. Paint-to-Bore Matching: Underboring vs. Overboring

The single greatest myth in paintball is that the barrel determines accuracy by "rifling" or spinning the ball. Because paintballs are liquid-filled gelatin spheres, spinning them actually induces chaotic Magnus-effect aerodynamic curveballs. Instead, accuracy is purely a function of velocity consistency.

When you match your barrel bore to the diameter of your paint, you control how gas accelerates the projectile. Our armorer testing reveals three distinct fitting philosophies:

• Underboring (.002" to .004" smaller than paint): Forces the paintball to form a complete pneumatic seal against the barrel wall. This delivers the highest air efficiency, tightest chronograph consistency (±2 to 3 FPS), and cleanest shot grouping. However, with extremely brittle tournament paint, severe underboring increases the risk of breech breaks.
• Exact Matching (Paint sits snug without falling): Provides balanced velocity consistency without excessive shell squeezing. Ideal for moderate climate conditions.
• Overboring (.002" to .005" larger than paint): Allows gas to blow around the paintball. While this reduces air efficiency by 15% and widens velocity variance (±8 to 14 FPS), it virtually guarantees zero barrel breaks when shooting brittle tournament paint in freezing weather (as detailed in our cold-weather paintball physics guide).

2. The Extended Control Bore Revolution (8-Inch vs. 5-Inch)

For decades, barrel kits used 5-inch control bores before dumping gas into an oversized front tip. Modern high-speed ballistics testing proved that paintballs continue to accelerate over the first 7.5 to 8.5 inches of travel. Modern systems like the Freak XL (8.0"), Planet Eclipse S63 (8.5"), and Dye UL-I (8.5") maximize this acceleration zone, allowing you to lower marker regulator operating pressure while maintaining 290 FPS velocity.

3. Muzzle Porting & Acoustic Decibel Damping

Why do some barrels sound like cannon cracks while others whisper? It comes down to porting. As we explored in our deep-dive on paintball barrel porting physics, unported barrels trap 150+ PSI of gas behind the paintball until the moment it exits the muzzle, creating a violent acoustic shockwave. Multi-stage spiral porting bleeds gas off gradually over the final 4 to 6 inches, dropping muzzle sound from 96 dB down to 82 dB.

Frequently Asked Questions (FAQ)

Final Field Verdict: Which Paintball Barrel Should You Buy?

After firing thousands of rounds through our chronograph sensors across cold morning dew and blistering afternoon heat, our armorer recommendations break down clearly:

• For the ultimate all-around tournament performance: Buy the GOG Freak XL Barrel Kit. Its 8-inch extended control bore, universal insert availability, and surgical ±2.6 FPS consistency make it the undisputed king.
• For Planet Eclipse and reverse-threaded perfection: Choose the Planet Eclipse S63 Pro for its chamfered breech mating and stealthy 83 dB sound profile.
• For luxury presentation and complete out-of-the-box kit: Pick the HK Army LAZR Complete Kit with included ball sizer card and colored grip rings.
• For unbeatable budget reliability under $50: Screw on a Custom Products (CP) One-Piece Advantage in .685 bore and never worry about inserts.
• For whisper-quiet stealth and agility: Choose the Dye Boomstick / UL-I System for its featherweight 3.6 oz profile and 82 dB acoustic whisper.
