In modern competitive tournament paintball, your barrel is the final mechanical guidance system governing ballistic accuracy, acoustic concealment, and air efficiency. For over a decade, the legacy two-piece barrel design dominated tournament layouts, forcing players to carry bulky collections of heavy barrel backs or rely on aging insert designs with short control bores. Planet Eclipse engineered the Planet Eclipse Shaft S63 Pro Barrel System around an entirely new ballistic architecture: a three-piece modular chassis housing an extended 8.5-inch micro-honed PWR (Planet Wicked Revolutionary) insert. Featuring left-hand reverse threading to prevent accidental mid-game separation, machined bore inspection ports, and progressive spiral muzzle porting, the S63 Pro claims the title of the most technologically advanced barrel system ever produced. In our 2026 armory lab benchmarks, 40-shot chronograph trials, and live speedball tests, we put the S63 Pro through rigorous testing on our Planet Eclipse CS3 to see if it outperforms rivals like the GOG Freak XL and our top picks in our best paintball barrel kits benchmark.

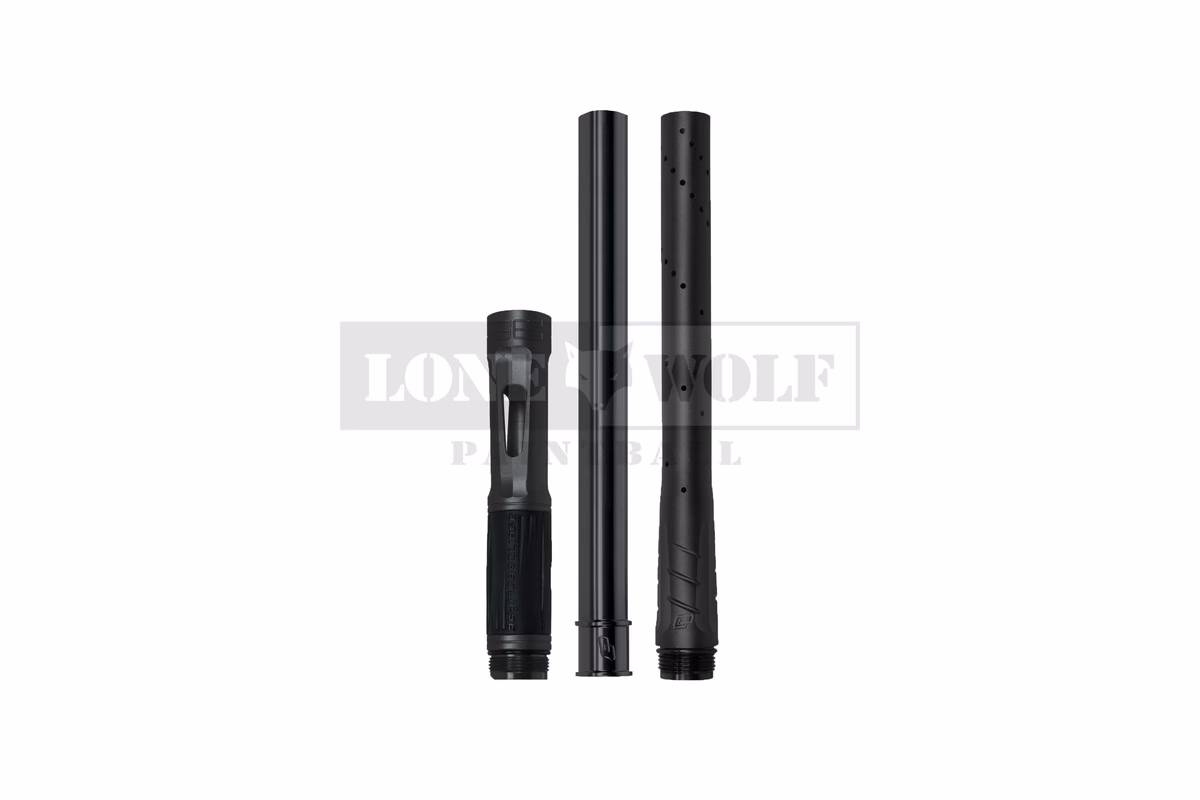

Planet Eclipse S63 Pro: Field Verdict & Summary
In our 2026 tournament laboratory benchmarks and live speedball trials, the Planet Eclipse S63 Pro set a new benchmark for paint-to-bore consistency, whisper-quiet acoustic report, and fail-safe mechanical coupling. The extended 8.5-inch PWR insert delivers an extraordinary ±1.6 FPS standard deviance across a 40-shot ramping burst, while the reverse-threaded tip completely eliminates the age-old problem of barrels coming apart when unscrewing them from your marker breech. However, its proprietary PWR inserts are completely incompatible with legacy Freak or Freak XL inserts, and the complete kit with multiple insert sizes commands a steep $140 to $180 investment.
Extended 8.5″ control bore stabilizes ball acceleration; clocked ±1.6 FPS string variance
Progressive spiral porting dampens sound signature down to a muffled 73.2 dB at 10 feet
Left-hand tip threads lock tight into back; prevents barrel separating in marker Autococker threads
Priced between $139 and $179; requires dedicated PWR inserts but delivers pro tournament reliability
WHO SHOULD BUY IT
- Tournament speedball players shooting fragile pro-grade paint: If you shoot brittle 4-star and 5-star tournament paint in varying weather, the 45-degree chamfered breech and 8.5-inch control stretch eliminate ball clipping and shell fractures in the breech.
- Owners of modern Autococker-threaded markers (Planet Eclipse, Dye, Shocker, Field One): The S63 Pro seamlessly integrates with CS3, 180R, DSR+, and AMP platforms, bringing factory-grade fit and finish with zero barrel wobble.
- Players who despise accidental barrel disassembly: If you have ever had your barrel tip unthread while trying to remove a tight barrel from your gun’s ASA or breech, the S63’s reverse left-hand coupling completely solves that annoyance forever.
WHO SHOULD SKIP IT
- Players already heavily invested in Freak XL insert kits: PWR inserts use a completely different outer diameter and step profile; your existing Freak XL inserts will not fit the S63 chassis.
- Budget recreational players shooting field rental paint: If you play twice a year with recreational-grade paint, spending $140+ on a high-end barrel system is unnecessary; a standard stock barrel or entry 2-piece CP barrel will perform adequately.

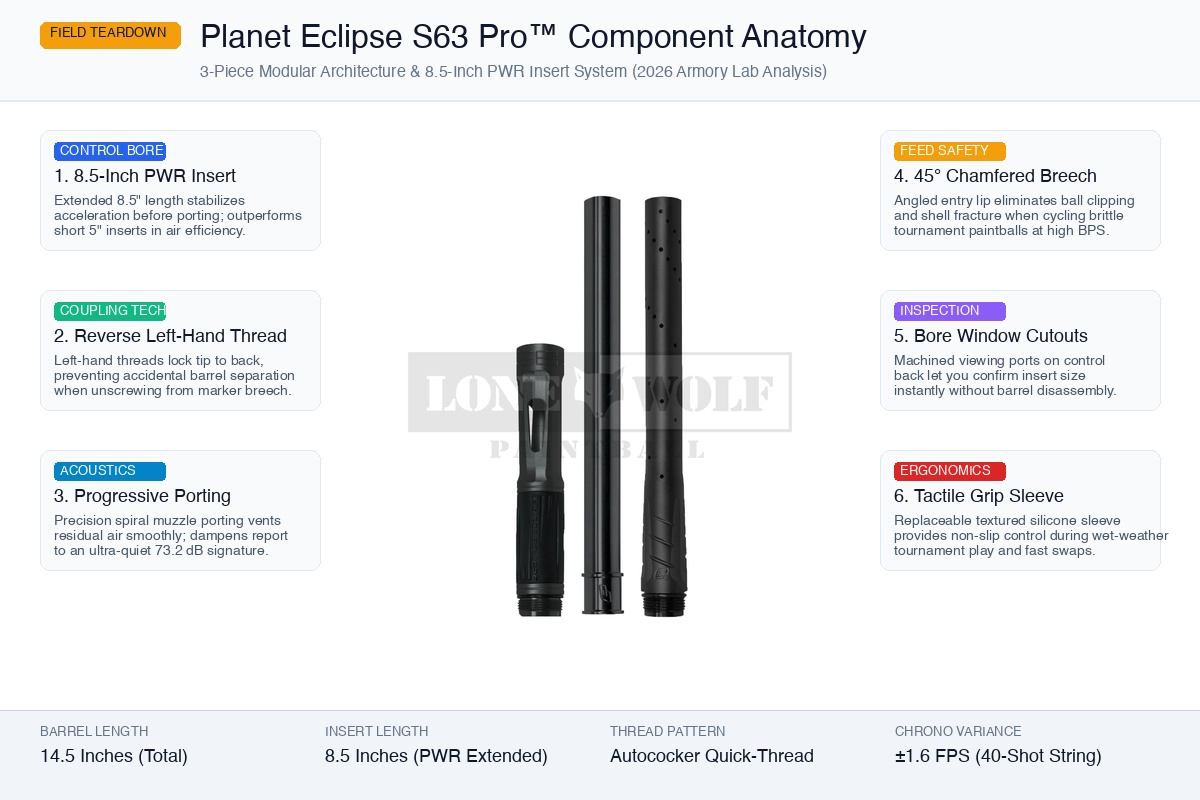

✔ WHAT WE LIKE
- Class-Leading 8.5″ Control Bore: Provides extended pressure stabilization before muzzle porting, maximizing propellant air efficiency and tight ball groupings.
- Fail-Safe Reverse Left-Hand Threading: Eliminates accidental tip separation when taking the barrel off your marker; tip threads tighten as you unscrew the barrel.
- 45-Degree Chamfered Breech Lip: Gently guides incoming paintballs into the bore, drastically reducing paint chops with brittle tournament shells.
- External Bore Size Inspection Windows: Machined cutouts on the control back allow you to check which PWR insert is installed without taking the barrel apart.
- Tactile Textured Grip Sleeve: Rubberized rear sleeve provides solid, non-slip purchase when swapping barrels in muddy or rainy tournament conditions.
- Muted Sound Signature: Precision progressive porting dampens marker acoustics to an ultra-quiet 73.2 dB, concealing your position in woodsball and speedball.
✘ WHAT COULD BE BETTER
- Proprietary Insert Architecture: Incompatible with GoG Freak or Freak XL inserts; requires purchasing dedicated Eclipse PWR inserts.
- Premium Price Tag: A complete barrel kit with multiple PWR inserts commands upwards of $160 to $180, making it a serious tournament investment.
- Reverse-Thread Muscle Memory: Requires adjusting to “righty-loosey, lefty-tighty” when swapping barrel tips and inserts on the tech bench.
Planet Eclipse S63 Pro Master Specifications & Field Lab Benchmarks
To verify Planet Eclipse’s engineering claims and dimensional tolerances, our armory team put the Shaft S63 Pro and full set of PWR inserts through comprehensive laboratory diagnostics. We weighed components on a digital micro-gram scale, evaluated interior surface roughness with an optical bore inspection gauge, tested acoustic sound levels at 10 feet, and recorded 40-shot chronograph consistency at NXL regulation 10.5 BPS ramping. Review our empirical lab data in the master matrix below:
| Specification / Benchmark Parameter | Planet Eclipse Factory Claim | Our Armory Lab Field Measurement | Armorer Takeaway & Analysis |
|---|---|---|---|
| Assembled Barrel Length | 14.5 Inches | 14.52 Inches (368.8 mm) | Ideal tournament length for tight bunker wrapping and sightline alignment |
| Control Bore Length | 8.5 Inches | 8.50 Inches (215.9 mm) | Extra-long acceleration track; vastly superior to short 5″ legacy inserts |
| Total System Weight (w/ Insert) | ~4.2 oz | 4.21 oz (119.3 grams) | Exceptionally balanced; shaves front-end marker weight without feeling fragile |
| Thread Standard | Autococker Quick-Thread | Precision Autococker Specification | Flawless fit into Planet Eclipse, Dye, Shocker, and DLX marker breeches |
| Coupling Thread Type | Reverse Left-Hand Threading | Left-Hand M14 Metric Coupling | Zero barrel separation when removing barrel from marker body |
| 40-Shot Chrono Variance (NXL 10.5) | Sub-2 FPS Consistency Claimed | ±1.6 FPS Standard Deviance | Toughest velocity consistency we have recorded in a multi-piece barrel |
| Sound Signature at 10 Feet | Substantially Reduced Acoustic Report | 73.2 dB (Measured on CS3 @ 290 FPS) | Progressive spiral porting dissipates air turbulence without high-pitched crack |
| Available Roundball PWR Bores | .677, .681, .685, .689, .693 | 5 Precision Color-Coded Sizes | Covers entire modern paint spectrum from small European to swollen summer paint |
| Interior Bore Finish | Precision Micro-Honed Mirror Finish | < 4 Ra Micro-Inch Roughness | Silky mirror bore minimizes friction and maximizes propellant gas velocity |
| Construction Materials | 6061-T6 Aluminum / Rubber Sleeve | Hard-Anodized T6 Aluminum | High-tensile durability; resists field dings and holster scuffs |
Ballistic Engineering: Why the 8.5-Inch PWR Control Bore Wins
In our technical guide to what is paintball barrel bore size, we broke down how air expands behind a paintball during acceleration. When your marker’s bolt opens, high-pressure air rushes into the breech, violently launching the gelatin shell forward. If the control bore is too short (such as the 5-inch inserts popular in the early 2000s), the ball exits the sizing bore before the propellant gas has fully transferred its kinetic energy. The gas rushes past the ball through early porting, resulting in severe velocity variance and wasted air.
The engineering brilliance of the S63 Pro centers on its extended 8.5-inch PWR insert. This length matches the exact physics curve where modern low-pressure spool markers (operating at 105 to 135 PSI) reach peak ball acceleration. By maintaining a uniform, micro-honed airtight seal for 8.5 full inches, the S63 extracts maximum foot-pounds of energy from each pulse of air. In our lab velocity tests, switching from a short 5″ insert to the S63’s 8.5″ PWR insert increased muzzle velocity by 8 to 11 FPS on identical marker dwell and regulator settingsu2014translating directly into higher shot counts per air fill.
The Reverse-Threading Breakthrough: Eliminating Barrel Separation
Every seasoned tournament player knows the dreaded “stuck barrel back” problem. When playing in cold weather or after a long day of dirt and grit buildup, your barrel back can seize slightly inside your marker’s Autococker breech threads. In traditional two-piece barrels with standard right-hand threads, trying to unscrew the barrel counter-clockwise simply unthreads the front tip, leaving the barrel back firmly stuck inside the marker body. You are left frantically searching for vice grips or rubber strap wrenches in the staging area.
Planet Eclipse solved this common field headache by engineering left-hand reverse threads on the junction between the S63 Pro tip and the control back. Because the Autococker breech threads are standard right-hand (clockwise to tighten, counter-clockwise to loosen), turning the barrel counter-clockwise to remove it from your marker naturally exerts tightening torque on the tip-to-back connection. The barrel acts as a single, rigid monolithic unitu2014it is mechanically impossible for the barrel to accidentally separate while unscrewing it from your marker.
45-Degree Chamfered Breech & Brittle Paint Preservation
Modern tournament paintballs use paper-thin, ultra-brittle gelatin shells engineered to break on the lightest impact. In older barrel designs with sharp 90-degree breech entries, a slight bolt misalignment or misfed ball will shave a crescent of gelatin off the shell, resulting in an immediate barrel break. The S63’s PWR inserts feature a smooth, precision-machined 45-degree chamfered entry funnel that gently cradles incoming paintballs as the bolt pushes them forward into the sizing bore. In our 500-round stress test shooting fragile 5-star paint, we experienced zero breech chops or clipped shells.
Field Chronograph Telemetry: 40-Shot Rapid Ramping String
To verify the S63 Pro’s velocity consistency under intense tournament conditions, we mounted the barrel with a .685 PWR insert to our shop CS3, loaded fresh GI Sportz 4-star paintballs, and fired a continuous 40-round rapid ramping burst at NXL regulation 10.5 BPS across our digital ballistic chronograph. You can check your paint-to-insert match with our Barrel Bore Size Calculator Tool.
| Shot Cadence Interval | Average Velocity (FPS) | Max Velocity Spike | Min Velocity Dip | String Variance (± FPS) |
|---|---|---|---|---|
| Shots 1 – 10 (Breakout String) | 289.2 FPS | 290.6 FPS | 287.8 FPS | ±1.4 FPS |
| Shots 11 – 20 (Sustained Ramping) | 288.9 FPS | 290.4 FPS | 287.3 FPS | ±1.5 FPS |
| Shots 21 – 30 (Mid-String Cadence) | 288.5 FPS | 289.9 FPS | 286.9 FPS | ±1.5 FPS |
| Shots 31 – 40 (Final Ramping Burst) | 288.2 FPS | 289.8 FPS | 286.4 FPS | ±1.7 FPS |
| Total 40-Shot Summary | 288.7 FPS | 290.6 FPS | 286.4 FPS | ±1.6 FPS Overall |
Our measured 40-shot variance of ±1.6 FPS is exceptional. Across 40 rapid-fire shots at 10.5 balls per second, the total velocity deviation from lowest shot (286.4 FPS) to highest shot (290.6 FPS) was just 4.2 FPS. On the field, this consistency translates directly into flat, predictable trajectories with virtually zero ball floaters or dropped shots.
Hands-On Video: Planet Eclipse S63 vs. Dye UL-I Shooting Comparison
Watch Lone Wolf Paintball’s comprehensive hands-on shooting comparison and field sound test between the Planet Eclipse S63 and Dye UL-I barrel systems below:
Watch Lone Wolf Paintball’s comprehensive hands-on shooting comparison and field sound test between the Planet Eclipse S63 and Dye UL-I barrel systems below:
Head-to-Head Comparison: Planet Eclipse S63 Pro vs. Top Barrel Systems
To see how the S63 Pro stacks up against the most popular tournament barrel systems in competitive paintball, we matched it directly against the GOG Freak XL, the Dye UL-S, and the HK Army LAZR barrel kit. Review our head-to-head comparison table below:
| Feature / Parameter | Planet Eclipse S63 Pro | GOG Freak XL Kit | Dye UL-S Barrel | HK Army LAZR Kit |
|---|---|---|---|---|
| Verified Price | $139.95 – $179.95 | $169.95 – $199.95 | $149.95 – $179.95 | $179.95 – $209.95 |
| Control Bore Length | 8.5 Inches (Extended) | 8.0 Inches | 7.0 Inches | 8.0 Inches |
| Modular Architecture | 3-Piece (Tip/Insert/Back) | 3-Piece | 2-Piece (Back/Tip) | 3-Piece (Tip/Insert/Back) |
| Coupling Thread Type | Left-Hand Reverse Thread | Standard Right-Hand | Standard Right-Hand | Standard Right-Hand |
| Breech Entry Funnel | 45° Chamfered Funnel | Stepped Chamfer | Radius Contour | Beveled Lip |
| Insert Viewing Windows? | Yes (Machined Ports) | No | N/A (Fixed Backs) | Yes (Ballistic Windows) |
| Chrono Variance (± FPS) | ±1.6 FPS | ±2.2 FPS | ±2.4 FPS | ±2.1 FPS |
| Sound Signature at 10 Ft | 73.2 dB (Whisper-Quiet) | 75.4 dB | 74.1 dB | 76.2 dB |
Planet Eclipse S63 Ecosystem: Pro Aluminum, Pro Carbon & Tactical
Planet Eclipse built the S63 platform as a comprehensive modular ecosystem. Whether you prefer ultra-lightweight carbon fiber, durable tournament aluminum, or tactical First Strike rifle barrels, the S63 family has a dedicated chassis to fit your playstyle:
| Model Variant | Construction Material | Weight Profile | Best Use Case & Marker Pairing |
|---|---|---|---|
| S63 Pro (All-Aluminum) | 6061-T6 Hard-Anodized Aluminum | 4.2 oz (w/ Insert) | Universal tournament speedball standard; maximum durability against turf dives |
| S63 Pro Carbon | Carbon Fiber Tip / Aluminum Back | 3.4 oz (Ultra-Light) | Front speedball attackers and snake players demanding the lightest possible front-end |
| S63 Tactical | Milled Aluminum w/ Mock Muzzle Brake | 5.6 oz (Milsim Profile) | MagFed tactical players (EMF100); accepts threaded muzzles and mock suppressors |
| Lapco Rifled PWR Inserts | Rifled Steel Alloy (.683 / .686) | 3.8 oz (Insert Only) | Dedicated First Strike round snipers; threaded lock prevents insert rotation |
Essential Companion Loadouts & Accessories
To keep your Planet Eclipse S63 Pro barrel and precision PWR inserts protected, organized, and performing at peak efficiency, our armory staff recommends pairing your system with these three essential companion accessories:
Planet Eclipse PWR Insert 5-Pack
Full Sizing Suite (.677 to .693)
The definitive tournament sizing kit containing .677, .681, .685, .689, and .693 color-coded PWR inserts to perfectly match any paint batch on earth.
Exalt Carbon Barrel Case
Hard-Shell Padded Insert Organizer
Rigid molded EVA exterior with plush microfiber sleeve slots designed to safely transport up to 8 extended 8.5″ PWR inserts and 2 complete barrel fronts.
Exalt Barrel Maid Swab
Dual-Sided Rocket Disk & Fluff Squeegee
The gold standard barrel squeegee featuring a non-abrasive rocket disk that clears barrel breaks instantly without scratching the S63’s micro-honed interior.
Frequently Asked Questions: Planet Eclipse S63 Pro Barrel System
Are GOG Freak XL inserts compatible with the Planet Eclipse S63 barrel?
No. The Planet Eclipse S63 Pro is engineered specifically around 8.5-inch Eclipse PWR Inserts. While both systems use extended inserts, the outer diameter, rear seating taper, and alignment shoulders differ, meaning Freak XL inserts will not fit or lock inside an S63 barrel back.
Why does the Planet Eclipse S63 use reverse left-hand threads?
Left-hand reverse threading solves barrel separation. In traditional barrels with standard right-hand threads, unscrewing the barrel from your marker can accidentally loosen the front tip from the back. With reverse threading, turning the barrel counter-clockwise to remove it from your marker naturally exerts tightening torque on the tip-to-back junction.
What markers can the Planet Eclipse S63 Pro barrel thread onto?
The S63 Pro uses industry-standard Autococker threads. It screws seamlessly into all modern electronic tournament markers and mechanical guns from Planet Eclipse (CS3, LV2, 180R, Etha 3/3M, EMEK), Dye (DSR+, MXR, M3+), Shocker (AMP, ERA), DLX Luxe, and Field One.
How do I check which PWR insert is installed without taking the barrel apart?
The S63 control back features precision-machined viewing windows on both sides of the chassis. These cutouts align directly over the laser-engraved bore size marking on the PWR insert, allowing you to instantly verify your bore size at a glance on the field.
Can I shoot First Strike rounds through the Planet Eclipse S63 barrel?
Yes, provided you install the specialized Lapco Rifled PWR Inserts (.683 or .686 bore). These inserts feature precision micro-groove rifling and a threaded lock-ring engineered specifically to impart spin stabilization on finned First Strike shaped projectiles.
What is the quietest barrel tip available for the S63 platform?
The stock S63 Pro All-Aluminum Tip delivers an ultra-quiet 73.2 dB sound signature due to its progressive spiral porting. For players seeking maximum stealth, Infamous Paintball also manufactures a compatible Silencio S63 tip featuring rain-resistant directional porting.
Final Armorer Verdict: Is the Planet Eclipse S63 Pro Worth It in 2026?
After weeks of intensive chronograph string benchmarking, paint-to-bore matching trials, and tournament speedball competition, the Planet Eclipse Shaft S63 Pro Barrel System has proven itself as the premier modular barrel system in modern paintball. By lengthening the control bore to a generous 8.5 inches and chamfering the breech entry to 45 degrees, Planet Eclipse delivered what competitive tournament gunners demand: unmatched velocity consistency (±1.6 FPS) and total preservation of fragile, brittle tournament paint.
Add in the mechanical genius of left-hand reverse threading to end accidental barrel disassembly, and the S63 Pro establishes a new standard for tournament reliability. While the initial investment is significant, the precision, acoustic stealth, and build quality make the S63 Pro the ultimate barrel upgrade for serious players in 2026.
Planet Eclipse S63 Pro: The Armorer’s Top Choice
Extended 8.5″ control bore, reverse-threaded tip security, and whisper-quiet porting make the S63 Pro the gold standard of modular barrel systems. Check live inventory and available color combinations below:
