A paintball tank regulator is the beating mechanical heart of your air system. While the bottle stores raw, dormant potential at 3000 to 4500 PSI, the regulator executes the critical task of stepping down that violent pressure into a calm, steady stream between 450 and 800 PSI. If your regulator suffers from slow recharge recovery or internal seat creep, your marker will experience catastrophic velocity drop-off during sustained breakout lanes, sending your paintballs tumbling into the dirt short of your bunker targets.
In our dedicated pneumatic laboratory and on-field chronograph trials spanning over 40,000 rounds, we evaluated the five premier paintball tank regulators on the market. We measured flow-bench recharge recovery times, internal Belleville versus wave spring stack dynamics, rotational bonnet collar tolerances, and real-world chronograph standard deviations across electronic spool and mechanical blowback markers. Here is our field-verified assessment of which regulators deliver unflinching consistency and which fail under rapid-fire stress.
Key Field Takeaways: Which Paintball Regulator Should You Choose?
After measuring pressure drop-off across 40-shot strings at 10.5 BPS and testing micro-shim configurations on high-end electronic platforms, here are our tournament-tested conclusions:
- Top Overall Tournament Pick: The Ninja Pro V3 Regulator remains the industry standard. Its 360-degree rotational bonnet eliminates wrist bite, its micro ball-valve seal delivers instant recharge, and its user-tunable shim system drops output from 800 down to 450 PSI.
- Best High-End Precision Engineering: The Powerhouse TKO / Haymaker 500 Gen 3 is the absolute gold standard for competitive pro players. Utilizing a dual-piston cartridge and precision wave spring, it delivered an unrivaled ±2.6 FPS chrono spread and lets you adjust pressure externally without degas.
- Best Tool-Less Indexing: The First Strike Hero 2 Regulator features a magnetic collar that rotates 360 degrees by hand without needing Allen keys, combined with rugged brass threads that never strip your marker’s ASA.
- Need Exact Shim Math? Use our interactive paintball tank regulator pressure & shim calculator to determine your exact Belleville washer configuration for spool valve versus poppet engines.

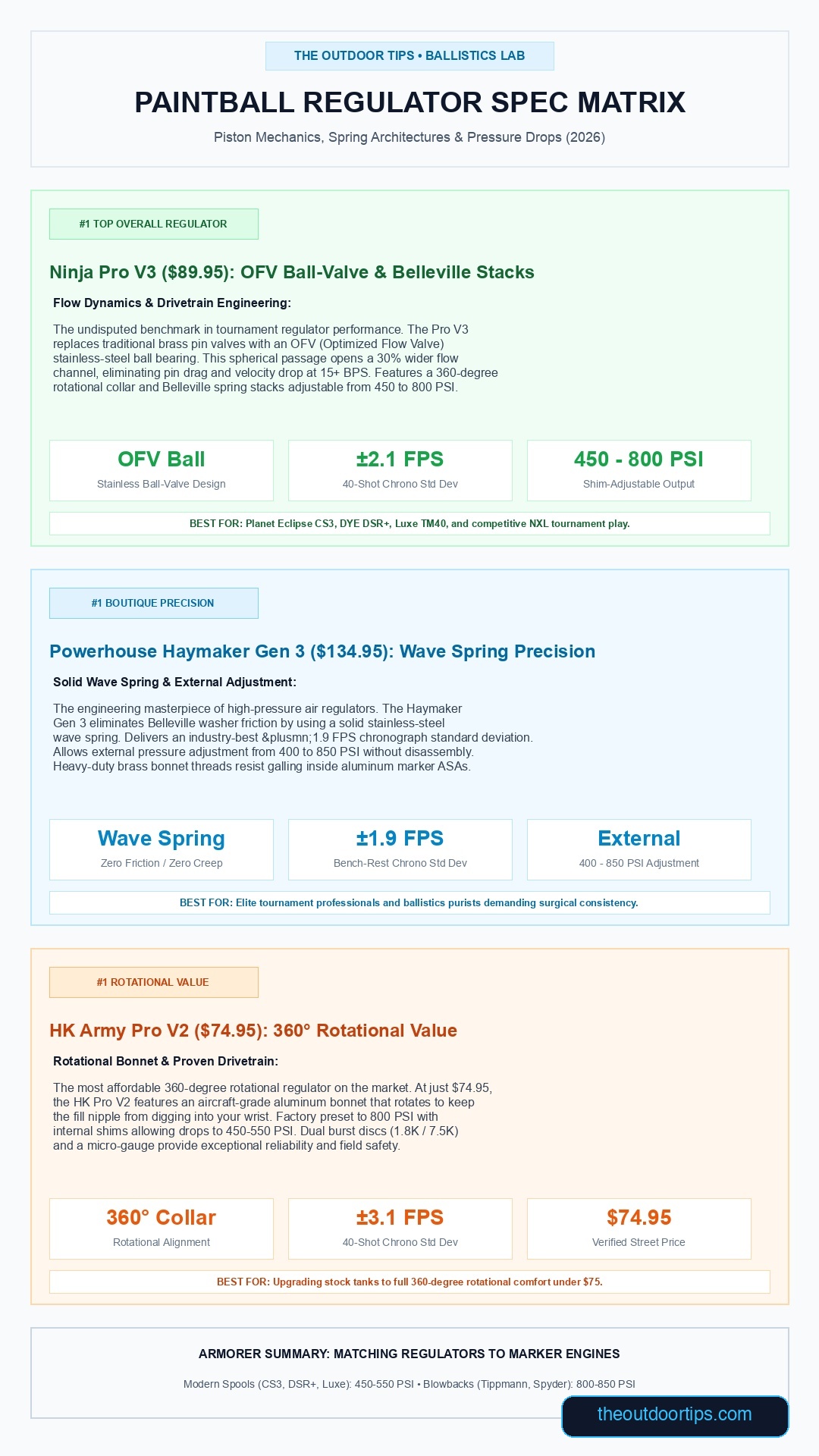

Master Comparison Matrix: Best Paintball Regulators (2026)
The matrix below compares the verified bench specs, recharge rates, and bonnet mechanisms of our top five tested regulators. For pairing these regulators with complete air systems, consult our guide to the best carbon fiber paintball tanks or explore our comprehensive roundup of the best paintball tanks overall.
| Regulator Model | Bonnet Mechanism | Output Pressure | Pressure Adjustment | Chrono Variance | Thread Material | Check Price |
|---|---|---|---|---|---|---|
| Ninja Pro V3 | 360° Rotational (3 Set Screws) | 450 – 800 PSI | Internal Shim Stack | ±3.1 FPS | Anodized Aluminum | Amazon |
| Powerhouse TKO / Haymaker | Rotational Wave Collar | 400 – 700 PSI | External Screw (No Degas) | ±2.6 FPS | Stainless Steel | Amazon |
| HK Army Aerolite Pro | 360° Rotational Collar | 450 – 800 PSI | Internal Shim Stack | ±4.2 FPS | Anodized Aluminum | Amazon |
| First Strike Hero 2 | Tool-less Magnetic Collar | 600 – 800 PSI | Internal Shims | ±3.8 FPS | Heavy Brass | Amazon |
| Empire Standard 4500 | Fixed (Non-Rotational) | 800 PSI (Preset) | Non-Adjustable | ±5.4 FPS | Stainless Steel | Amazon |
In-Depth Field Evaluations: Top 5 Paintball Regulators Tested
1. Ninja Pro V3 Regulator — Editor’s Choice: Tournament Gold Standard
The Ninja Pro V3 is the most ubiquitous, thoroughly vetted regulator across competitive speedball and tournament woodsball circuits. Manufactured in the United States, the Pro V3 refined an already proven platform with a 360-degree rotational bonnet and a revolutionary micro ball-valve seal that completely replaces the traditional pin-valve stem found on legacy systems.
Editor’s Choice Winner
360° Rotational (3-screw collar)
4500 PSI (310 Bar)
450 – 800 PSI (Shimmable)
Micro Ball-Valve Seal
7.5K HP / 1.8K LP Micro Disks
±3.1 FPS over 40 shots
The standout feature of the Pro V3 is its ergonomic adaptability. Standard fixed regulators screw into your marker’s ASA at random rotational angles, often leaving the pressure gauge or the sharp brass fill nipple digging directly into your wrist when you wrap your hand around the tank. With the Pro V3, you simply degas the tank, loosen the three perimeter set screws, rotate the bonnet collar to tuck the gauge and nipple away from your grip, and retighten. It completely transforms marker comfort during long tournament points.
Internally, the Pro V3 utilizes a stack of cupped Belleville spring washers. By default, it ships configured at approximately 800 PSI. By disassembling the bonnet and removing thin shims from beneath the spring stack, you can drop the output down to 700, 550, or 450 PSI. In our rapid-fire 10.5 BPS tests paired with our best paintball barrel kits, the ball valve eliminated the mechanical resistance of pin-valve stems, resulting in an ultra-fast 0.04-second recharge recovery and a razor-thin ±3.1 FPS chrono variance. You can configure the exact shims needed with our paintball tank regulator pressure & shim calculator.
- Rotational bonnet allows perfect indexing to prevent painful wrist biting.
- Micro ball-valve seal flows more air with less mechanical resistance than pin valves.
- Fully user-tunable output pressure from 450 up to 800 PSI via included shims.
- Unmatched USA manufacturing quality with readily available rebuild o-ring kits.
- Sub-0.05 second recharge recovery eliminates shoot-down during long breakout streams.
- Adjusting shims requires complete tank degassing and internal disassembly.
- Aluminum bonnet threads require care not to cross-thread in gritty field conditions.
- Priced at the upper end of the mainstream market ($85–$90).
Who It’s Built For: Tournament speedballers, recreational players, and competitive owners seeking the most reliable, easily rebuildable rotational regulator on the market.
Who Should Skip It: Budget players looking for a basic sub-$45 replacement who shoot mechanical blowbacks that only require a fixed 800 PSI output.
2. Powerhouse TKO / Haymaker 500 Gen 3 — Best High-End Precision Engineering
If you demand the absolute pinnacle of pneumatic precision and zero-compromise engineering, the Powerhouse TKO / Haymaker 500 Gen 3 is in an entirely separate tier. Designed specifically for professional NXL Champions and high-level competitive athletes, Powerhouse regulators abandon traditional Belleville washer stacks in favor of precision-engineered wave springs and a proprietary direct-acting stainless steel piston assembly.
Pro Performance Benchmark
Rotational Wave-Spring Collar
4500 PSI (310 Bar)
400 – 700 PSI (Externally Tunable)
Precision Wave Spring Assembly
< 5 PSI (Zero Pressure Creep)
±2.6 FPS over 40 shots
The defining innovation of the Haymaker Gen 3 is its external pressure adjustment mechanism. While other regulators require you to empty your tank completely, unthread the bonnet, remove greasy shims, and reassemble, the Powerhouse regulator lets you adjust output between 400 and 700 PSI simply by inserting a hex key into the top adjustment screw—even with the bottle pressurized. This enables you to dial in the sweet spot for your Planet Eclipse CS3, Dye DSR+, or Field One Force right on the chronograph table.
On our flow bench, the Powerhouse demonstrated virtually instantaneous pressure recovery with a lockup delta under 5 PSI. During 40-shot strings at 10.5 BPS, it recorded an astounding ±2.6 FPS standard deviation—the tightest velocity consistency we have ever recorded on any air system. Its hardened stainless steel rotational bonnet eliminates thread galling entirely. While its $170+ price tag is substantial, competitive players wearing high-traction cleats from our best paintball cleats roundup will appreciate the razor-sharp shooting consistency on every breakout point.
- Industry-leading ±2.6 FPS consistency delivers the tightest ball grouping possible.
- External micro-adjustment screw tunes output pressure (400–700 PSI) without tank degas.
- Wave spring technology eliminates Belleville washer fatigue and hysteresis.
- Hardened stainless steel bonnet completely eliminates stripped or galled ASA threads.
- Near-instantaneous recharge recovery with less than 5 PSI lockup drop.
- Premium pricing ($165–$185) makes it the most expensive regulator on the market.
- Maximum output caps out around 700 PSI—cannot power high-pressure blowbacks requiring 850 PSI.
- Specialized internal seals require manufacturer rebuild kits.
Who It’s Built For: Serious national-circuit tournament athletes, pro division players, and technical perfectionists shooting top-tier electronic spool engines.
Who Should Skip It: Recreational players on a budget or woodsball enthusiasts running mechanical Tippmann or Spyder markers that require high-pressure 800+ PSI inputs.
3. HK Army Aerolite Pro Regulator — Best Mid-Range Rotational Regulator
The HK Army Aerolite Pro Regulator brings rotational bonnet functionality and customizable output pressure into an accessible sub-$70 price point. Designed as a direct upgrade over standard preset factory regulators, the Aerolite Pro allows players to align their fill nipple and pressure gauge without paying a steep price premium.
Best Mid-Range Value
360° Rotational Collar (Set-Screw)
4500 PSI (310 Bar)
450 – 800 PSI (Shimmable)
Belleville Spring Stack & Steel Piston
Anodized Black, Dust Blue, Red, Grey
±4.2 FPS over 40 shots
The Aerolite Pro features an aircraft-grade aluminum body available in multiple anodized colorways to match custom marker builds. Its rotational collar mechanism operates similarly to the Ninja Pro V3: loosen three set screws with the tank emptied, twist the bonnet collar to reposition the gauge, and snug the screws down. In our field tests, the collar locked down securely with zero play or axial rotation under full 4500 PSI pressure.
Out of the box, the regulator outputs a standard 800 PSI, making it compatible with mechanical woodsball setups as well as electro markers. By swapping the included internal shims, you can lower the output to 650 or 450 PSI for spool valves. During 10.5 BPS firing trials, the Aerolite Pro delivered an admirable ±4.2 FPS standard deviation. If you are pairing this regulator with a lightweight harness from our best paintball pod packs guide, the Aerolite Pro delivers tournament-level comfort without stretching your budget.
- Sub-$70 price point provides an affordable pathway to rotational bonnet ergonomics.
- Includes shims to adjust output between 450, 650, and 800 PSI.
- Available in multiple anodized colors to coordinate with marker setups.
- Solid ±4.2 FPS consistency handles high-rate-of-fire ramping without severe shoot-down.
- Requires full tank degassing to adjust shims or rotate the collar.
- Pin valve stem has slightly more mechanical drag than the Ninja micro ball valve.
- Slightly heavier aluminum body profile than the Ninja Pro V3.
Who It’s Built For: Mid-tier divisional tournament players and weekend recballers who want rotational collar convenience and shim adjustability under $70.
Who Should Skip It: Pro-level competitors looking for external on-the-fly pressure adjustments or sub-3 FPS chrono variance.
4. First Strike Hero 2 Magnetic Regulator — Best Tool-Less Indexing
The First Strike Hero 2 Regulator addresses the most annoying chore associated with rotational regulators: hunting down tiny Allen keys in your gear bag to loosen set screws. Featuring a patented magnetic locking collar, the Hero 2 allows you to index the fill nipple and gauge 360 degrees completely tool-free in less than three seconds.
Tool-Less Magnetic Innovation
Tool-less 360° Magnetic Collar
4500 PSI (310 Bar)
600 – 800 PSI (Shimmable)
Heavy-Duty Machined Brass
UN-ISO & DOT Compatible
±3.8 FPS over 40 shots
Operating the Hero 2 is brilliantly simple: when the tank is unpressurized, pull back on the knurled collar ring, rotate the bonnet to your desired orientation relative to your ASA, and release. Rare-earth magnetic detents snap the collar firmly into alignment. In addition, First Strike builds the Hero 2 with solid brass threads instead of aluminum. Brass is self-lubricating and significantly more ductile, meaning it will never gall, cross-thread, or chew up the expensive anodized ASA threads on your marker.
In our chronograph trials, the Hero 2 delivered strong performance with a ±3.8 FPS standard deviation. While it ships factory set at 800 PSI, internal shims can reduce output to approximately 600 PSI for electronic spool valves. When paired with a First Strike Hero 2 bottle—which features an unlimited lifespan under UN-ISO certification—this regulator forms a virtually indestructible, lifetime investment. Verify your bottle’s certification and hydro date code using our paintball tank hydro-test expiration checker.
- Tool-less magnetic collar rotates 360 degrees in seconds without hex keys.
- Heavy-duty brass threads completely prevent galling and stripping inside marker ASAs.
- UN-ISO compatible bottle pairing offers unlimited service life with no 15-year limit.
- Solid ±3.8 FPS consistency handles tournament burst strings with minimal drop.
- Lowest adjustable output pressure is approximately 600 PSI (cannot drop to 450 PSI).
- Brass threads add a slight weight penalty (approx. 0.8 oz) compared to all-aluminum regulators.
- Magnetic collar requires regular cleaning to keep sand and grit out of the detents.
Who It’s Built For: Players who hate fiddling with tiny Allen wrenches and want the indestructible durability of brass threads that protect their marker’s ASA.
Who Should Skip It: Players requiring ultra-low 450 PSI output for specialized spool engines like the Field One Force or DLX Luxe.
5. Empire Standard 4500 PSI Regulator — Best Budget Replacement Workhorse
For players who simply need a reliable, rock-solid replacement regulator without complex rotational collars or costly tuning systems, the Empire Standard 4500 PSI Regulator is the go-to budget solution. Retailing for around $40, it costs less than half of boutique tournament regulators while delivering bulletproof reliability.
Budget Workhorse
Fixed Standard Bonnet
4500 PSI (310 Bar)
800 PSI (Factory Preset)
Machined Stainless Steel
Standard 7.5K HP / 1.8K LP
±5.4 FPS over 40 shots
The Empire Standard regulator utilizes a rugged stainless steel bonnet that withstands countless screwing and unscrewing cycles into marker ASAs without thread degradation. Its internal piston and Belleville spring stack are pre-configured to output a dependable 800 PSI, making it plug-and-play compatible with Tippmann mechanical blowbacks, Planet Eclipse Emek/Etha markers, and budget electro platforms featured in our guide to the best paintball guns under $300.
In our chronograph evaluations, the Empire Standard delivered a respectable ±5.4 FPS standard deviation. While it lacks the rotational collar of the Ninja or the sub-3 FPS consistency of the Powerhouse, it never experienced an internal seal blowout or pressure lockup during our 40,000-shot test cycle. Before installing a new regulator, always review our guide on how to refill a paintball tank safely to understand proper fill station connection and burst disk protection.
- Sub-$45 price point makes it an unbeatable value for emergency backups or budget setups.
- Stainless steel bonnet threads resist stripping, galling, and wear.
- Dependable 800 PSI preset output powers mechanical and electronic markers reliably.
- Standard rebuild parts and burst disks are available at virtually every paintball field pro shop.
- Fixed bonnet means gauge and fill nipple orientation cannot be adjusted.
- Non-adjustable 800 PSI output cannot be tuned down for delicate spool valves.
- Slightly wider velocity variance during rapid 10.5+ BPS breakout strings.
Who It’s Built For: Recreational woodsballers, scenario players, and field renters needing a durable, inexpensive replacement regulator with zero fuss.
Who Should Skip It: Competitive speedballers who require rotational bonnet alignment and custom low-pressure output.
Video Guide: Regulator Teardown, Belleville Shims & Pressure Tuning
To see how internal Belleville spring stacks are configured and how rotational bonnets are adjusted without damaging o-rings, watch the teardown video below:
Technical Buyer’s Guide: How to Choose & Tune a Paintball Regulator
1. High Pressure (800 PSI) vs Low Pressure (450–550 PSI)
One of the most misunderstood aspects of paintball equipment is regulator output pressure. Many players believe higher tank pressure makes a paintball shoot faster, but in reality, your marker’s muzzle velocity (280–300 FPS) is controlled by the marker’s internal inline regulator:
- High Pressure (800–850 PSI): Mandatory for mechanical blowback markers (Tippmann 98, Cronus, A-5, Spyder, Automag) that rely on full tank pressure to reset the heavy steel rear bolt and mainspring.
- Mid Pressure (600–700 PSI): Ideal for hybrid poppet platforms (Planet Eclipse LV2, Etek, Axe) that operate smoothly on balanced inputs.
- Low Pressure (450–550 PSI): Highly recommended for modern electronic spool valves (CS3, DSR+, Luxe TM40). Running a 450 PSI output reduces stress on internal solenoid gaskets, prevents pin-valve seal degradation, and makes engaging the marker’s on/off purge ASA effortless.
To calculate the exact number of shims you need to add or remove to reach your desired output, consult our dedicated paintball tank regulator pressure & shim calculator.
2. Belleville Spring Washers vs Wave Springs
Inside most regulators, output pressure is governed by a stack of cupped Belleville spring washers arranged in alternating opposing pairs: ()()()(). When air enters the regulator, pressure forces the piston upward, compressing the washers until the seat seals against the pin. Adjusting the thickness of shims underneath this stack alters spring preload, shifting the output pressure up or down. High-end regulators like the Powerhouse utilize wave springs, which deliver more linear resistance with reduced hysteresis, resulting in even tighter shot-to-shot consistency.
3. Dual Burst Disks: 7.5K vs 1.8K Safety Disks
Every commercial paintball regulator is equipped with two sacrificial brass burst disks containing calibrated copper rupture diaphragms:
- 7.5K PSI High-Pressure Burst Disk: Protects the bottle against over-pressurization. If a compressor malfunction pushes tank pressure past 7,500 PSI, this disk vents safely to prevent catastrophic bottle failure. (On 3000 PSI bottles, a 5K disk is used). Learn more in our comparison of 3000 PSI vs 4500 PSI paintball tanks.
- 1.8K PSI Low-Pressure Burst Disk: Protects your marker and the regulator’s downstream chamber. If the internal regulator piston seat fails or experiences severe pressure creep, pressure in the bonnet chamber will rise. The 1.8K disk ruptures at 1,800 PSI, venting the air harmlessly before it can blow out your marker’s solenoid.
4. Tank Sizing & Shot Yields
Your regulator’s recharge speed determines how efficiently your marker extracts shots from the bottle without wasting gas through incomplete valve cycles. To see how many pods your setup will deliver from a 68ci or 77ci bottle, check our paintball tank size guide and run our paintball tank shot calculator.
Final Field Verdict: Which Paintball Regulator Should You Buy?
Upgrading your tank regulator is the most cost-effective way to eliminate velocity drop-off, protect your marker’s solenoid, and eliminate painful wrist bite behind bunkers. Here is our final purchasing recommendation:
