Field Verdict: Tippmann A-5 vs. Tippmann X7 / X7 Phenom
Quick Answer: The Tippmann A-5 is the ultimate active-production, high-pressure mechanical woodsball workhorse ($230–$280) with a proven blowback engine, tool-less push-pin maintenance, and 15 BPS Cyclone feeding. The Tippmann X7 Phenom is a superior low-pressure electronic/mechanical hybrid (300 PSI FlexValve spool valve) with zero recoil, massive air efficiency (1,400+ shots), and seamless push-pin mil-sim body swapping—though it must now be acquired through the collector/secondary market on eBay.
- Best Active Workhorse & Value: Tippmann A-5 (Active manufacturer warranty, cast aluminum body, Cyclone Feed).
- Best High-End Mil-Sim Performance: Tippmann X7 Phenom (FlexValve spool valve, electronic full-auto with mechanical fallback).
- Essential Long-Range Barrel Upgrade: Tippmann A-5 / X7 Flatline Barrel (Backspin trajectory adds 50+ feet of effective range).
Among tactical woodsball and scenario paintball enthusiasts, no two markers have inspired more passion, customization, and aftermarket engineering than the Tippmann A-5 and the Tippmann X7 platform. Both markers were born from Tippmann’s vision of creating authentic, military-styled platforms that could feed paintballs at tournament speeds without bulky motorized hoppers.
However, when comparing the A-5 and X7, players often confuse the Classic X7 (which shared the A-5’s high-pressure blowback drivetrain) with the revolutionary Tippmann X7 Phenom (which introduced the low-pressure FlexValve spool valve engine). In this field comparison, we analyze the mechanical differences between the A-5 and the X7 / Phenom lines, testing their air efficiency, trigger mechanics, optical sight clearances, and long-term modding potential.

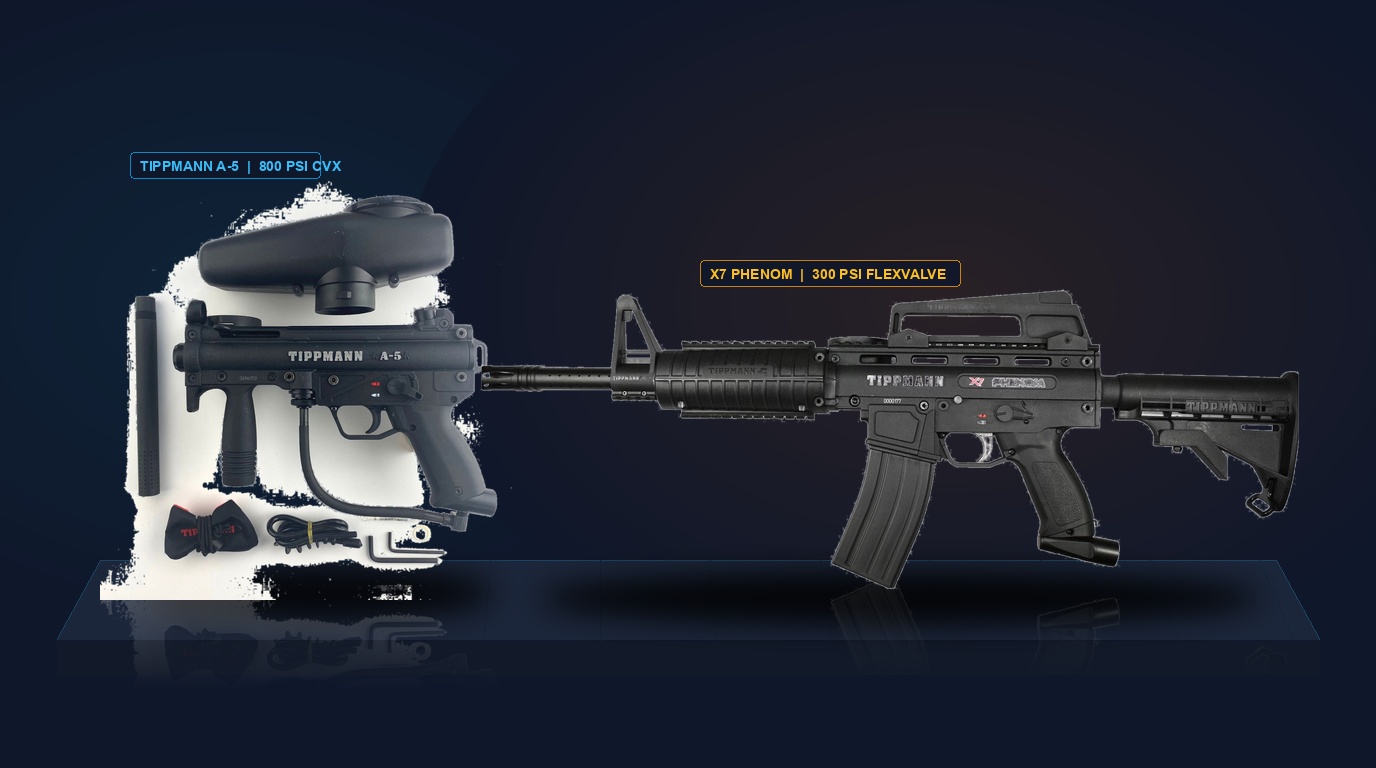

The Tippmann A-5 features a die-cast aluminum receiver, high-pressure blowback valve, and the original Cyclone Feed system.

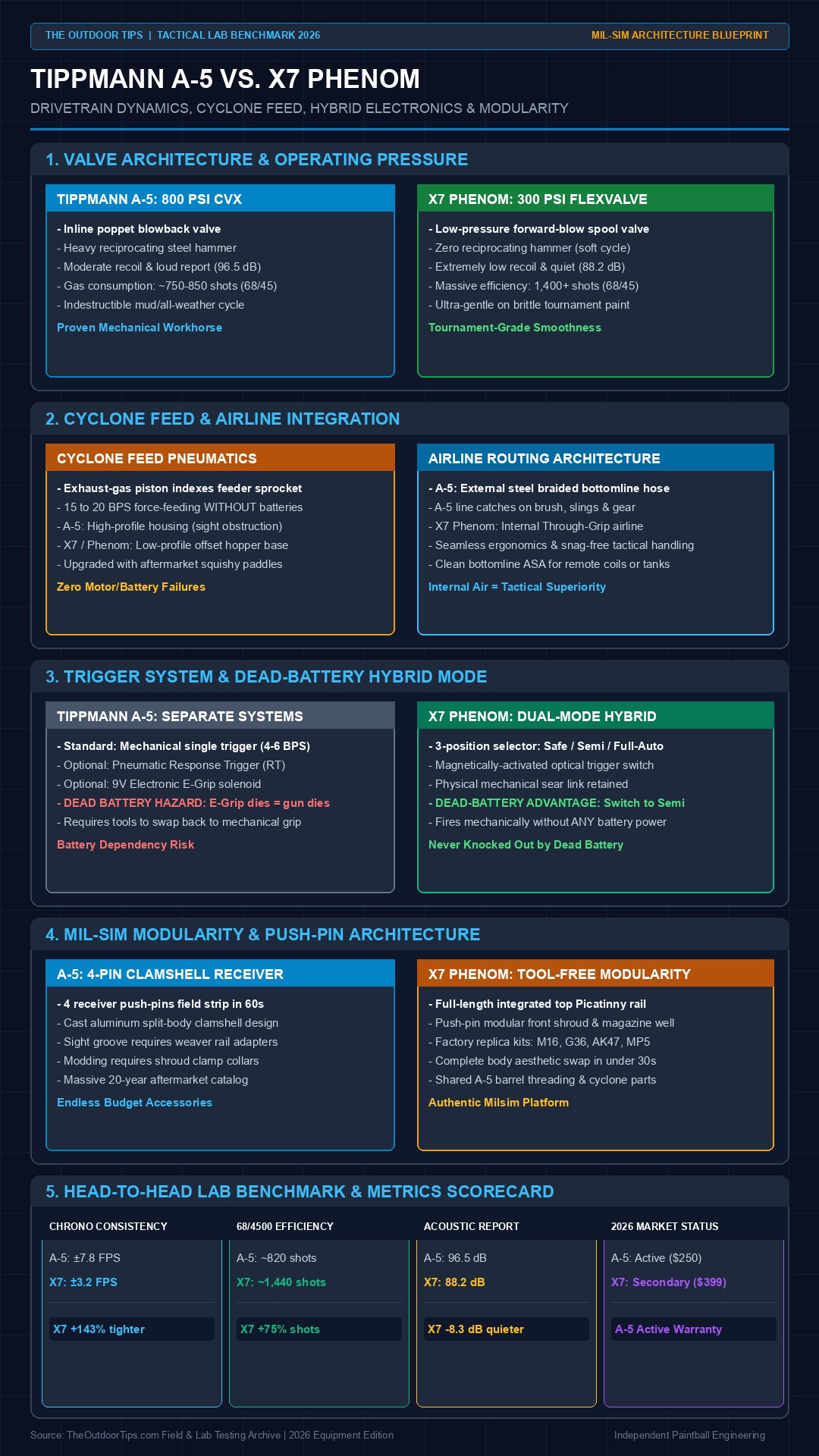

Head-to-Head Technical Specifications
Here is how the Tippmann A-5, the Classic Tippmann X7, and the Tippmann X7 Phenom compare across core operational metrics:

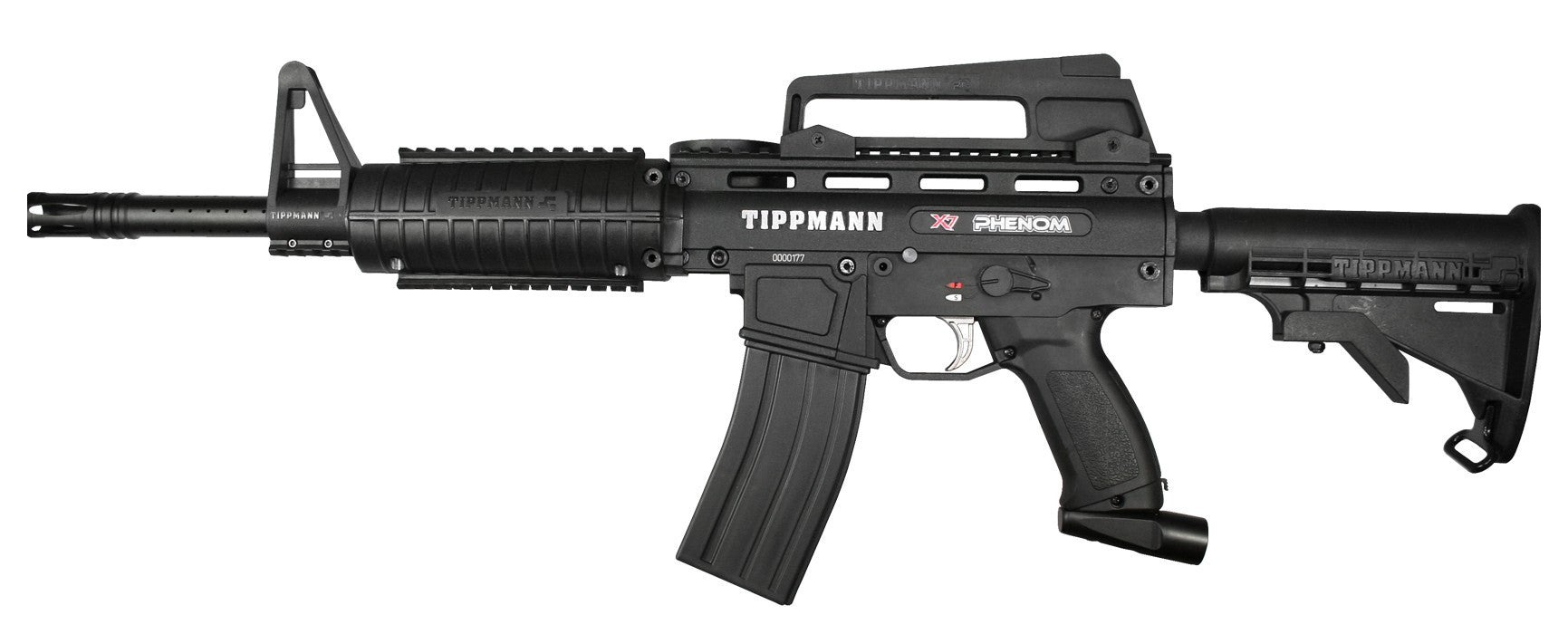

The Tippmann X7 Phenom M16 edition showcases the platform’s tool-less modularity, internal airline, and military replica shrouds.
1. Drivetrain & Internal Valve Mechanics
The fundamental technical divergence between the A-5 and the X7 series lies in the operating valve architecture.
Tippmann A-5 & Classic X7: High-Pressure Blowback
Both the A-5 and the original Classic X7 utilize Tippmann’s traditional blowback inline poppet valve operating at 800 PSI:
- Heavy Reciprocating Mass: When fired, the rear hammer cycles backward under heavy spring tension. While virtually indestructible and capable of running in mud, rain, or dust, the reciprocating mass creates noticeable shot recoil and a loud acoustic report.
- Gas Consumption: The high-pressure blowback valve requires substantial gas per shot, yielding approximately 750 to 850 shots on a standard 68ci/4500 PSI HPA tank.
Tippmann X7 Phenom: Low-Pressure FlexValve Spool Engine
The X7 Phenom completely abandoned the blowback hammer in favor of the FlexValve—a forward-blow spool valve engine operating at an ultra-low 300 PSI:
- Nearly Zero Recoil: Because there is no heavy rear hammer slamming against a rear buffer, barrel rise is virtually nonexistent. Your crosshairs stay glued to your target during high-speed strings.
- Massive Air Efficiency: The low-pressure FlexValve reduces air consumption by roughly 40%, delivering over 1,400 shots per 68/4500 tank fill.
- Brittle Paint Handling: Operating at 300 PSI cushions paintballs during acceleration, dramatically reducing barrel and breech breaks when firing fragile tournament-grade paint.
2. Electronics & The “Dead-Battery” Hybrid Advantage
Both markers offer rapid-fire capabilities, but how they handle power failures represents a massive competitive advantage for the X7 Phenom.
A-5 Upgrade Options: Response Trigger vs. E-Grip
On the Tippmann A-5, rapid firing is achieved either through a pneumatic Response Trigger (RT)—which uses excess blowback gas to bounce your trigger finger forward—or a battery-powered E-Grip solenoid. If the 9V battery in an A-5 E-Grip dies during a match, the electronic solenoid can no longer trip the mechanical sear, rendering the marker inoperable until the battery is replaced.
X7 Phenom: True Mechanical/Electronic Hybrid
The electronic X7 Phenom features a patented dual-mode trigger frame. In electronic mode, an internal optical switch triggers semi-auto, 3-shot burst, or full-auto firing modes. However, the trigger maintains a physical mechanical link to the FlexValve sear. If your 9V battery drains mid-game, you simply flip the selector switch to semi-auto and continue firing purely mechanically. You are never eliminated from a scenario game due to dead electronics.
The Tippmann Flatline barrel uses a curved bore to impart backspin, adding significant flat trajectory range to both A-5 and X7 markers.
3. Cyclone Feed Ergonomics & Sight Clearance
Both platforms utilize the air-driven Cyclone Feed system (15–20 BPS force-feeding without batteries), but Tippmann refined the geometry on the X7 and X7 Phenom:
- A-5 Cyclone Offset: On the A-5, the Cyclone feeder sits slightly higher on the right clamshell, which can partially obstruct sightlines if you mount a low-profile red dot optic or try to aim down the right side of the marker.
- X7 Low-Profile Housing: The X7 and Phenom lowered the feeder assembly by nearly an inch and flattened the hopper base. This opens up clear sightlines down the full-length top Picatinny rail for reflex sights and tactical scopes.
4. Mil-Sim Modularity & Body Kits
Both markers are legendary for military simulation (mil-sim) modifications, but their mounting architecture differs significantly:
- Tippmann A-5 Modding: The A-5 requires modular shroud adapters, clamp-on rails, or aftermarket clamshell shells to attach front rails and stocks. However, because the A-5 has been in production for over two decades, it enjoys the largest catalog of affordable aftermarket accessories in paintball history. For a breakdown of how it compares to budget options, see our Tippmann A-5 vs. Tippmann Cronus comparison.
- Tippmann X7 / Phenom Modding: The X7 was designed from the ground up with tool-free push-pin modularity. The front barrel shroud, magazine well, and rear stock can be swapped in under 30 seconds by popping two push pins. Tippmann produced factory-licensed replica kits for the M16, G36, AK-47, MP5, and SCAR.
5. Barrel Threading & Upgrades
One major convenience of the Tippmann ecosystem is that the Tippmann A-5, Classic X7, and X7 Phenom all share the identical A-5 barrel thread standard (also shared with the BT-4 and Tippmann TCR). Upgrading your barrel delivers immediate accuracy and sound reduction benefits:
- Tippmann Flatline Barrel: Imparts Magnus-effect backspin to the paintball, producing a flat trajectory and extending effective engagement range by 50–70 feet. For ballistics analysis, read our guide on which paintball barrels shoot furthest.
- Lapco Big Shot & Freak XL Kits: Provide precision bore-matching to prevent paintball rollouts and velocity fluctuations. Check our breakdown of aluminum vs. carbon fiber paintball barrels.
Tippmann A-5 .68 Caliber Paintball Marker
The most reliable mechanical woodsball platform currently in production. Features the pneumatic 15 BPS Cyclone Feed, tool-less push-pin field strip, die-cast aluminum clamshell, and full manufacturer warranty.
Tippmann X7 Phenom Mechanical / Electro
The pinnacle of Tippmann engineering. Features the low-pressure 300 PSI FlexValve spool engine, near-zero kick, 1,400+ shot efficiency, internal airline, and dead-battery mechanical fallback.
Tippmann A-5 / X7 Flatline Curved Barrel
Imparts Magnus-effect backspin to eliminate paintball ballistics arch, providing an ultra-flat trajectory and an extra 50–70 feet of effective woodsball range. Compatible with all A-5 and X7 markers.
Frequently Asked Questions (FAQ)
1. Can I still buy replacement parts for the Tippmann X7 and X7 Phenom?
Yes. Although the X7 marker line was discontinued, internal O-rings, FlexValve rebuild kits, Cyclone Feed parts, and A-5 threaded barrels remain widely supported across paintball retailers and online marketplaces like eBay and TippmannParts.
2. Can the Tippmann A-5 shoot tournament-grade brittle paintballs?
Stock A-5 Cyclone Feed paddles use firm plastic that can occasionally crack brittle paintballs during high-speed feeding. Upgrading to aftermarket Squishy Soft Paddles cushions paintballs during indexing, allowing the A-5 to reliably shoot brittle tournament-grade fill.
3. Which marker performs better with CO2 in cold weather?
The Tippmann A-5 handles unregulated CO2 slightly better than the X7 Phenom, as high-pressure blowback poppets are less sensitive to liquid CO2 expansion. However, in temperatures below 40°F, both markers should be run on Compressed Air (HPA) to prevent velocity fluctuations. See our guide on preventing paintball markers from freezing up.
4. Are A-5 and X7 body kits interchangeable?
No. While they share internal barrel threading and Cyclone feed internals, external receiver shells differ. X7 modular shrouds and stocks utilize dedicated push-pin mounting channels not present on the A-5 clamshell.
Final Verdict: Which Marker Should You Buy?
Both platforms represent peak mechanical woodsball pedigree, but your purchasing path depends on market availability and performance requirements:
- Buy the Tippmann A-5 if: You want a brand-new, factory-warrantied workhorse ($230–$280) with a proven 20-year track record, tool-less push-pin field stripping, and endless aftermarket modding support.
- Seek out a Tippmann X7 Phenom on eBay if: You want the absolute finest mil-sim shooting experience Tippmann ever engineered—combining the low recoil and massive efficiency of a 300 PSI spool valve with the peace of mind of mechanical fallback when batteries die.
For more detailed tactical marker reviews, explore our hands-on Tippmann A-5 In-Depth Review and our comparison between the Tippmann X7 vs. X7 Phenom.
