Quick Field Verdict: Best Tippmann A-5 Upgrades (2026)
Bottom line up front from certified Tippmann armorers: The legendary Tippmann A-5 is famous for its air-assisted Cyclone Feed system and indestructible cast-aluminum receiver. However, straight out of the box, three critical factory bottlenecks hold it back: rigid plastic feeding paddles that crush brittle tournament paint, a loud unported 8.5-inch barrel (~104 dB muzzle blast), and a stiff mechanical trigger capped at 6–8 BPS. Upgrading your marker does not require spending $300 on heavy tactical shrouds. Prioritizing targeted tippmann a5 upgrades—starting with TechT Squishy Paddles and a micro-honed tippmann a5 barrel—transforms the A-5 into a laser-accurate, quiet, 15+ BPS woodsball workhorse.
- #1 Priority Mod: Install tippmann a5 cyclone upgrades (specifically TechT Squishy Paddles for $29.95) immediately. Soft rubber interlocking paddles cushion incoming paintballs, eliminating breech chops and paint soup in your loader.
- Acoustic & Accuracy Fix: Replace the stock 8.5-inch tube with a 14-inch spiral ported barrel (.685 to .687 bore). It cuts acoustic muzzle signature from 104 dB down to 88 dB and tightens velocity consistency to ±2.4 FPS.
- Rate of Fire (ROF): Choose the mechanical Response Trigger (RT) for battery-free 12–15 BPS pneumatic bounce, or the E-Grip HE for electronic tournament firing modes (semi, 3-round burst, NXL full auto).
- Air Power Delivery: Stop running liquid CO2 on the A-5. Liquid CO2 boils in the cyclone cylinder, freezing the piston O-ring and seizing the ratchet. Switch to an 800 PSI regulated High-Pressure Air (HPA) tank paired with a remote line coil.

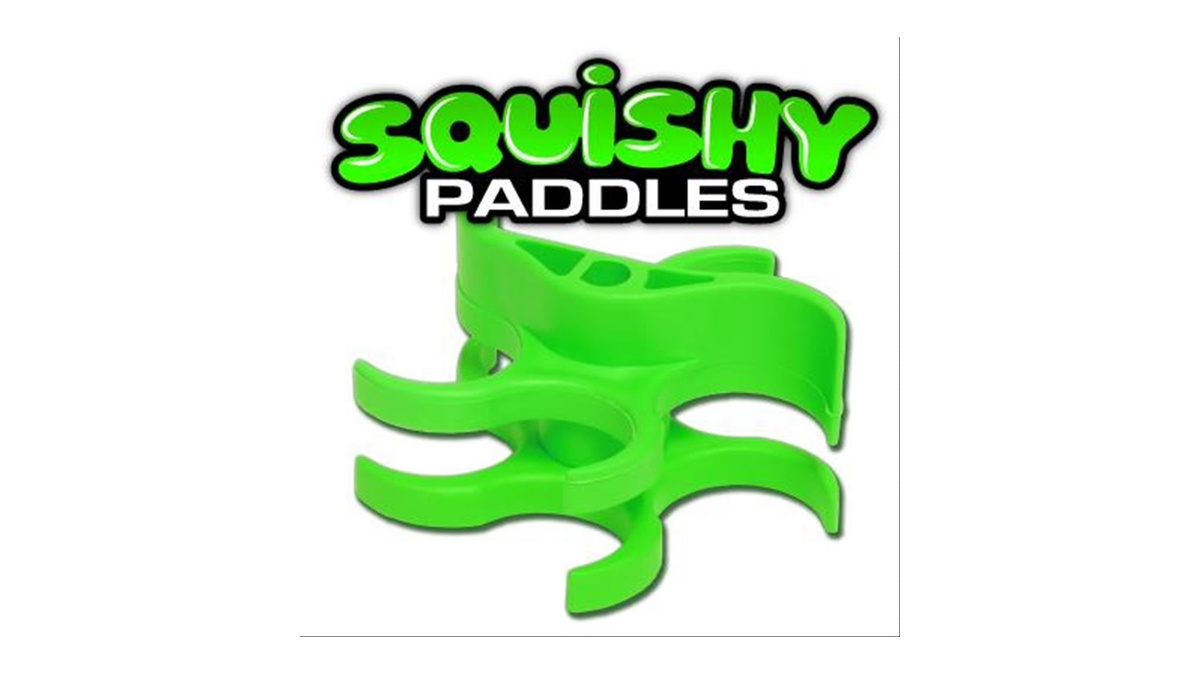

TechT Squishy Paddles (Tippmann A-5 Cyclone Feed)
Tired of your A-5 chopping brittle paint inside the feeder? TechT Squishy Paddles replace the hard factory plastic paddles with ultra-flexible, interlocking soft elastomer fingers. They absorb rotational impact, eliminate loader breaks, and feed reliably at up to 20 balls per second.

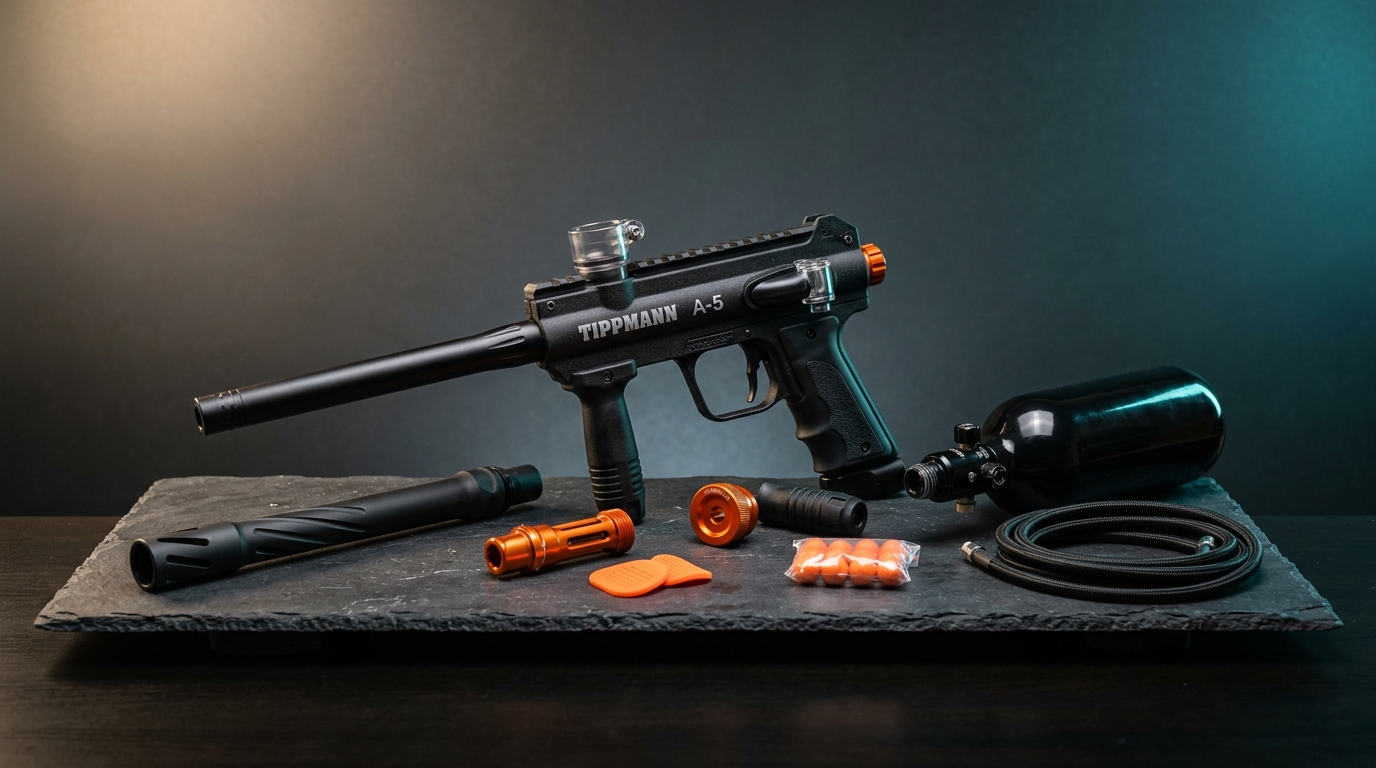

The Ultimate 2026 Tippmann A-5 Performance Build: Bench testing the A-5 inline blowback engine with TechT Cyclone squishy paddles, precision 14-inch ported barrel, aluminum ratchet, and HPA remote line setup.
Master Upgrade Matrix: Top Tippmann A-5 Upgrades Ranked (2026)
The Technical Realities: Drivetrains, Pneumatics & A-5 Bottlenecks
To understand why certain tippmann a-5 upgrades deliver massive returns while others are a complete waste of cash, you must understand how the A-5 functions pneumatically. Built on an 800 PSI inline blowback architecture derived from the legendary Model 98, the A-5 introduces one revolutionary innovation: the Cyclone Feed System.
1. How the Cyclone Feed System Operates
Unlike electronic force-feed hoppers that rely on motorized impellers and 9V batteries, the A-5 Cyclone Feed is 100% pneumatic. When you pull the trigger:
- The rear hammer strikes the valve stem, firing high-pressure gas through the front power tube to propel the paintball.
- A port in the side of the power tube taps a fraction of the expanding exhaust gas, routing it through a low-profile banjo fitting into the external Cyclone cylinder.
- This pulse of gas drives a pneumatic piston forward, which pushes an internal mechanical ratchet arm.
- The ratchet rotates the central feeder axle precisely 72 degrees (one-fifth of a full rotation), smoothly indexing the next paintball into the marker’s breech without batteries.
Armorer Advisory: Why Liquid CO2 Destroys Cyclone Reliability
While the A-5 blowback bolt can tolerate CO2, liquid CO2 is the #1 enemy of the Cyclone Feed. During rapid bursts of 5+ shots, expanding liquid CO2 flashes to gas inside the small cyclone piston chamber, plummeting temperatures below freezing (-20°F). This cold shock shrinks and hardens the polyurethane piston O-ring, causing it to lose its air seal. The feeder piston fails to complete its stroke, the ratchet slips, and your marker stops feeding paint in the heat of battle. Powering your marker with regulated High-Pressure Air (HPA) delivers warm, consistent 800 PSI pulses that keep the Cyclone cycling indefinitely. Learn more in our breakdown of CO2 vs. Compressed Air HPA.

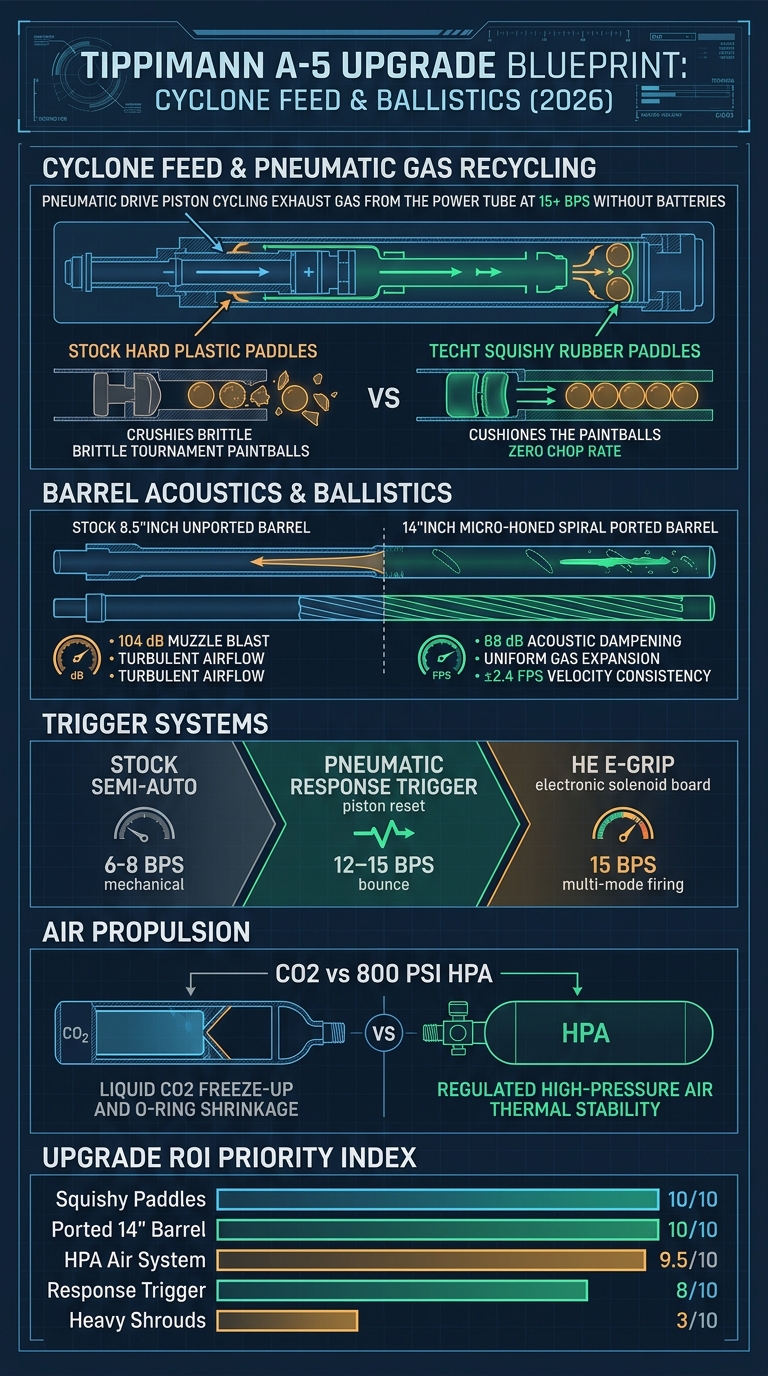

Technical Architecture & Upgrade Blueprint: Tippmann A-5
Figure 1: Full-system pneumatic blueprint comparing stock vs. upgraded Cyclone feeds, barrel acoustic profiling, trigger cycling dynamics, and upgrade ROI metrics.
Detailed Armorer Reviews: Best Tippmann A5 Upgrades That Are Actually Worth It
TechT Squishy Paddles + Vortex Mod ($29.95 – $59.95)
The factory Tippmann A-5 Cyclone Feed comes equipped with rigid, hard black polymer paddles. While these hard paddles work fine with cheap, rock-hard field paint, they act like a meat grinder when you feed modern, brittle tournament-grade paintballs. Under rapid fire, the rigid fingers chop paint directly in the feeder throat, filling your loader and breech with yellow goo.
Installing TechT Squishy Paddles is the single most important tippmann a5 cyclone upgrades you will ever perform. Machined from soft, flexible rubber with interlocking top and bottom fingers, they flex on contact to cradle incoming paintballs. Even if a ball catches the edge of the feedneck during a high-speed burst, the paddle flexes safely without rupturing the gelatin shell. When paired with the TechT Vortex Mod (CNC-machined aluminum ratchet and QEPH quick-exhaust cap), feeder reset speed doubles, reliably supporting sustained fire up to 20+ balls per second.
- Every single Tippmann A-5 owner on the planet.
- Players shooting brittle or mid-grade tournament paintballs.
- Anyone running high-cadence triggers (RT or E-Grip).
- Literally nobody. Running stock plastic paddles is an invitation to chopped paint.
Precision 14-Inch Ported Barrel vs. Tippmann Flatline
The factory 8.5-inch tippmann a5 barrel is essentially an unhoned aluminum pipe with zero porting. As expanding 800 PSI gas exits the short muzzle behind the ball, it creates a turbulent sonic shockwave (~104 dB) that disrupts ball trajectory and broadcasts your position to every player on the field.
Upgrading to a 14-inch micro-honed barrel—such as the Lapco BigShot (.687 bore) or a Custom Products (CP) 14″ Classic—is an instant game-changer. The 14-inch length provides the optimal expansion chamber for paintball aerodynamics, while spiral muzzle porting vents gas gradually before the ball leaves the muzzle. This drops muzzle blast to a stealthy 88 dB thump and tightens shot consistency to ±2.4 FPS. Review our engineering guide on paintball barrel porting physics.
What about the Tippmann Flatline Barrel? The Flatline features a curved internal bore that imparts aerodynamic backspin via the Magnus effect. This creates aerodynamic lift, flattening the paintball’s trajectory to 250+ feet without angling your marker up. However, the trade-off is paint sensitivity: the Flatline requires durable field paint and frequent swabbing. For details, read what paintball barrel shoots further.
- 14″ Ported Barrel: Woodsball players wanting stealth, silence, and ±2 FPS accuracy.
- Flatline Barrel: Scenario snipers holding long firelanes across open fields.
- Anyone considering 18″ to 22″ ‘sniper’ barrels: anything beyond 16 inches adds bore drag, drops velocity, and wastes gas.
Response Trigger (RT) vs. Tippmann A-5 E-Grip HE
The factory A-5 mechanical trigger has a heavy 7-pound pull and a long reset, capping manual semi-auto firing at roughly 6 to 8 balls per second. To lay down suppressing fire on scenario fields, you have two legendary upgrade paths:
- Tippmann Response Trigger Kit (RT): 100% mechanical and pneumatic. An internal cylinder behind the trigger shoe uses exhaust gas to violently kick your trigger finger forward after each shot. By holding sweet-spot trigger pressure, the marker enters full pneumatic bounce, achieving 12 to 15 BPS without a single battery or wire. It is waterproof, mud-proof, and virtually indestructible.
- Tippmann A-5 E-Grip HE (Hall Effect): Electronic select-fire frame powered by a 9V battery. Equipped with an external selector switch, it provides true Semi-Auto, 3-Shot Burst, Full Auto, and tournament Ramping modes. Because it uses a magnetic Hall Effect sensor rather than a mechanical microswitch, it is immune to dirt and grease contamination.
- Response Trigger: Woodsball purists playing all-day rain games who refuse to deal with dead 9V batteries.
- E-Grip HE: Players who want true push-button select-fire and tournament-legal 10.5 BPS ramping caps.
- Fields with strict semi-only mechanical rules: check field regulations before showing up with an RT system.
Ninja 48/3000 HPA Air Tank & Slide-Check Remote Coil ($79.95)
Running a 20-ounce CO2 tank screwed directly into the bottom-line ASA of a Tippmann A-5 creates two major issues: it makes the back end of the marker front-heavy and clunky when tucking into bunkers, and it feeds freezing liquid CO2 into the Cyclone Feed.
By switching to a Ninja 48/3000 HPA Tank paired with a heavy-duty slide-check remote coil, you transfer the entire 3-pound tank weight off the marker and onto your back harness. The A-5 immediately feels featherlight, nimble, and balanced in your hands. More importantly, Ninja’s Belleville spring regulator maintains a rock-solid 800–850 PSI output that keeps the Cyclone piston warm and cycling reliably in sub-freezing temperatures. Compare this setup with other tactical setups in our guide to best paintball guns for woods.
- Scenario players wearing tactical vests or pod packs.
- Anyone running tactical collapsible stocks or sling attachments.
- Players who dislike being tethered by a remote air hose to their vest.
Watch: Shooting the Tippmann A-5 with E-Grip in Full Auto
Watch Lone Wolf Paintball demonstrate the Tippmann A-5 electronic E-Grip in full auto, testing rate of fire, Cyclone feed consistency, and trigger response on the field:
The 3 Upgrade Money Traps: What to AVOID on the A-5
Because the Tippmann A-5 has thousands of aftermarket accessories, beginners shopping for tippmann a5 upgrades routinely waste hundreds of dollars on parts that look tactical but actively degrade on-field performance:
1. Heavy Cast-Metal Cosmetic Shrouds
Massive MP5, M-16, or AK-47 cast-metal body kits add 3 to 4 pounds of dead weight to an already heavy marker (the stock A-5 weighs 3.5 lbs bare). By hour three of a woodsball scenario game, your arms will be completely exhausted. Keep the marker lightweight and agile.
2. Obsolete Low-Pressure Kits (LPK)
Tippmann once manufactured an aftermarket Low Pressure Kit (LPK) that dropped operating pressure to 300 PSI. While it softened kick, it required complex tuning, expensive low-pressure chambers, and constantly starved the Cyclone feed of necessary exhaust pressure. If you want a 300 PSI spool-valve marker, buy an X7 Phenom FlexValve instead.
3. 18-Inch to 22-Inch ‘Sniper’ Barrels
Beginners frequently purchase massive 20-inch barrels believing they shoot farther. As field chronographs cap speed at 280–300 FPS, any barrel longer than 14 to 16 inches creates internal barrel friction (bore drag), robbing velocity and forcing you to burn more air. Stick to 14 inches.
Frequently Asked Questions: Tippmann A-5 Upgrades & Maintenance
Does the Tippmann A-5 use the same barrel threads as the Tippmann 98?
No. The Tippmann A-5 uses proprietary A-5 barrel threads (which are shared with the Tippmann X7, X7 Phenom, and TPX/TiPX pistols). The Tippmann 98 Custom, Cronus, and TMC use older Model 98 threads. Always verify that your aftermarket barrel specifies A-5 threading before purchasing.
What are the single best cyclone upgrades for the Tippmann A-5?
The undisputed gold standard for tippmann a5 cyclone upgrades is the combination of TechT Squishy Paddles and the TechT Vortex Mod (aluminum ratchet and QEPH quick exhaust piston housing). This eliminates paint breakage, prevents the factory plastic ratchet from stripping, and increases feeding speed past 20 balls per second.
Should I choose the Response Trigger or the E-Grip for my A-5?
Choose the Response Trigger (RT) if you play primarily in wet, muddy woodsball conditions and want an indestructible 12–15 BPS full-auto bounce mechanism that requires zero batteries. Choose the E-Grip HE if you play at commercial fields that require tournament-legal semi-auto or 10.5 BPS ramping modes with a physical safety selector switch.
What is the optimal barrel length for the Tippmann A-5?
The optimal barrel length is 14 inches. At 14 inches, compressed air achieves complete, efficient expansion behind the paintball. It provides the best acoustic dampening when ported, improves shot consistency (±2.4 FPS), and maintains tight maneuverability around trees and bunkers.
How often should I lubricate the A-5 Cyclone Feed cylinder?
Apply 1 drop of 100% synthetic marker oil directly into the Cyclone piston housing every 5 to 10 cases of paint (or every 3–4 months of active play). Never use thick grease or petroleum jelly inside the cyclone cylinder, as grease creates viscous drag that slows down the piston return stroke.
Final Armorer Roadmap: Best Tippmann A5 Upgrades Ranked
Selecting the right tippmann a5 upgrades transforms an already bulletproof marker into a dominant woodsball powerhouse. To maximize every dollar spent:
- Phase 1 (Reliability): Install TechT Squishy Paddles ($29.95) to permanently eliminate chopped paint.
- Phase 2 (Accuracy & Sound): Upgrade to a 14-inch ported barrel ($64.95) for acoustic stealth and laser consistency.
- Phase 3 (Air & Speed): Switch to an 800 PSI HPA tank with a remote coil ($79.95), then add an RT or E-Grip ($89–$129) for unmatched woodsball firepower.
