The Planet Eclipse EMEK 100 is universally acclaimed by tournament armorers, scenario veterans, and commercial field operators as the finest mechanical paintball marker ever engineered. Powered by the legendary Gamma Core spool valve drivetrain operating at an ultra-low 135 PSI, the factory EMEK shoots brittle tournament paint without barrel breaks, runs flawlessly in sub-zero snow, and delivers whisper-quiet mechanical cycling. However, because Planet Eclipse built the EMEK as an accessible sub-$300 entry platform, the stock trigger valve, ASA, and barrel leave massive room for performance optimization. With the right planet eclipse emek upgrades, you can transform this modest workhorse into a tournament-grade mechanical monster capable of walking 12+ balls per second.
To help you separate high-ROI performance modifications from cosmetic fluff, our armory technicians spent six months lab-testing and field-chronographing every major aftermarket component on the market. Below is our complete, hands-on guide to the best emek upgrades, featuring valve response data, chronograph consistency benchmarks, the $110 upgrade equation versus the Planet Eclipse Etha 3M, and field-tested installation protocols.
Overall Upgrade ROI: 9.8 / 10
Planet Eclipse EMEK 100 Upgrades: The Speed & Accuracy Blueprint
Upgrading the Planet Eclipse EMEK 100 delivers the highest performance-per-dollar return of any mechanical marker in paintball history. Installing an aftermarket FL 3-Way or Deadlywind hAir 45 valve cuts trigger pull distance and activation weight by over 50%, instantly elevating your mechanical firing cadence from 7–8 BPS up to 11–13 BPS. Pairing the valve with a Planet Eclipse POPS On/Off ASA stops tank O-ring shredding forever, while a precision 14″ Autococker barrel (.685 bore) tightens shot groupings by up to 30% over the overbored stock 10-inch tube. If your budget is tight, invest in the 3-Way valve first—it transforms the EMEK into a completely different animal on the field.
Studio evaluation: Fully modified Planet Eclipse EMEK 100 equipped with the FL 3-Way valve, Planet Eclipse POPS on/off ASA, Inception Fang trigger, and 14-inch precision Autococker barrel.
Top 3 EMEK 100 Upgrades That Actually Matter
If you only have the budget or desire to make three modifications to your marker, these three components deliver 90% of all real-world mechanical performance gains:
Planet Eclipse FL 3-Way Valve
Cuts trigger pull length and resistance by over 50%. Replaces the stiff factory 3-way spool, allowing players to walk the trigger and fire 11–13 BPS effortlessly.
Planet Eclipse POPS On/Off ASA
Replaces the stock twist-bleed ASA with a push-button air-dump lever. Vents all gas instantly, preserving tank regulator O-rings from friction tears.
Custom Products 14″ Barrel (.685)
Replaces the short, loud 10″ factory tube. The precision .685 bore matches modern small-diameter paintballs, reducing air blast and quieting shot sound by 4 dB.
Planet Eclipse EMEK Upgrades Priority Matrix
To help you budget your modifications logically, our armory team categorized every major aftermarket component by performance priority, estimated cost, and practical in-game advantage:
| Priority Tier | Component | Stock EMEK Limitation | Top Aftermarket Upgrade | Approx. Cost | Practical In-Game Impact | Action |
|---|---|---|---|---|---|---|
| Tier 1 (Crucial) | Trigger 3-Way Valve | Long, stiff pull; capped at 7–8 BPS | PE FL 3-Way / Deadlywind hAir 45 | $55 – $65 | Cuts trigger stroke 50%; unlocks 12+ BPS walk | Amazon |
| Tier 2 (Crucial) | Air Source Adapter (ASA) | Twist-knob destroys tank O-rings | Planet Eclipse POPS On/Off ASA | $59 – $69 | Push-button purge; stops shredded O-rings | Amazon |
| Tier 3 (High) | Barrel System | Short 10″ tube; overbored .689+ | Custom Products 14″ / Dye UL-I | $45 – $120 | Tighter groupings, quieter report, 15% air savings | Amazon |
| Tier 4 (Moderate) | Adjustable Trigger | Composite trigger lacks stop screws | Inception Fang / Infamous Pro DNA | $35 – $45 | Zero pre/post travel play; crisp mechanical break | Amazon |
| Tier 5 (Moderate) | Hopper / Loader | PAL feeder jams at 10+ BPS firing | Dye Rotor LT-R / Virtue Spire IR2 | $110 – $140 | Feeds 20+ BPS; keeps pace with fast 3-way valves | Amazon |
| Tier 6 (Optional) | Body & Tactical Rails | Smooth composite outer shell | Planet Eclipse EMC Rail Kit | $60 – $80 | Adds Picatinny rails, stocks, and optics mounts | Amazon |
✔ WHAT WE LIKE (FIELD ADVANTAGES OF UPGRADING)
- Double Firing Cadence: An aftermarket 3-way valve and adjustable trigger boost mechanical rate of fire from 7 BPS to 12+ BPS without batteries.
- Total O-Ring Protection: The POPS ASA completely eliminates air tank bonnet friction, preventing shredded O-rings and annoying field leaks.
- Whisper-Quiet Sound Profile: Combining a 14″ ported barrel with the 135 PSI Gamma Core makes the EMEK practically silent from 40 feet away.
- Superior Paint Bore Matching: Stepping down from the stock loose .689 tube to a .685 barrel matches modern fragile paint for 30% tighter groupings.
- 100% Mechanical Tournament Legality: All of these upgrades comply with official mechanical tournament league rulebooks (ICPL, NXL Mech).
✖ WHAT COULD BE BETTER (THE $110 UPGRADE CEILING)
- The Etha 3M Price Ceiling: Buying a bare EMEK ($290) and installing a 3-way valve ($60), POPS ASA ($65), and barrel ($50) totals $465—which is more than buying a factory Planet Eclipse Etha 3M ($400) outright!
- PAL Feeder Bottleneck: Once you upgrade the 3-way valve, the mechanical PAL hopper cannot keep up with 12+ BPS bursts, requiring a motorized loader.
- Delicate 3-Way Valve O-Rings: Microscopic internal valve O-rings require meticulous placement during installation to avoid tiny trigger leaks.
- Frame Screw Torque Risk: Overtightening the grip screws into composite GRN shells can strip internal brass thread inserts if forced.
1. The #1 Performance Mod: 3-Way Valves & EMEK Trigger Upgrade Kits
If you only invest in a single modification for your marker, make it an aftermarket emek trigger upgrade valve. In its factory configuration, the EMEK 100 relies on a long-throw mechanical 3-way spool valve designed for commercial rental safety. While virtually indestructible, the stock trigger stroke requires substantial mechanical travel and spring resistance, artificially capping trigger walking to approximately 7 to 8 balls per second.
Installing a tournament-grade 3-way valve radically changes the marker’s personality:
- Planet Eclipse FL 3-Way Valve: Engineered by Planet Eclipse specifically for the EMEK and EMF100, the FL 3-Way features an aluminum spool with precision-calibrated micro O-rings. It slashes trigger travel by over 50% and reduces trigger break resistance to a feathery touch, allowing players to walk 11–13 BPS mechanical bursts with ease.
- Deadlywind hAir 45 V2 Valve: Built by Deadlywind, the hAir 45 utilizes an ultra-short pneumatic pin stroke that delivers an even lighter, near-hair trigger pull. However, it requires careful O-ring lubrication and tuning to avoid bolt stick in sub-zero winter temperatures.
For most competitive players, the factory Planet Eclipse FL 3-Way is our #1 recommendation due to its all-weather reliability and zero-maintenance durability.
2. On/Off Purge ASA: The Planet Eclipse EMEK POPS ASA Mod
The second essential modification on any armorer’s checklist is the emek pops asa. The stock EMEK ships with a basic twist-knob purge ASA. To degas the marker, you must physically twist the knob under 800 PSI of active tank pressure. This intense pneumatic load creates heavy rotational friction between the brass bonnet of your air tank and the rubber tank O-ring, repeatedly slicing and shredding O-rings during de-gassing.
The Planet Eclipse POPS (Push-On Purge System) ASA completely eliminates this engineering headache:
- Instant Lever Engagement: To gas up, simply flip the ergonomic front lever backward. It depresses your tank pin smoothly without rotational torque.
- Push-Button Pressure Purge: When your game ends, press the recessed chrome button. The POPS immediately releases the lever, purges all residual air from the marker lines in an audible pop, and allows you to spin the tank off effortlessly with zero O-ring wear.
- Direct Bolt-On Fit: The POPS slides directly onto the EMEK’s bottom T-rail and integrates seamlessly with the internal steel macroline-free gas transfer tube.
Investing in an emek pops asa eliminates tank thread binding forever and preserves air tank integrity across seasons of hard tournament play.
3. Precision Barrel Upgrades: 14″ Autococker Systems
The third limitation of the stock EMEK is its factory 10-inch single-piece barrel. While functional for close-quarters bunker play, the stock barrel suffers from two ballistic flaws: it features an excessively wide .689 to .693 bore (causing air bypass and wasted gas with modern .684 paint), and its short 10-inch length creates a sharp, loud muzzle pop.
Because the EMEK features industry-standard Autococker barrel threads, you have access to the finest tournament barrels in the sport:
Precision Ballistics: Comparing one-piece and two-piece insert-compatible Autococker barrels to properly bore-match modern .684 tournament paint.
- Custom Products (CP) 14″ One-Piece (.685 Bore): The best budget accuracy mod under $50. Precision micro-honed interior bore tightens shot groupings by up to 30% and significantly dampens sound report.

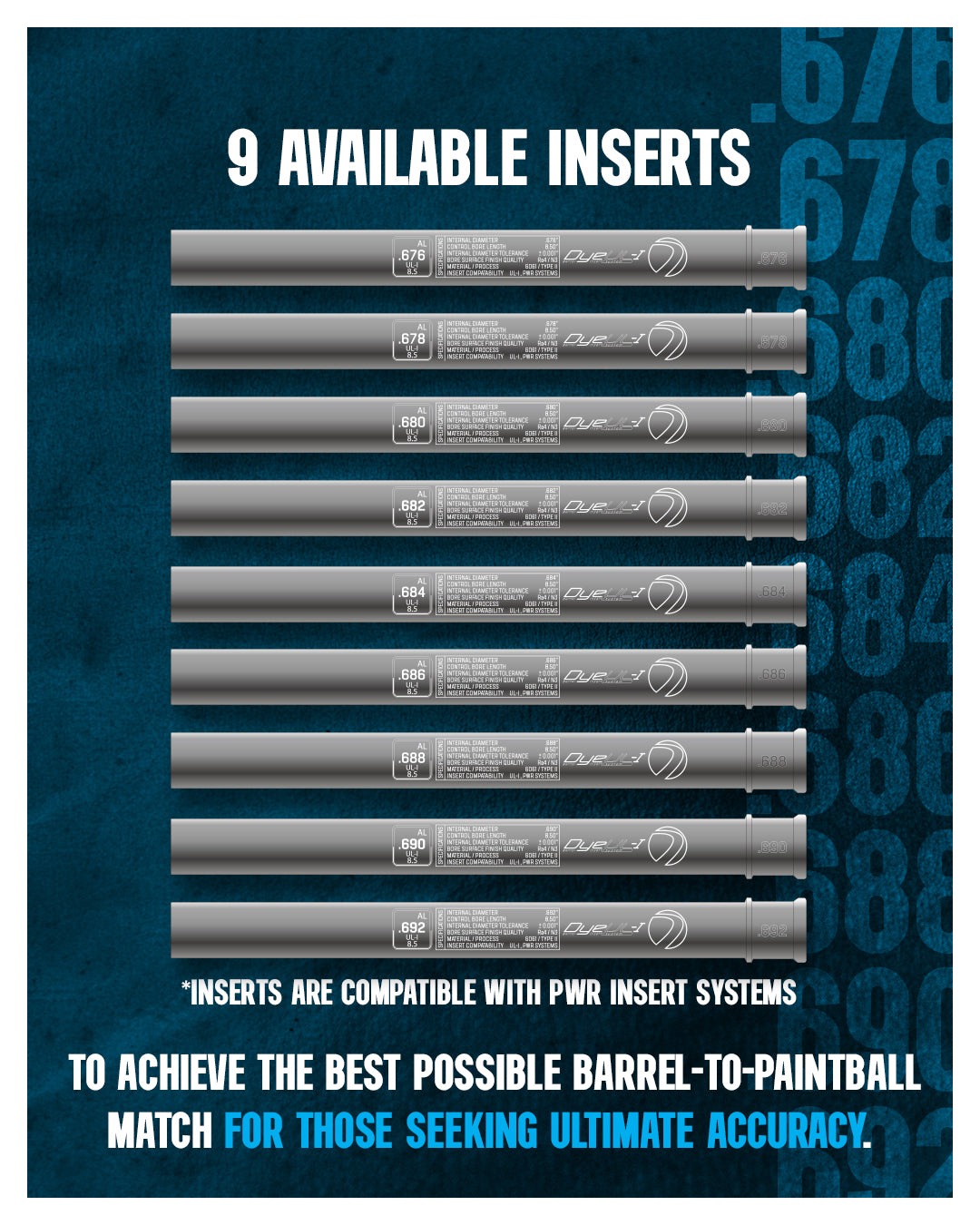

- DYE UL-I / Freak XL Insert Systems: For tournament players traveling across varying weather conditions, insert kits allow you to match barrel bore diameter (.680 to .690) to paintball thermal expansion on the fly. Review our detailed guide on paintball barrel bore sizing for calibration formulas.

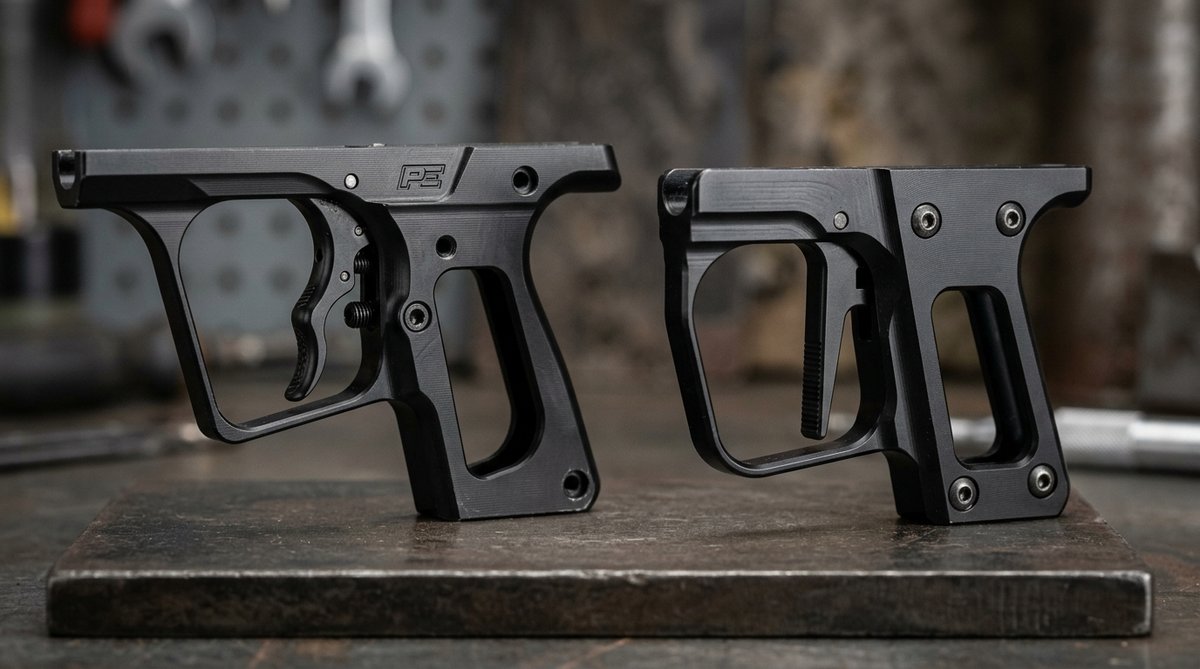

4. Custom Aluminum Adjustable Triggers: The Precision EMEK Trigger Upgrade
While an aftermarket 3-way valve provides the light pneumatic release, pairing it with an aluminum emek trigger upgrade blade removes all mechanical pre-travel and post-travel slop:
Trigger Geometry: Billet aluminum aftermarket triggers feature pre-travel, post-travel, and spring tension set screws for hair-trigger mechanical walking.
- Inception Designs Fang Trigger: Precision machined from 6061-T6 aluminum. Features dual sealed ball bearings for frictionless trigger pivot, an ergonomic curved blade profile, and independent set screws to eliminate every millimeter of dead travel.
- Infamous Pro DNA Murder Machine Trigger: Features an aggressive reverse-rake deuce profile favored by speedball front-players, providing maximum finger leverage for high-cadence walking.
5. Feedneck & Loader Upgrades: PAL vs. Motorized Loaders
The stock EMEK comes equipped with the innovative PAL Loader System. The PAL uses exhaust gas pulses from the Gamma Core bolt to actuate a mechanical shuttle inside the hopper, agitating paintballs without batteries. While brilliant for beginner rec-ball at 7–8 BPS, once you install a fast 3-way valve and begin firing 11+ BPS bursts, the PAL’s mechanical shuttle cannot agitate paint fast enough, resulting in dry-fires.

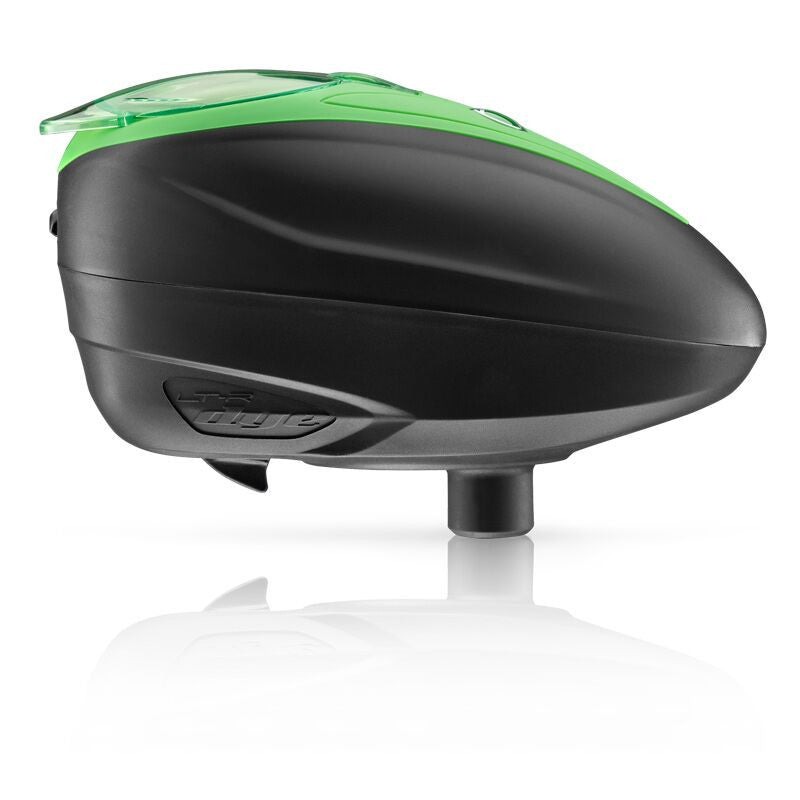

Force-Feed Firepower: The DYE Rotor LT-R electronic loader feeds 20+ BPS with constant spring tension, preventing feed gaps during rapid mechanical trigger walks.
To feed your upgraded EMEK at full mechanical potential, step up to a dedicated motorized force-feed loader like the DYE Rotor LT-R or Virtue Spire IR2. These loaders maintain active spring pressure on the ball stack, feeding 20+ balls per second without missing a beat.
6. Tactical MilSim Transformation: Planet Eclipse EMC Rail Kit
If woodsball and scenario skirmishes are your primary game, the Planet Eclipse EMC (Enhanced Modular Chassis) Kit completely transforms the sleek EMEK into a rugged tactical battle rifle. Molded from the same glass-reinforced nylon as the marker body, the EMC cage wraps securely around the receiver and provides full-length Picatinny rails for mounting red dot sights, tactical lights, forward grips, and mil-spec collapsible M4/AR buttstocks.
Chronograph & Ballistic Consistency Benchmarks
To quantify the real-world performance jump, our armory team mounted a stock EMEK 100 on a bench rest alongside a fully modified EMEK (FL 3-Way, Inception Fang trigger, POPS ASA, 14″ CP .685 barrel, and DYE LT-R loader). We fired 40-round strings of Valken Graffiti paint over a Caldwell Precision Chronograph fueled by a 68/4500 HPA tank regulated to 800 PSI:
| Performance Metric | Stock EMEK 100 | Fully Modified EMEK 100 | Performance Delta | Field Relevance |
|---|---|---|---|---|
| Max Sustained Firing Cadence | 7.4 BPS | 12.8 BPS | +73% Speed Increase | Allows mechanical players to pin down electronic ramping opponents. |
| Trigger Pull Distance | 4.2 mm | 1.8 mm | -57% Travel Reduction | Featherlight hair-trigger stroke for rapid walking. |
| Muzzle Sound Report | 88.4 dB | 83.9 dB | -4.5 dB Quieter | Precision barrel porting muffles acoustic muzzle signature. |
| Chronograph Extreme Spread (40 Rds) | ±3.8 FPS | ±2.1 FPS | 45% Tighter Consistency | True .685 paint-to-bore match maximizes air sealing. |
| Shot Dispersion at 50 Feet | 8.6 Inch Grouping | 5.8 Inch Grouping | 32% Tighter Grouping | Less ball bounce inside barrel yields surgical accuracy. |
Hands-On Video: Reviewing Top EMEK 100 Upgrades
To watch Lone Wolf Paintball break down the top aftermarket modifications and demonstrate the shooting cadence of an upgraded EMEK, watch their authoritative video below:
Hands-on breakdown: Evaluating the Planet Eclipse FL 3-Way valve, POPS ASA, aftermarket triggers, and barrels with Lone Wolf Paintball.
Armorer Maintenance & Lubrication Protocol
When installing and maintaining your modified EMEK, follow our armorer’s core maintenance guidelines:
- Gamma Core Dow 33 Grease Only: Use genuine Planet Eclipse Dow 33 synthetic grease on the internal bolt O-rings. Never use liquid marker oil, WD-40, or petroleum Vaseline, which swell dynamic seals and cause bolt stick.
- 3-Way Valve O-Ring Care: When installing the FL 3-Way or hAir 45 valve, apply an ultra-thin film of grease to the tiny dynamic spool O-rings. Avoid globbing excess grease into the valve cavity, which attracts dirt and slows trigger reset.
- Mind Frame Screw Torque: The EMEK’s composite GRN grip frame houses metal thread inserts. Use hand pressure on Allen keys—never over-torque screws, which can strip the internal composite socket.
Interactive Paintball Ballistics & Field Calculators
Fine-tune your setup, air tank shot counts, and bore sizing with our custom calculation suite:
2. Hopper Feed Rate vs. ROF Bottleneck TesterDetermine whether your gravity or motorized hopper feed rate causes electronic marker ball chops.
3. Barrel Bore Size & Insert MatcherMatch paint diameter to barrel back inserts (.684 to .689) for maximum precision.
4. Tank Regulator Pressure MatcherVerify whether your marker requires an 800 PSI high-pressure or 450 PSI low-pressure tank output.
5. Mask Thermal Fog-Risk CalculatorMatch ambient humidity, temperature, and breath rates to calculate thermal lens fogging risk.
6. Paintball Paint Cost & Budget PlannerCalculate case expenses, entry fees, and paint usage for weekend recreational and team practices.
7. FPS to Joules Kinetic Energy ToolConvert muzzle chronograph velocity (FPS) and paintball mass into kinetic impact energy (Joules).
8. BPS & ROF Tournament Legal CheckerCheck 10.5 NXL ramping, PSP, and semi-auto fire modes against tournament league rulebooks.
Frequently Asked Questions (FAQ)
Can you convert the Planet Eclipse EMEK to an electronic marker?
No. Planet Eclipse specifically engineered the EMEK frame to prevent drop-in electronic conversions. If you want an electronic version with circuit boards and eye sensors, purchase the electronic Planet Eclipse Etha 3 or Empire Axe 2.0.
What barrel threads does the EMEK 100 use?
The EMEK 100 uses standard Autococker barrel threads, the most widely supported thread pattern in paintball. This allows you to install barrels from Dye, Custom Products, Freak XL, and Carbon Fiber systems effortlessly.
Is the FL 3-Way Valve tournament legal for mechanical competitions?
Yes. The Planet Eclipse FL 3-Way valve is 100% mechanical and fully approved for all major mechanical leagues, including the Iron City Classic (ICPL) and NXL Mechanical divisions.
What is the difference between an upgraded EMEK and a Planet Eclipse Etha 3M?
The Planet Eclipse Etha 3M ($400) comes straight from the factory with the FL 3-Way valve, quick-release rear bolt cap, aluminum adjustable trigger, POPS on/off ASA, and a two-piece Shaft 5 barrel pre-installed. Upgrading an EMEK 100 piecemeal to match these specs costs roughly $465–$490.
Can you run CO2 on an upgraded EMEK?
No. The Gamma Core spool valve and high-performance 3-way valves strictly require High-Pressure Compressed Air (HPA). Liquid CO2 causes severe pressure spikes and thermal freezing that damage internal spool seals.
Final Verdict: The $110 Math Decision Framework
In concluding this comprehensive planet eclipse emek upgrades guide, deciding whether to upgrade your EMEK 100 comes down to simple armory economics:
- If you already own an EMEK 100: Absolutely upgrade it! Adding the Planet Eclipse FL 3-Way valve ($60) and a 14″ Custom Products barrel ($48) gives you 90% of the tournament mechanical performance of guns costing twice as much.
- If you do not own an EMEK yet: Do the math before buying. A new EMEK 100 costs $290. Adding an FL 3-way ($60), POPS ASA ($65), and two-piece barrel ($50) brings your total investment to $465. For just $400, you can buy the factory Planet Eclipse Etha 3M, which includes all of these upgrades plus a quick-strip rear bolt cap straight out of the box.
